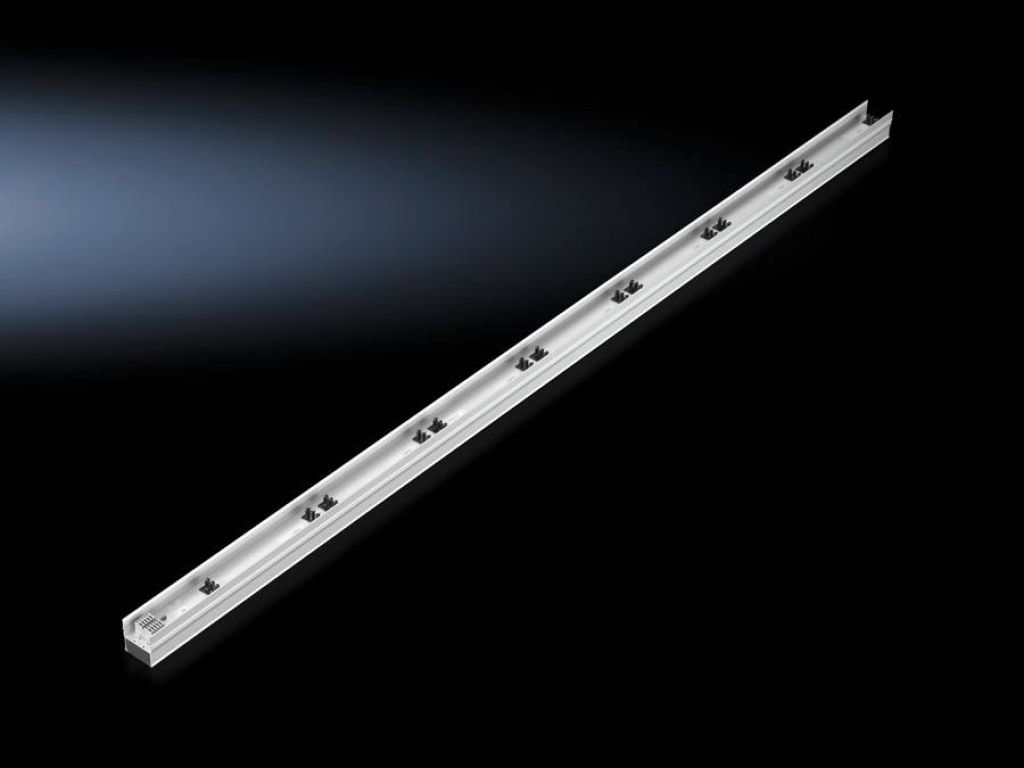

Toitesiin 230V 6-le moodulile 2000mm kõrgus 3x32A kaabel 3m

Design:	With 3 m connection cable (connector type CEE/EN 60 309)
Description:	The modular system facilitates basic configuration of the racks, thanks to a vertical support rail with single-/3-phase infeed. The various socket modules to supply the active components may be snap-fitted into the support rail. This can even be done whilst the system is operational, because the support section is shock hazard-protected.
Benefits:	Modules may be retrofitted whilst operational.
Technical specifications:	Each plug-in module picks off a phase on the support rail, either from infeed or from the redundant infeed, depending on the direction of connection. Depending on the design, single-/3-phase construction with a maximum current of 2 x (3 x 16 A/32 A). 3-phase redundant infeed supported. The redundant circuit is completely separate from the 3 phases of the support rail. Modules may be equipped with integral overcurrent protection, so that only the affected module is deactivated in the event of an excessively high current. The other modules remain operational.
Material:	Aluminium section, natural anodised
Module slots (max.):	6
To fit:	Enclosure type: TS 8 Enclosure type: TS IT Height: 2000 mm
Infeeds:	Qty.: 1 Phases per infeed: 3~
Length of connection cable:	3 m
Ambient conditions:	Operating temperature: +5°C...+45°C Storage temperature: -20°C...+60°C Ambient humidity (non-condensing): 5 % - 95 %
Circuit-breaker 16 A (qty.):	6
Type of electrical connection:	CEE
Rated current (max.):	32 A

550,82 € (ilma km-ta)

Weight
- 1.16 kg
- 52 kg
- 6.5 kg

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

Rittal_7856323_Instructions_3_925.pdf Rittal_7856323_Technical_system_catalogue_3_6433.pdf

Manufacturer Part Number: 7856323
Tootekood: EE-100-187-653

Spetsifikatsioon

Weight

1.16 kg, 52 kg, 6.5 kg
