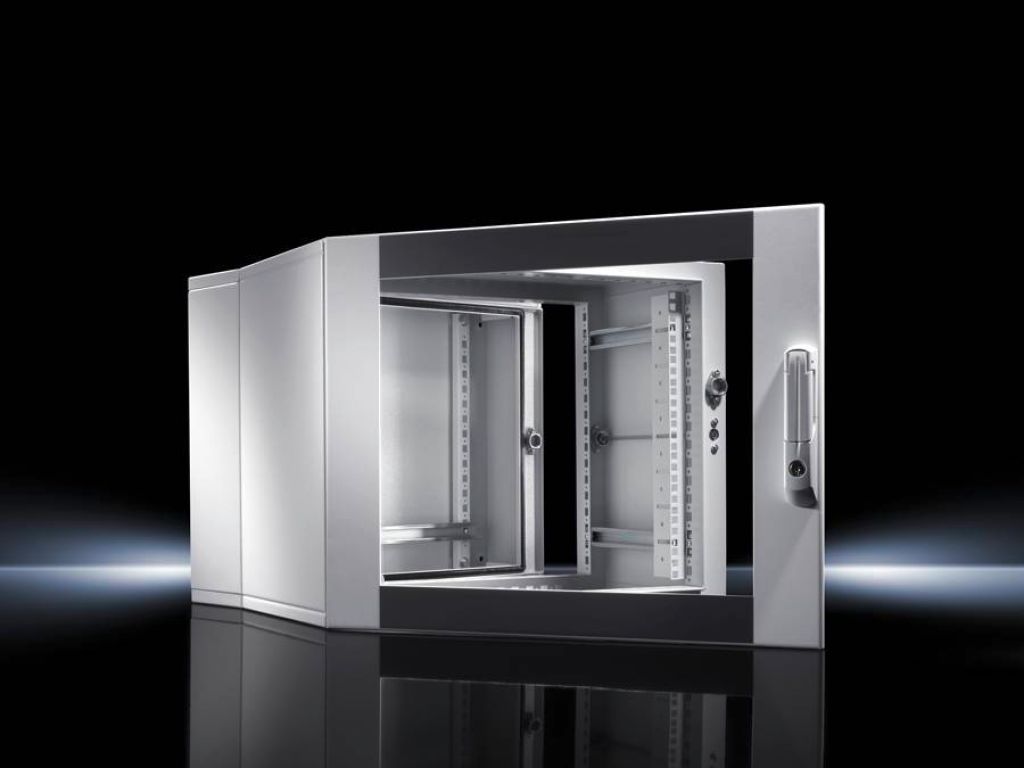

Seinakapp EL 3-osaline 345x600x473mm k,l,s 6U klaasuks IP55

Design:	with punched rails and mounting angles, depth-variable
Description:	Wall-mounted enclosure with optimum accessibility due to hinged part.
Material:	Wall and hinged part: Sheet steel, 1.5 mm Viewing window: Single-pane safety glass, 3 mm
Surface finish:	Powder-coated
Colour:	Wall and hinged part: RAL 7035 Glazed door: RAL 7035/7015 (slate grey)
Protection category IP to IEC 60 529:	IP 55
Supply includes:	Wall section with solid gland plate, top and bottom, two vertical mounting rails and C rail, horizontal, for cable clamping Hinged part with 25 mm pitch pattern of holes in the front and rear frame, and two 482.6 mm (19") mounting angles at the front, infinitely depth-variable 4 wall mounting brackets 10 mm Designer glazed door 1 double-kit key no. 5 Mini-comfort handle Security lock 3524 E
Basic material:	Sheet steel
Dimensions:	Width: 600 mm Height: 345 mm Units: 6 U Depth: 473 mm
Depth hinged part:	316 mm
Installation depth:	420 mm
Clearances:	Clearance width: 502 mm Clearance height: 282 mm
Wall section:	Depth: 135 mm
Load capacity:	Hinged part, static (max.): 300 N

626,21 € (ilma km-ta)

Color
- Gray
Rack depth
- 473
Rack height
- 345
Rack type
- 19 inch
Rack unit u
- 6u
Rack width
- 600
Suitable for outside
- Indoor only
Weight
- 28 kg

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

Rittal_7706135_Technical_details_3_2844.pdf

Manufacturer Part Number: 7706135
Tootekood: EE-100-187-639

Spetsifikatsioon

Color	Gray
Rack depth	473
Rack height	345
Rack type	19 inch
Rack unit u	6u
Rack width	600
Suitable for outside	Indoor only
Weight	28 kg
