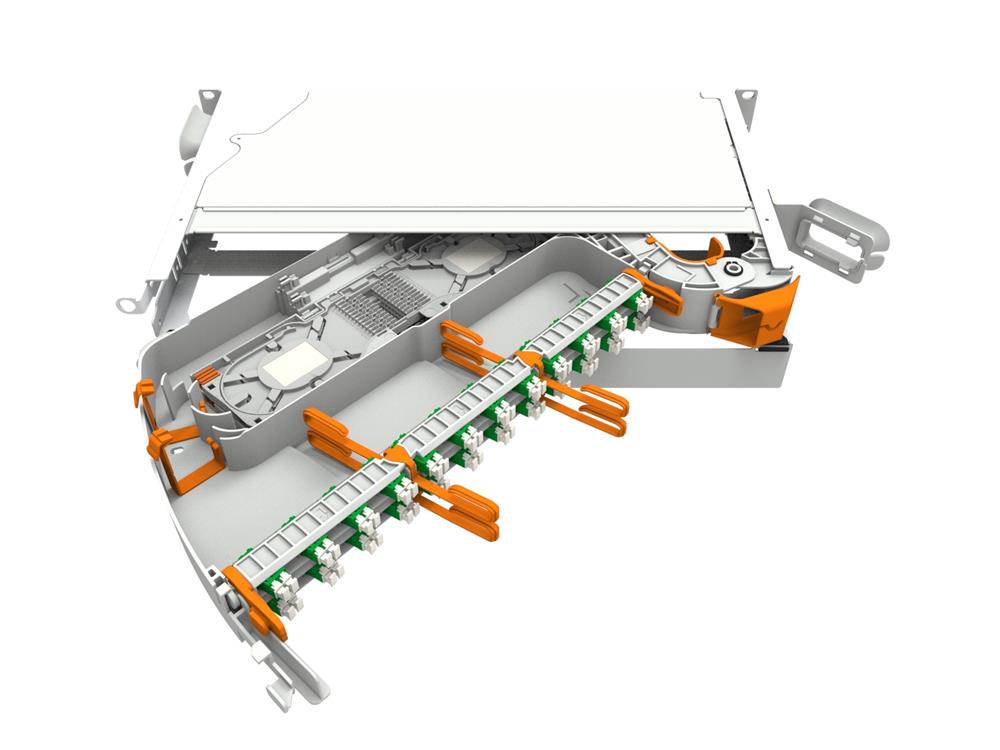

FO paneel 19 tolli, 24 kiudu, smouv, 24xLC/APC G.657.A1 MFPS-KHD-P-SIL2-024

Product Series	MFPS
Product Type	Fiber patch/splice panel
Regional Availability	EMEA

Construction Materials
Fiber Mode	Singlemode
Fiber Type	G.657.A1
Finish	Powder coated
Material Type	Ethylene-propylene (EP) \| Polyethylene terephthalate (PET)

Dimensions
Depth	279.91 mm \| 11.02 in
Height	44.45 mm \| 1.75 in
Width	482.60 mm \| 19.00 in

Environmental Specifications
Flammability Rating	UL 94 V-0
Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature	-20 °C to +85 °C (-4 °F to +176 °F)

General Specifications
Rack Units	1.0
Shelf Movement	Hinged
Color	Gray
Color, front	Gray
Door Type, front	Compression latch \| Hinged
Functionality	Patching \| Splicing
Includes	Mounting hardware
Interface Feature, front	APC
Interface, front	LC
Package Quantity	1
Pigtail Assembly Type	12-fiber, stranded
Pigtails Included, quantity	2
Rack Type	EIA 19 in
Splicing Type	Heat shrink, single fiber fusion
Total Ports, quantity	24
Transmission Standards	ETSI EN 300 019-1-3 \| IEC 61300-3-30

Mechanical Specifications
Cable Exit Location	Side
Patch Cord Entry Location	Front, right side

Optical Performance
Performance Grade	Standard C grade

334,66 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

MFPS 2HU Shelve Installation Instruction.pdf MFPS_Brochure_BR-111070-EN.pdf

Manufacturer Part Number: 760241787
Tootekood: EE-100-173-804

Spetsifikatsioon

Weight

1 kg
