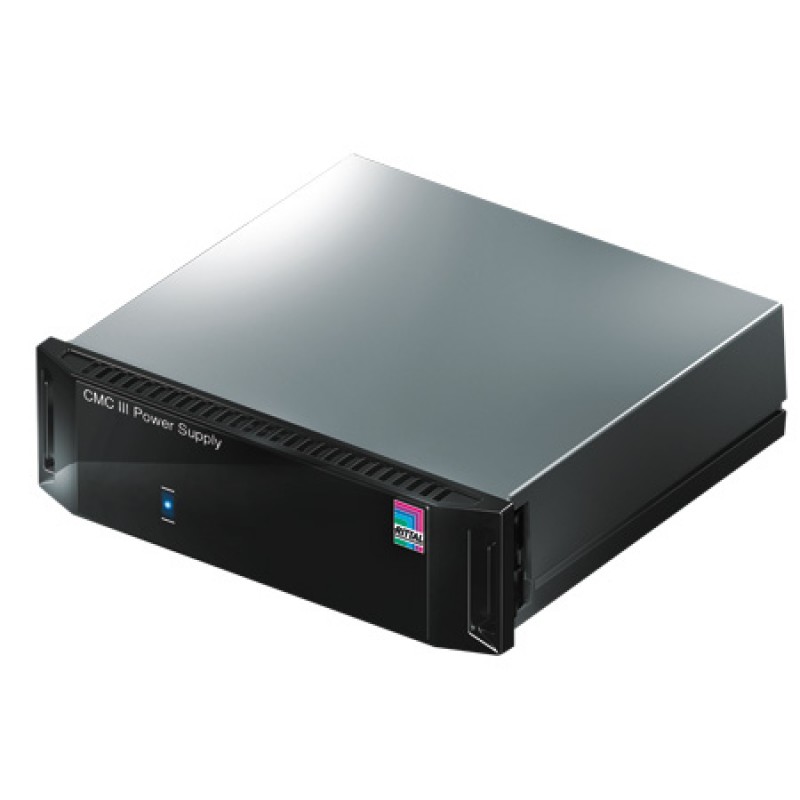

Toiteplokk CMCIII

Description:	For CMC III Processing Unit, CMC III Processing Unit Compact and Fan Control System.
Applications:	CMC III Processing Unit CMC III Processing Unit Compact CMC III CAN bus unit CMC III CAN bus DRC CMC III door control system
Material:	Plastic
Colour:	Front: RAL 9005 Enclosure: RAL 7035
Supply includes:	Power pack Instructions Top-hat rail assembly kit Assembly parts
Suitable for CMC components:	CMC III Processing Unit CMC III Processing Unit Compact CMC III CAN bus interface for two CMC II unit components
Dimensions:	Width: 138 mm Height: 40 mm Depth: 132 mm
Rated operating voltage:	100 V - 240 V, 50 Hz/60 Hz
Installation dimensions:	Installation depth: 120 mm Build depth: 12 mm
Operating temperature:	Operation (environment): +0°C...+40°C
Ambient humidity (non-condensing):	Operation (environment): 5 % - 95 %
Power pack:	Output voltage: 24 V DC
Output current (max.):	2.5 A
Connections:	Input: IEC 320 connector C14

143,44 € (ilma km-ta)

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

Rittal_7030060_Brief_instruction_3_931.pdf

Manufacturer Part Number: 7030060
Tootekood: EE-100-187-592

Weight

1.7 kg
