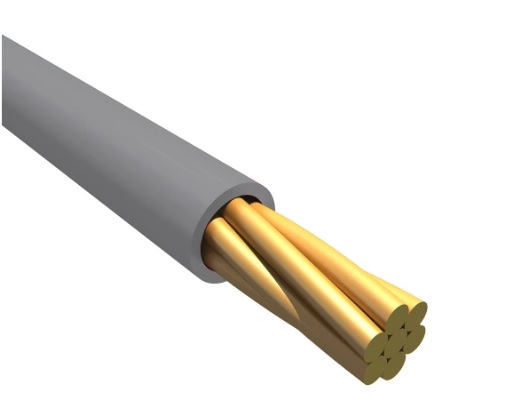

Alpha Wire 300 V PVC montaazijuhe
Tinatatud vaskjuhe sobib kasutamiseks paljudes erinevates rakendustes
Juhe on kergesti käsitletav ja kooritav.
Saadaolevad pikkused on 100ft (30,5m) ja 1000ft (305m).
Vastab standarditele UL AWM 1007, 1581, 1569 VW-1, CSA AWM I A/B FT1, CSA TR-64 FT1
Attribute |
Value |
|
Cross Sectional Area |
0.33 mm² |
|
Sheath Colour | |
|
American Wire Gauge |
22 AWG |
|
Core Strands |
7/0.25 mm |
|
Insulation Material |
MPPE |
|
Outer Diameter |
1.24mm |
|
Length | |
|
Voltage Rating |
600 V |
|
Conductor Material |
Copper |
|
Wire Style |
UL11028 |
|
Maximum Operating Temperature |
+105°C |
|
Minimum Operating Temperature |
-40°C |
|
Shield Type |
Unshielded |
|
Series |
EcoWire |
|
Standards Met |
CE, CSA, UL |
|
Insulation Wall Thickness |
0.3mm |
