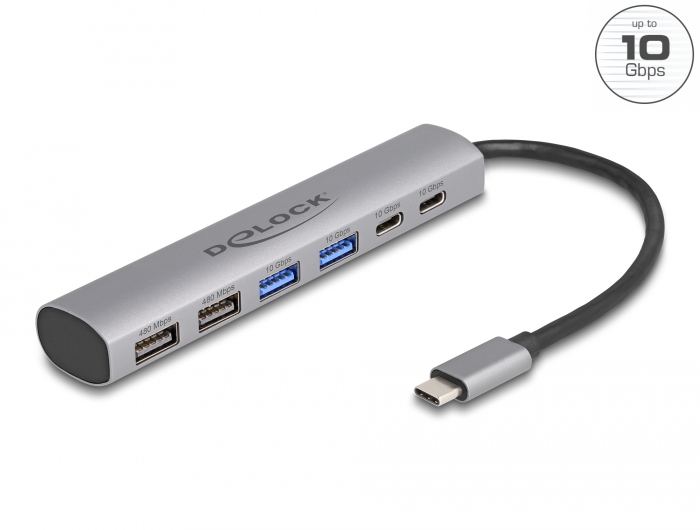

The USB hub by Delock can be connected via USB Type-C™ interface to a PC or laptop. It has four USB Type-A connectors as well as two USB Type-C™ connectors. Different USB devices such as docking stations, card reader, external enclosure etc. can be connected.
Supports USB 10 Gbps
A maximum data transfer rate of up to 10 Gbps can be reached.
Small sturdy helper
Due to its small dimensions and its sturdy housing, this Delock Hub is particularly suitable for travelling. It can simply be packed into the bag together with the laptop or tablet and used as needed.
Technical details
Connectors:
1 x USB 10 Gbps USB Type-C™ male
2 x USB 10 Gbps USB Type-C™ female
2 x USB 10 Gbps Type-A female
2 x USB 2.0 Type-A female
Chipset: Fresco Logic FL7002, FL5500, VIA VL162
Data transfer rate up to 10 Gbps
Plug & Play
Housing material: aluminium
Colour: grey
Cable length without connectors: ca. 15 cm
Dimensions (LxWxH): ca. 125 x 25 x 17 mm
System requirements
Chrome OS
Linux Kernel 5.15 or above
Mac OS 12.4 or above
Windows 8.1/8.1-64/10/10-64/11
Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 port or
Device with a free USB4™ port or with a free Thunderbolt™ 4 port
Package content
USB hub
User manual
Function• Plug & Play
Supported operating system• Chrome OS
• Windows 10 32-Bit
• Windows 10 64-Bit
• Windows 8.1 32-Bit
• Windows 8.1 64-Bit
• Windows 11
• Mac OS 12.4 oder höher
• Linux Kernel 5.15 or above
Interface
Connector 1• 1 x USB 10 Gbps USB Type-C™ male
Connector 2• 2 x USB 10 Gbps USB Type-C™ female
connector 3• 2 x USB 10 Gbps Type-A female
connector 4• 2 x USB 2.0 Type-A female
Technical characteristics
Data transfer rate• 10 Gbps
Physical characteristics
Material• Aluminium
Length• 125 mm
Width• 25 mm
Height• 17 mm
Colour• grey
Cable length without connectors• 15 cm
