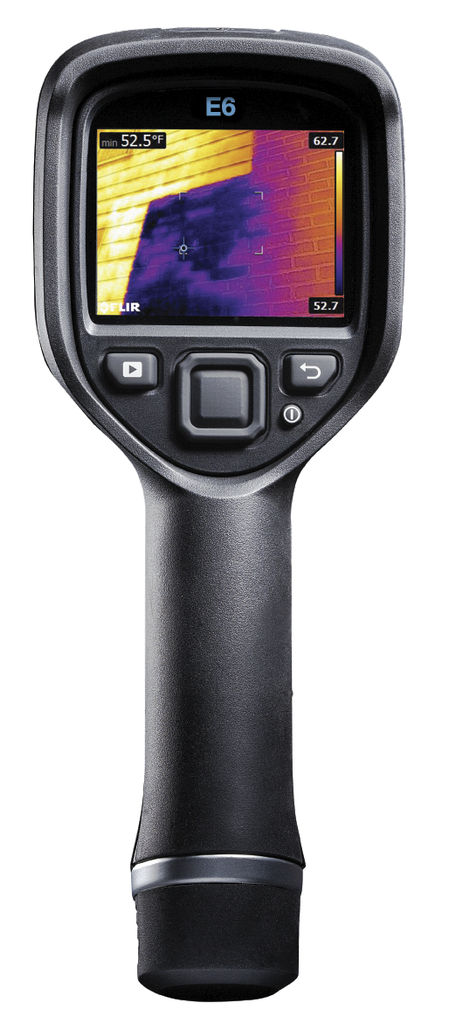

Termokaamera Flir E6-XT, 9Hz, MSX, –20°C to +550°C, 240 × 180

Detector Type

Uncooled microbolometer

IR Resolution

240 × 180 pixels

List of Contents

•Infrared camera •Hard transport case •Battery (inside camera) •USB cable •Power supply/charger with EU, UK, US and Australian plugs •Printed documentation

Packaging Size

385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)

Set-up Commands

Local adaptation of units, language, date and time formats

Spectral Range

7.5–13 µm

COMPLIANCE & CERTIFICATIONS

Certifications

UL, CSA, CE, PSE and CCC

CONNECTIONS & COMMUNICATIONS

AC Operation

AC adapter, 90–260 VAC input, 5 VDC output to camera

Interface

USB Micro: Data transfer to and from PC and Mac device

WiFi

•Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm

ENVIRONMENTAL

EMC

•WEEE 2012/19/EC •RoHs 2011/65/EC •C-Tick •EN 61000-6-3 •EN 61000-6-2 •FCC 47 CFR Part 15 Class B

Humidity (Operating and Storage)

IEC 60068-2-30/24 h 95% relative humidity

Operating Temperature Range

–15°C to 50°C (+5°F to 122°F)

Radio Spectrum

•Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm

Shock

25 g (IEC 60068-2-27)

Storage Temperature Range

–40°C to 70°C (–40°F to 158°F)

Vibration

2 g (IEC 60068-2-6)

Emissivity table/correction

Emissivity table of predefined materials/variable from 0.1 to 1.0

Encapsulation/Drop

IP 54 (IEC 60529)/2m (6.6 ft.)

IMAGING & OPTICAL

Camera size (L x W x H)

244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)

Camera weight incl battery

0.575 kg (1.27 lb.)

Color

Black and gray

Color palettes

Black & white, iron, and rainbow

f-number

1.5

Field of view (FOV)

45° × 34°

Focus

Focus free

Image Adjustment

Automatic adjust/lock image

Image Frequency

9 Hz

Image Modes

Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.

Minimum Focus Distance

0.5 m (1.6 ft.)

Multi Spectral Dynamic Imaging (MSX)

IR image enhanced with visible camera detail

Picture-in-Picture

IR area on visual image

Spatial resolution (IFOV)

3.4 mrad

Digital Camera Resolution/FOV

640 × 480/55° × 43°

MEASUREMENT & ANALYSIS

Accuracy

±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)

Isotherm

Above alarm, below alarm

Object Temperature Range

–20°C to 550°C (-4°F to 1022°F) in two ranges

Reflected apparent temperature correction

Automatic, based on input of reflected temperature

Spot Meter

Center spot; box with min./max.

Thermal Sensitivity/NETD

<0.06°C (0.11°F) / <60 mK

Spotmeter and Area

Center spot; box with min./max.

METER DATA

Display

3.0 in. 320 × 240 color LCD

POWER

Charging system

Battery is charged inside the camera or in specific charger.

Charging Time

2.5 hours to 90% capacity in camera. 2 hours in charger.

Power Management

Automatic shut-down

Battery type & operating time

Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use
