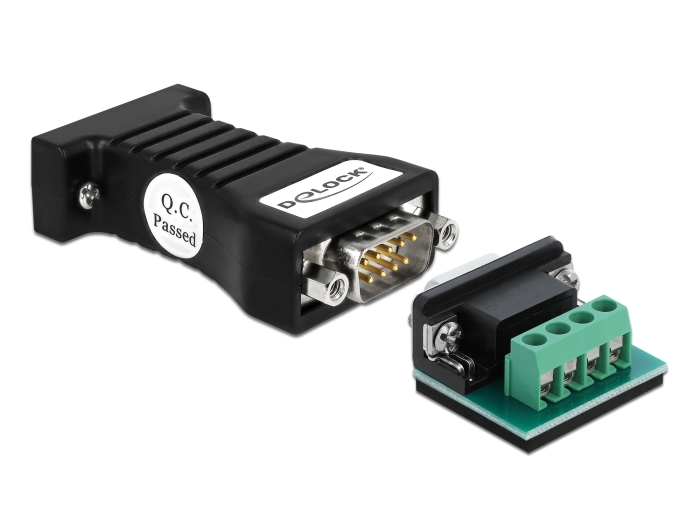

Delocki RS-232-RS-485-konverter sobib kõikidele jadaseadmetele, nt masinate juhtimisseadmetele, välibussisüsteemidele, mõõteriistadele, arvutitele, printeritele jne. Taseme konverterit saab kasutada kahe DB9-ühenduse vahelise ühendusena ilma täiendava toiteallikata.
Function
Plug & Play
Auto RTS Control
Specification
RS-232 (EIA / TIA)
RS-422 / RS-485 (EIA / TIA)
Supported operating system
OS independent, no driver installation necessary
Protection
Input overvoltage protection
ESD (Electrostatic Discharge)
600 W Peak Pulse Power

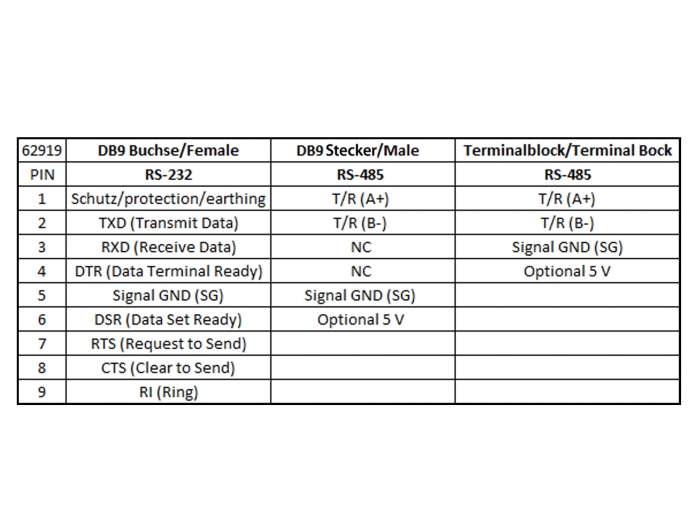

Interface
Connector 1
1 x serial RS-232 DB9 female
Connector 2
1 x Serial RS-485 DB9 male
Technical characteristics
Data transfer rate
300 bps - 115.2 Kbps
Operating temperature
-40 °C ~ 85 °C
Humidity
5 ~ 95 %
Data transmission
asynchronous
Half duplex
Voltage supply
RS-232 Bus Power TXD, RTS or DTR
Physical characteristics
Housing material
Plastic
Pin finishing
gold-plated
Screw type
#4-40 UNC
Length
63 mm
Width
33 mm
Height
17 mm
Surge Protection
±15 kV ESD Human Body Model (HBM)
