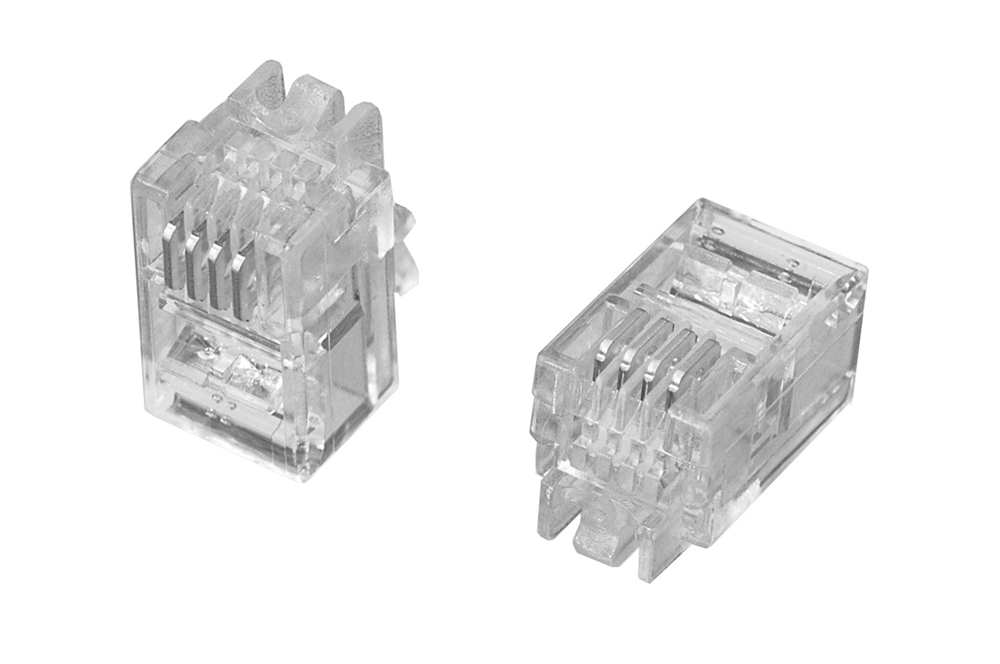

Modularpistik RJ9 Cat3 4/4kontaktiga -telefonitorule

Portfolio	CommScope®
Product Type	Modular plug
Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America

Dimensions
Compatible Cable Diameter, maximum	4.83 mm \| 0.19 in
Compatible Cable Diameter, minimum	2.29 mm \| 0.09 in
Compatible Insulated Conductor Diameter, maximum	0.990 mm \| 0.039 in
Compatible Insulated Conductor Diameter, minimum	0.860 mm \| 0.034 in

Electrical Specifications
ANSI/TIA Category	3
Current Rating, maximum	0.75 A
Insulation Resistance, minimum	500 mOhm
Safety Voltage Rating	150 Vac

Environmental Specifications
Operating Temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Relative Humidity	Up to 93%, non-condensing
Safety Standard	UL 1863

General Specifications
Cable Type	Flat oval, unshielded
Interface	RJ9
Package Quantity	500
Packaging Type	Bag \| Box \| Carton
Positions/Loaded Contacts	4/4

Mechanical Specifications
Conductor Gauge, solid	26–24 AWG
Conductor Gauge, stranded	26–24 AWG
Conductor Type	Solid \| Stranded
Contact Base Material	Phosphor bronze
Contact Plating Material	Gold
Contact Plating Thickness	1.27 µm
Material Type	Glass filled polycarbonate
Plug Insertion Life, minimum	750 times
Termination Type	IDC

0,28 € (ilma km-ta)

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

6-641334-2_MP-44U-F-5.pdf commscope.pdf document (1).pdf

Manufacturer Part Number: 6-641334-2
Tootekood: EE-100-173-841

Weight

0.0006 kg
