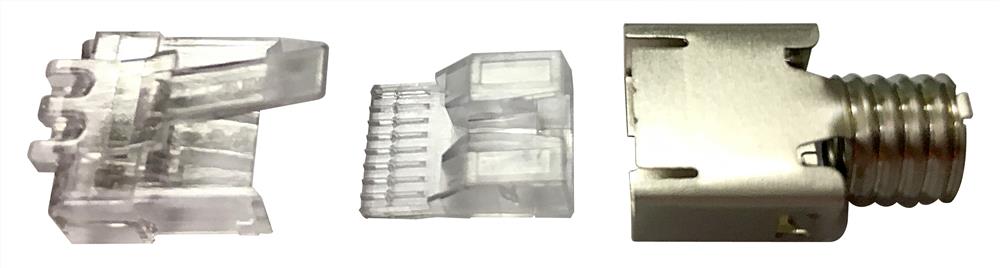

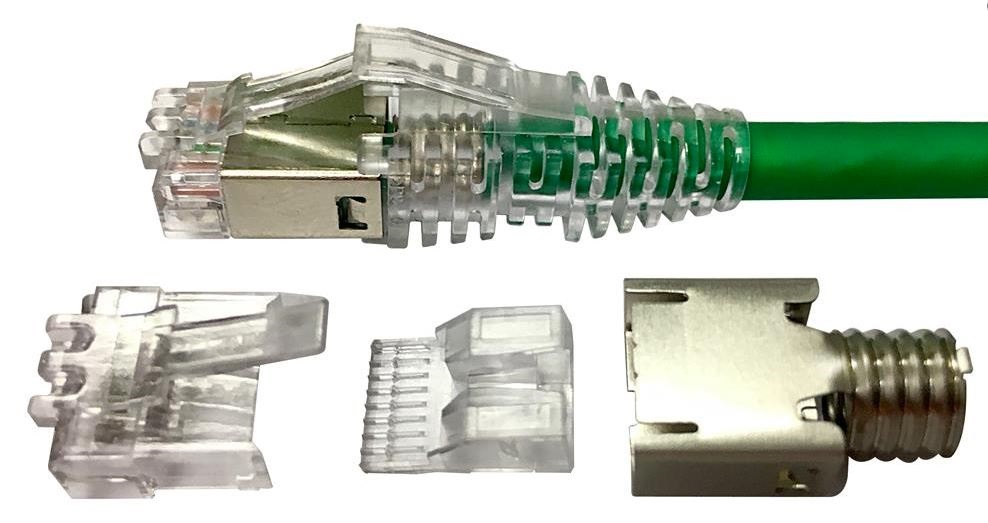

Modularpistik RJ45 Cat6 ühekiulisele/mitmekiulisele kaablile varjestatud/varjestamata 26-23 AWG D: 5.7-7.0mm

Portfolio	NETCONNECT®
Product Type	Modular plug
Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America

Dimensions
Compatible Cable Diameter, maximum	7.00 mm \| 0.28 in
Compatible Cable Diameter, minimum	5.70 mm \| 0.22 in
Compatible Insulated Conductor Diameter, maximum	1.090 mm \| 0.043 in
Compatible Insulated Conductor Diameter, minimum	0.890 mm \| 0.035 in

Electrical Specifications
ANSI/TIA Category	6
Insulation Resistance, minimum	500 mOhm

Environmental Specifications
Operating Temperature	-40 °C to +60 °C (-40 °F to +140 °F)
Safety Standard	UL 1863

General Specifications
Cable Type	Round, shielded
Interface	RJ45
Package Quantity	500
Packaging Type	Bag \| Box \| Carton
Positions/Loaded Contacts	8/8

Mechanical Specifications
Conductor Gauge, solid	26–23 AWG
Conductor Gauge, stranded	26–23 AWG
Conductor Type	Solid \| Stranded
Contact Base Material	Phosphor bronze
Contact Plating Material	Gold
Contact Plating Thickness	1.27 µm
Material Type	Glass filled polycarbonate
Plug Insertion Life, minimum	750 times
Plug Shield Base Material	Stainless steel
Plug Shield Plating Material	Nickel
Termination Type	IDC

1,00 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

6-2111989-2_MP-6S-C-5[1].pdf Application Specification.pdf Report.pdf

Manufacturer Part Number: 6-2111989-2
Tootekood: EE-100-169-603

Spetsifikatsioon

Weight

0.003 kg
