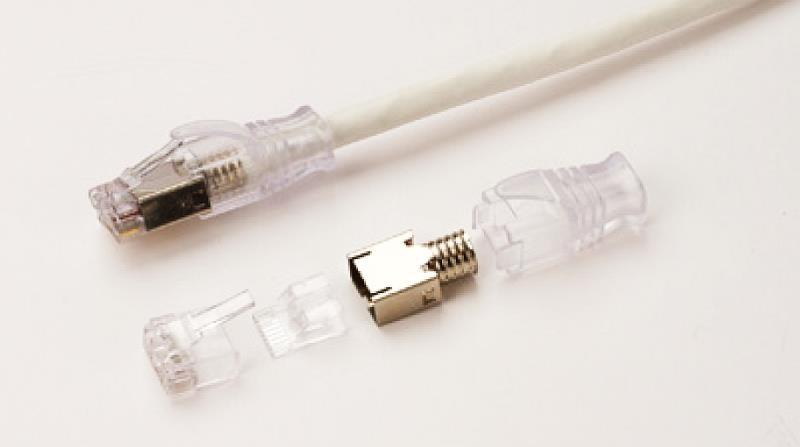

Modularpistik RJ45 Cat6 ühekiulisele/mitmekiulisele kaablile varjestatud/varjestamata 26-23 AWG D: 5.1-6.0mm

Modularpistik RJ45 Cat6 ühekiulisele/mitmekiulisele kaablile varjestatud/varjestamata 26-23 AWG D: 5.1-6.0mm

Product Classification
Portfolio	NETCONNECT®
Product Type	Modular plug
Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America

Body Features
Conductor Type	Solid \| Stranded
Shield Material	Stainless steel
Shield Plating Material	Nickel

Configuration Features
Number of Positions	8
Keyed	No

Contact Features
Contact Base Material	Phosphor bronze
Contact Mating Area Plating Material	Gold
Contact Mating Area Plating Thickness	50.00 µin \| 1.27 µm
Number of Contacts Loaded	8

Dimensions
Cable Jacket Outside Diameter Range	0.201–0.236 in \| 5.1–6.0 mm
Conductor Wire Size	26–23 AWG
Insulated Conductor Outside Diameter	0.035–0.043 in \| 0.89–1.09 mm

Housing Features
Housing Material	Glass filled polycarbonate

Industry Standards
UL Flammability Rating	UL 1863

Packaging Features
Packaging Quantity	500

Product Type Features
Cable Type	Round, shielded
Performance Category	Category 6
Connector Style	Plug
Jack Type	RJ45
Latch Style	Standard
Shielded	Yes

Termination Features
Termination Method to Wire/Cable	Insulation Displacement Crimp (IDC)

Regulatory Compliance/Certifications

Agency	Classification
RoHS 2011/65/EU	Compliant

0,80 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

ENG_CD_1375204_H_pdf_1375204-c_drw.pdf MP-6S-B-5_6-2111979-2.pdf commscope.pdf document (1).pdf

Manufacturer Part Number: 6-2111979-2
Tootekood: EE-100-169-551

Spetsifikatsioon

Weight

0.01 kg
