CAT7 võrgukaabel välitungimustele, S/FTP (PiMF), must
(OFC) CU, AWG 23/1 (solid), PE UV-kindel kaablikest
Need kaablid sobivad ideaalselt kasutamiseks ja paigaldamiseks õues, näiteks aias, telkimisel, hoonete fassaadidel, valvekaamerate ühendamiseks ja sarnasteks rakendusteks. Kaablikest on vastupidav ilmastiku- ja UV -kiirgusele.
-
non-terminated data-/installation cable for processing and installation with LSA connection technology for Home-/outdoor usage
-
Inner conductor made of oxygen-free copper (OFC)
-

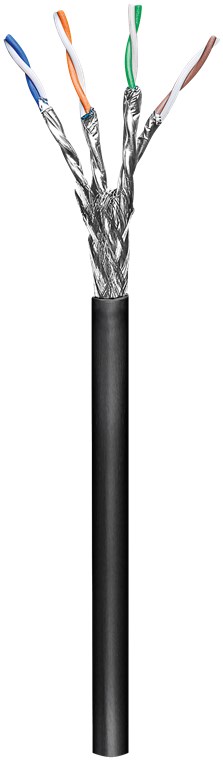

double shielded twisted-pair LAN cable
-
pairs screening: PIMF (pairs in metal foil) + outer shield: braiding
-
UV-resistant outer material for outdoor installation
-
suitable for Power over Ethernet (PoE, PoE+, UPoE and 4PPoE) and HDBaseT
-
10 Gigabit (10/100/1000/10000 Mbit) network suitable
Cable
-
Cable sheath diameter (approx.) 7.7 mm
-
Shielding class S/FTP (PiMF)
-
Specification CAT 7
-
Inner conductor material OFC (99,9% oxygen-free copper)
-
Material cable sheath PE
-
AWG 23/1 (solid)
-
Meter scaling yes
-
Number of shieldings 2 x
-
Type 1, shielding foil (alu) PiMF
-
Type 2, shielding braid (copper) overall shield
-
Cable type round cable
Signal transmission
-
max. bandwidth 600 MHz
-
max. transmission rate 10 Gbit/s
-
Impedance 100 Ω
General
-
Packaging type Cable Reel
-
Consumption Unit 1 pc. cable reel
-
Fire class (CPR) according to DIN EN 13501-6 Fca
-
Cable length 305 m
-
Color black
-
Markings CE, FCA_CPR
-
Operating temperature from -20 °C
-
Operating temperature up to 75 °C
