Moodul ioThinx 4500 seeriale, 4 AO, 0 to 20 mA/4 to 20 mA, 0-10V, -20 kuni 60°C

I/O-moodulid hõlmavad DI/O, AI/O, releed ja muud tüüpi I/O-d.
Toitemoodulid süsteemi toitesisendite ja välitoitesisendite jaoks.
Lihtne tööriistavaba paigaldamine ja eemaldamine
Sisseehitatud LED-indikaatorid IO-kanalite jaoks
Lai töötemperatuurivahemik: -40 kuni 75 °C (-40 kuni 167 °F)

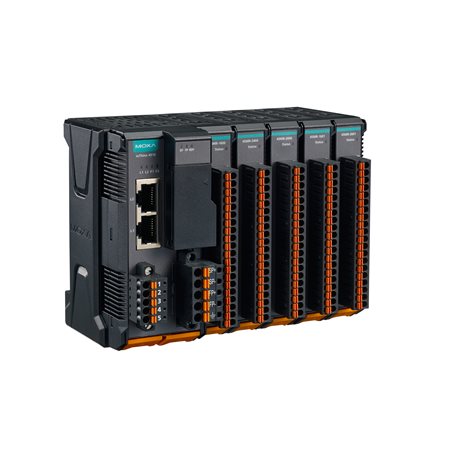

Klassi I jao 2 jao 2 ja ATEX tsooni 2 sertifikaadidMoxa ioThinx 4500 seeria (45MR) moodulid on saadaval DI/O, AI, releede, RTD ja muude I/O-tüüpidega, mis annab kasutajatele laias valikus võimalusi ja võimaldab neil valida oma sihtrakendusele kõige paremini sobiva I/O-kombinatsiooni. Tänu ainulaadsele mehaanilisele konstruktsioonile on riistvara paigaldamine ja eemaldamine lihtne ilma tööriistadeta, mis vähendab oluliselt moodulite seadistamiseks ja vahetamiseks kuluvat aega.
Lihtne tööriistavaba paigaldamine ja eemaldamineioThinx 4500-seeria seadmetel on ainulaadne mehaaniline disain, mis vähendab paigaldamiseks ja eemaldamiseks kuluvat aega. Tegelikult ei ole kruvikeerajat ega muid tööriistu vaja ühegi riistvara paigaldamise osa jaoks, sealhulgas seadme paigaldamiseks DIN-riba külge, samuti juhtmestiku ühendamiseks nii side- kui ka I/O-signaalide kogumiseks. Peale selle ei ole tööriistu vaja ka ioThinxi eemaldamiseks DIN-riba küljest. Ka kõigi moodulite eemaldamine DIN-riba küljest on lihtne, kasutades lukustus- ja vabastussammast.

Digital Input Channels
45MR-1600: 16
45MR-1601: 16
45MR-2606: 8
Digital Output Channels
45MR-2600: 16
45MR-2601: 16
45MR-2606: 8
Analog Input Channels
45MR-3800: 8
45MR-3810: 8
Relay Channels
45MR-2404: 4
Analog Output Channels
45MR-4420: 4
RTD Channels
45MR-6600: 6
Thermocouple Channels
45MR-6810: 8
System Power Input Channels
45MR-7210: 1
Field Power Input Channels
45MR-7210: 1
Field Potential Output Channels
45MR-7820: 8
Isolation
3k VDC or 2k Vrms

Connector
Spring-type Euroblock terminal
Sensor Type
Dry contact
Wet contact (NPN or PNP)
I/O Mode
45MR-1600/1601: DI or event counter (only supports the first 4 channels)
45MR-2606: DI or event counter (only supports the first 2 channels)
Dry Contact
On: short to FP+/FP-
Off: open
Wet Contact (DI to FP-)
On: 10 to 30 VDC
Off: 0 to 3 VDC
Wet Contact (DI to FP+)
On: 10 to 30 VDC
Off: 0 to 3 VDC
Counter Frequency
1 kHz
Digital Filtering Time Interval
Software configurable

Connector
Spring-type Euroblock terminal
I/O Type
45MR-2600: Sink
45MR-2601/2606: Source
I/O Mode
45MR-2600/2601: DO or pulse output (only supports the first 4 channels)
45MR-2606: DO or pulse output (only supports the first 2 channels)
External Power
12/24 VDC
Pulse Output Frequency
1 kHz
Over-Voltage Protection
45 VDC
Over-Temperature Shutdown
175°C (typical), 150°C (min.)
Current Rating
500 mA per channel

Connector
Spring-type Euroblock terminal
Type
Form A (N.O.) power relay
I/O Mode
DO
Contact Current Rating
Resistive load: 2 A @ 30 VDC
Resistive load: 2 A @ 250 VAC
Relay On/Off Time
10 ms (max.)
Initial Insulation Resistance
1000 mega-ohms (min.) @ 500 VDC
Mechanical Endurance
5,000,000 operations
Electrical Endurance
45MR-2404 Models: 50,000 operations @ 2 A resistive load
Contact Resistance
100 milli-ohms (max.)

Connector
Spring-type Euroblock terminal
I/O Mode
Voltage/Current
I/O Type
Differential
Resolution
16 bits
Input Range
45MR-3800: 0 to 20 mA, 4 to 20 mA, 4 to 20 mA (burnout detection)
45MR-3810: 0 to 10 VDC or -10 to 10 VDC
Over-Voltage Protection
-25 to +30 VDC (power on)
-35 to +35 VDC (power off)
Accuracy
±0.1% FSR @ 25°C
±0.3% FSR @ -40 and 75°C
Sampling Rate
All channels: 100 samples/sec
Per channel: 12.5 samples/sec
Single channel: 100 samples/sec
Input Impedance
45MR-3800: 120 ohms
45MR-3810: 10 mega-ohms (min.)

Connector
Spring-type Euroblock terminal
I/O Mode
Voltage/Current
Output Range
0 to 10 VDC
0 to 20 mA
4 to 20 mA
Resolution
12-bit
Accuracy
±0.1% FSR @ 25°C
±0.3% FSR @ -40 to 75°C
Load (Current Mode)
Internal power: 500 ohms (max.)
Load (Voltage Mode)
1000 ohms (min.)

Connector
Spring-type Euroblock terminal
Sensor Type
PT50, PT100, PT200, PT500 (-200 to 850°C)
PT1000 (-200 to 350°C)
JPT100, JPT200, JPT500 (-200 to 640°C)
JPT1000 (-200 to 350°C)
NI100, NI200, NI500 (-60 to 250°C)
NI1000 (-60 to 150°C)
NI120 (-80 to 260°C)
Resistance Type
310, 620, 1250, and 2200 ohms
Input Connection
2- or 3-wire
Sampling Rate
All channels: 12 samples/sec
Per channel: 2 samples/sec
Resolution
0.1°C or 0.1 ohms
Accuracy
±0.1% FSR @ 25°C
±0.3% FSR @ -40 and 75°C
Input Impedance
625 kilo-ohms (min.)

Connector
Spring-type Euroblock terminal
Sensor Type
J, K, T, E, R, S, B, N
Millivolt Type
±19.532 mV
±39.062 mV
±78.126 mV
Resolution
16 bits
Millivolt Accuracy
±0.1% FSR @ 25°C
±0.3% FSR @ -40 and 75°C
Sampling Rate
All channels: 12 samples/sec
Per channel: 1.5 samples/sec
Input Impedance
1 mega-ohms (min.)

Power Connector
Spring-type Euroblock terminal
No. of Power Inputs
1
Input Voltage
12 to 48 VDC
Output Current
1 A (max.)
Power Consumption
800 mA @ 12 VDC
Over-Voltage Protection
55 VDC
Over-Current Protection
1 A @ 25°C

Power Connector
Spring-type Euroblock terminal
No. of Power Inputs
1
Input Voltage
12/24 VDC
Output Current
2 A (max.)
Over-Current Protection
2.5 A @ 25°C
Over-Voltage Protection
33 VDC
Potential Output Mode
45MR-7820: 0 VDC, 12/24 VDC

System Power
45MR-1600: 59.4 mA @ 3.3 VDC
45MR-1601: 59.4 mA @ 3.3 VDC
45MR-2404: 44 mA @ 3.3 VDC
45MR-2600: 57.2 mA @ 3.3 VDC
45MR-2601: 63.8 mA @ 3.3 VDC
45MR-2606: 62.7 mA @ 3.3 VDC
45MR-3800: 197.3 mA @ 3.3 VDC
45MR-3810: 187 mA @ 3.3 VDC
45MR-4420: 44 mA @ 3.3 VDC
45MR-6600: 131.7 mA @ 3.3 VDC
45MR-6810: 148.1 mA @ 3.3 VDC
45MR-7210: 45m A @ 24 VDC
Field Power
45MR-1600: 19.3 mA @ 12 VDC, 25.3 mA @ 24 VDC
45MR-1601: 19.3 mA @ 12 VDC, 25.3 mA @ 24 VDC
45MR-2404: 31.2 mA @ 12 VDC, 24.7 mA @ 24 VDC
45MR-2606: 15.4 mA @ 12 VDC, 18.7 mA @ 24 VDC
45MR-4420: 220.2 mA @ 12 VDC, 122.3 mA @ 24 VDC

Housing
Plastic
Dimensions
19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)
Weight
45MR-1600: 77 g (0.17 lb)
45MR-1601: 77.6 g (0.171 lb)
45MR-2404: 88.4 g (0.195 lb)
45MR-2600: 77.4 g (0.171 lb)
45MR-2601: 77 g (0.17 lb)
45MR-2606: 77.4 g (0.171 lb)
45MR-3800: 79.8 g (0.176 lb)
45MR-3810: 79 g (0.175 lb)
45MR-4420: 79 g (0.175 lb)
45MR-6600: 78.7 g (0.174 lb)
45MR-6810: 78.4 g (0.173 lb)
45MR-7210: 77 g (0.17 lb)
45MR-7820: 73.6 g (0.163 lb)
Installation
DIN-rail mounting
Strip Length
I/O cable, 9 to 10 mm
Wiring
45MR-2404: 18 AWG
45MR-7210: 12 to 18 AWG
45MR-2600/45MR-2601/45MR-2606: 18 to 22 AWG
All Other 45MR Models: 18 to 24 AWG

Operating Temperature
Standard Models: -20 to 60°C (-4 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Altitude
Up to 4000 meters

EMC
EN 55032/35
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
Shock
IEC 60068-2-27
Vibration
IEC 60068-2-6
Safety
UL 61010-2-201
Hazardous Locations
ATEX, Class I Division 2

Green Product
RoHS, CRoHS, WEEE

Time
45MR-1600: 661,247 hrs
45MR-1601: 661,247 hrs
45MR-2404: 1,955,805 hrs
45MR-2600: 647,334 hrs
45MR-2601: 660,179 hrs
45MR-2606: 638,652 hrs
45MR-3800: 2,085,426 hrs
45MR-3810: 2,478,459 hrs
45MR-4420: 1,450,453 hrs
45MR-6600: 2,291,755 hrs
45MR-6810: 1,649,892 hrs
45MR-7210: 2,550,077 hrs
45MR-7820: 256,886,914 hrs
Standards
Telcordia SR332

Warranty Period
All models except 45MR-2404: 5 years
45MR-2404: 2 years
