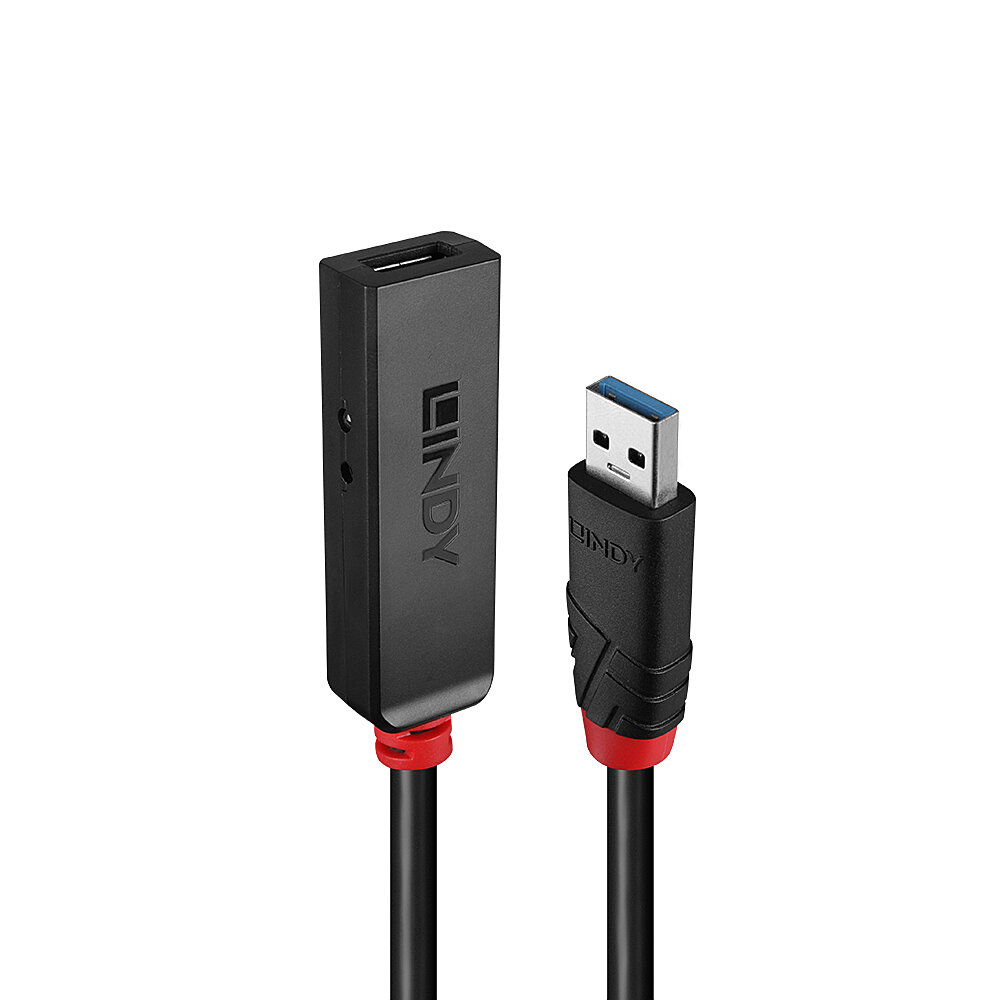

8 metre USB 3.0 Active Extension Repeater Lead
Supports transfer rates up to 5Gbps
For even greater distances simply connect up to 5 cables in series
USB Power Adapter cable included
2 year warranty8 meetri pikkune USB 3.0 aktiivne pikendusjuhtme korduskaabel
Toetab ülekandekiirusi kuni 5Gbps
Veelgi suuremate vahemaade saavutamiseks ühendage lihtsalt kuni 5 kaablit järjestikku
USB toiteadapteri kaabel kaasas
2-aastane garantii
Lindy USB 3.0 aktiivne pikenduskaabel kasutab sisseehitatud aktiivset elektroonikat, et pikendada USB 3.0 seadme kaabli pikkust täiendavalt 8 m võrra, toetades samal ajal jätkuvalt andmeedastuskiirust kuni 5 Gbit/s. Tänu USB A isas- ja USB A emasühendusele võimaldab see A-tüüpi seadmeid, näiteks salvestusseadmeid, veebikaameraid ja muid A-tüüpi seadmeid ühendada pikema vahemaa tagant arvutite, sülearvutite ja tahvelarvutitega, tagades samal ajal paindliku paigutuse.
Kuni 5 sellist USB 3.0 Active Extensions Slim pikenduskaablit saab omavahel ühendada. Lisaks saab nende USB 3.0 Active Extensions Slim kaablite eri pikkusi omavahel kombineerida maksimaalselt 5. Ainus erand on 15 m pikkune versioon nr 43404: kuna sellel on 2 kiibikomplekti, saab sellega kombineerida maksimaalselt 3 muud USB 3.0 Active Extensions Slim kaablit.
Lindy USB 3.0 Active Extension Slim saab toite USB-bussi kaudu, kuid sellel on ka alalisvoolu pesa, et ühendada toiteallikas suure võimsusvajadusega seadmete jaoks või kui soovite ühendada mitu kaablit järjestikku.
Lindy USB 3.0 aktiivne pikenduskaabel ühildub kõigi A-tüüpi USB-ga varustatud arvutitega. Kaabli ainulaadne ja õhuke disain võimaldab paigaldada kaablit kitsastesse ruumidesse - see on eelis teiste aktiivsete USB-juhtide ees, mis kasutavad mahukaid pistikuid. Tänu plug and play-funktsioonile saab seda pikenduskaablit paigaldada kiiresti ja minimaalse vaevaga, mis on ideaalne nii professionaalsetele kui ka esmakasutajatele.
Teave USB 3.0, 3.1 ja 3.2 kohta
USB 3.0, USB 3.1 ja USB 3.2 arvutid, kaablid ja seadmed ühilduvad omavahel, kui kasutatakse kas USB Type A või USB Type C host-liidest.
USB 3.0, USB 3.1 Gen 1 ja USB 3.2 Gen 1 toetavad kõik andmeedastuskiirust kuni 5 Gbps.
USB 3.1 Gen 2 ja USB 3.2 Gen 2 toetavad mõlemad andmeedastuskiirust kuni 10 Gbit/s.
The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 8m whilst continuing to support data transfer rates of up to 5Gbps. With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning.
Up to 5 of these USB 3.0 Active Extensions Slim extension cables can be chained together. In addition, a maximum of 5 of the different cable lengths of these USB 3.0 Active Extensions Slim can be combined with each other. The only exception is the 15m version No. 43404: as it has 2 chipsets, a maximum of 3 other USB 3.0 Active Extensions Slim can be combined with it.
The Lindy USB 3.0 Active Extension Slim is supplied with power via the USB bus, but also has a DC socket for connecting a power supply unit for devices with high power requirements or if you want to connect several cables in series.
The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. The cable's unique and slim design allows installation in narrow surroundings - an advantage over other active USB leads which use bulky connectors. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.
Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Connectors
Connector A: USB Type A Male
Connector B: USB Type A Female
Power: 2.5/0.7mm DC Connector
Housing Material: PVC
Connector Plating: Nickel plated
Pin Construction: Copper
Pin Plating: Gold
Dimensions (approx.) WxDxH:
USB A Male: 41.1x16.5x9.5mm (1.61x0.64x0.37in)
USB A Female: 67.5x22x13.5mm (2.65x0.86x0.53in)
Cable Construction
Length: 8m (25.26ft)
Standard: USB 3.2 / 3.1 Gen 1 / 3.0
Colour: Black
Type: Round
Jacket Diameter: 7.3mm (0.28in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 24AWG+24AWG+20AWG
Shielding: 85% Tinned Copper
Specifications
Supported Bandwidth: 5 Gbps
Nominal Attenuation: <23.0Db@2.5GHz (USB 3.0), <5.8Db@200MHz (USB 2.0)
Minimum Bend Radius: 80mm (3.14in)
Operating Temperature: 0°C to 40°C (32°F - 104°F)
Storage Temperature: -10°C to 60°C (14°F - 140°F)
Transmission Medium: Twisted Pair
Transmission Technology: USB 3.2 / 3.1 Gen 1 / 3.0
Miscellaneous
Packaging Type: Polybag
Packaging Dimensions: 236x255mm (9.29x10.04in)
Net Weight: 0.66kg (1.46lb)
Gross Weight: 0.71kg (1.57lb)
Warranty (Years): 2
Product Compliance: CE, FCC, RoHS & REACH; CP65
Packaging Content
8m USB 3.0 Active Extension Slim
1.5m USB 2.0 Type A to 2.5mm DC Cable
Purchasing Information
No.: 43402
EAN: 4002888434027
This product is also available in other lengths
43400 - 3m (9.84ft)
43401 - 5m (16.4ft)
43402 - 8m (26.25ft)
43403 - 10m (32.81ft)
43404 - 15m (49.21ft)
