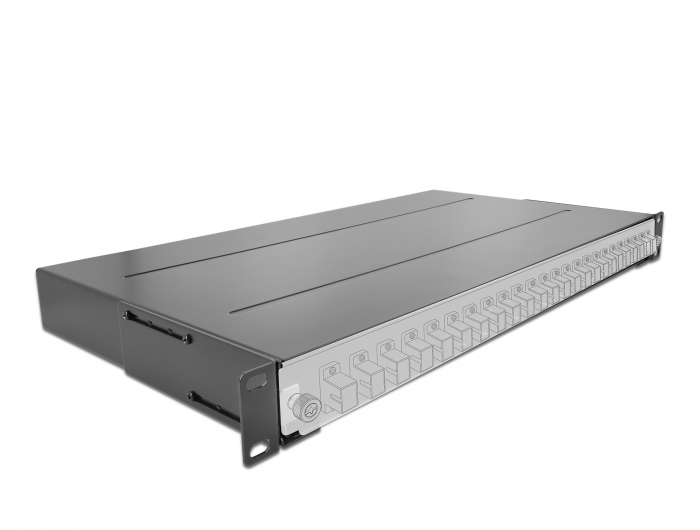

This splice box by Delock can be mounted in a 19″ rack. The cassette is extendable, so that it is possible to work on both sides of the couplers without removing the cover.
A wide selection of matching front panels with pre-assembled fibre optic couplers is available as accessory, from SC Simplex to LC Quad
Specification
• For mounting in 19″ racks, 1U
• For 96 fibers

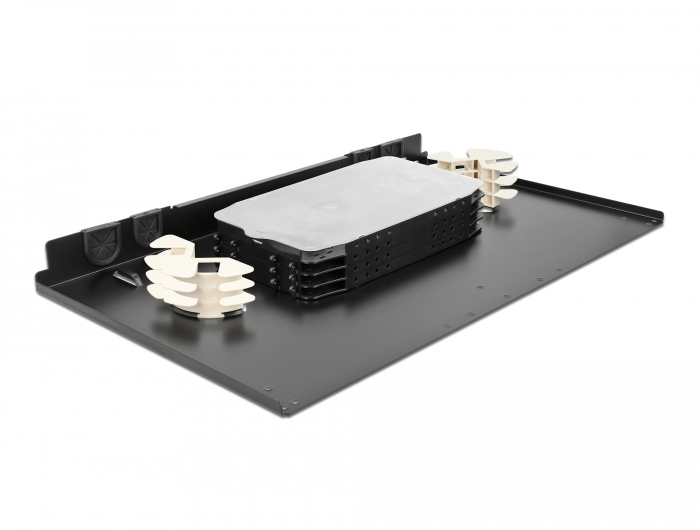

• Extendable tray, 45° angled
• Lockable with knurled screws
• Cable support bar
• 4 rear cable entries
• Operating temperature: -20 °C ~ 70 °C
• Housing colour: black
• Dimensions (LxWxH): ca. 482.6 x 338.5 x 43.7 mm
System requirements
• Delock 19″ splice box front panel

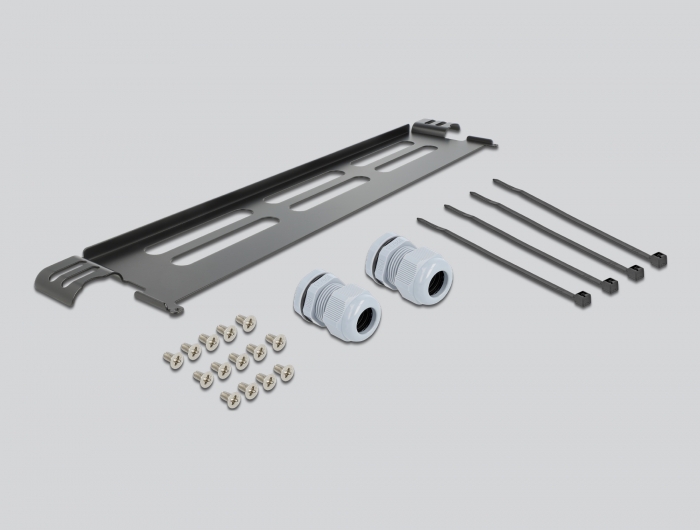

Package content
• 19″ fiber optic splice box
• Cable support bar
• 4 x splice cassette for 24 pigtails
• 2 x M20 cable gland
• 4 x zip-tie
• Installation manual
Physical characteristics
