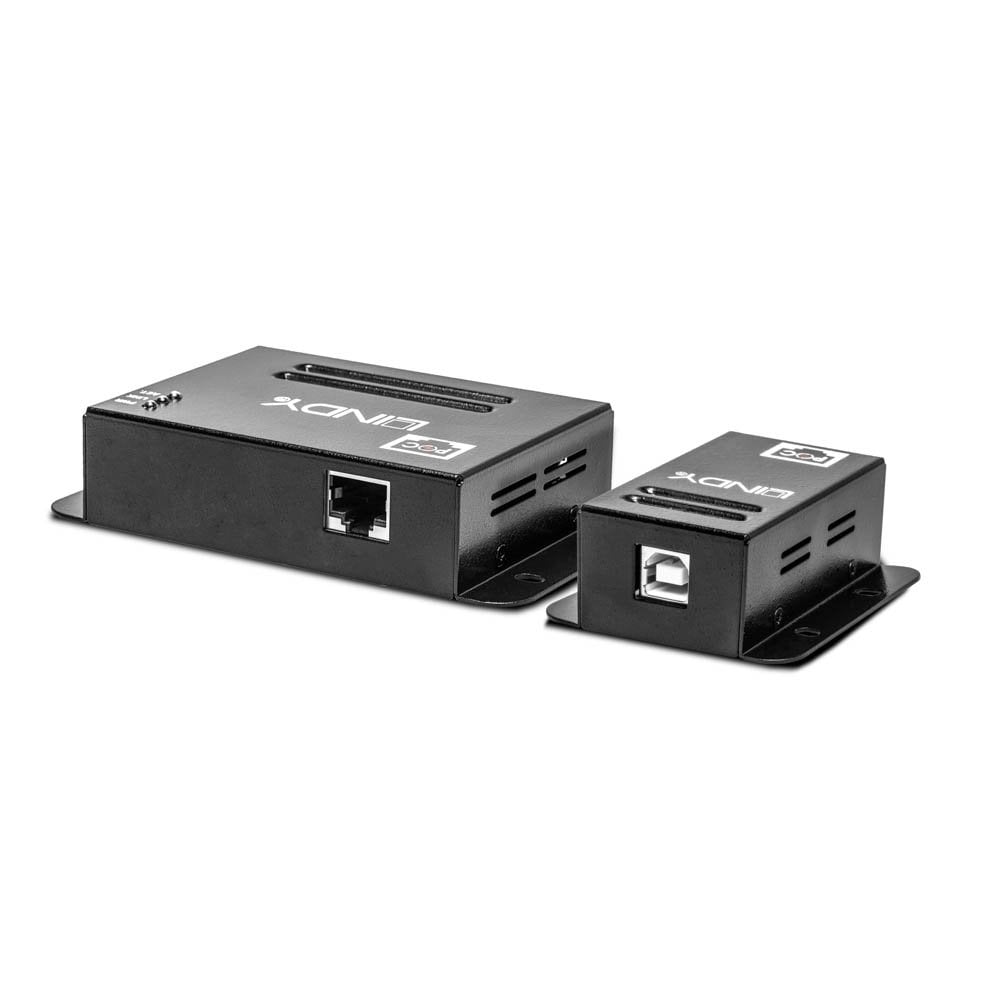

USB 2.0 pikendaja 4porti läbi Cat5e/6 kuni 50.0m, rackitav

USB 2.0 pikendaja 4porti läbi Cat5e/6 kuni 50.0m, rackitav

Specifications

USB Standard: USB 2.0
Supported Bandwidth: 480Mbps
Maximum Distance: 50m (164.04ft)
Transmission Medium: Cat.5/5e/6 or higher network cable
Chipset: NS1021
Special Features: Power over RJ45

Connectors

Transmitter Input: USB Type B (Female)
Transmitter Output: RJ45 (Female)
Receiver Input: RJ45 (Female)
Receiver Output: 4 x USB Type A (Female)
Power: 3.5/1.35mm DC socket

Physical Properties

Dimensions WxDxH:
60x67x23mm (2.36x2.64x0.91in) (TX)
110x64x23mm (4.33x2.52x0.91in) (RX)
Housing Material: Metal
Net Weight: 0.415kg (0.91lb)
Operating Temperature: -0° - 70°C (32°F - 158°F)
Storage Temperature: -20°C - 80°C (-4°F - 176°F)
Humidity: 0 - 90% RH (non-condensing)
Power Requirements: 24VDC 0.5A
Colour: Black

Miscellaneous

Packaging Type: Carton Box
Packaging Dimensions: 215x155x50mm (8.46x6.1x1.97in)
Gross Weight: 0.6kg (1.32lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH

Package contents

Transmitter unit
Receiver unit
0.5m USB 2.0 A Male to B Male cable
Multi-Country Power Supply (EU, UK, US & AUS)
Lindy Manual

125,87 € (ilma km-ta)

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Manufacturer Part Number: 42681
Tootekood: EE-100-180-113

Spetsifikatsioon

Weight

0.5 kg
