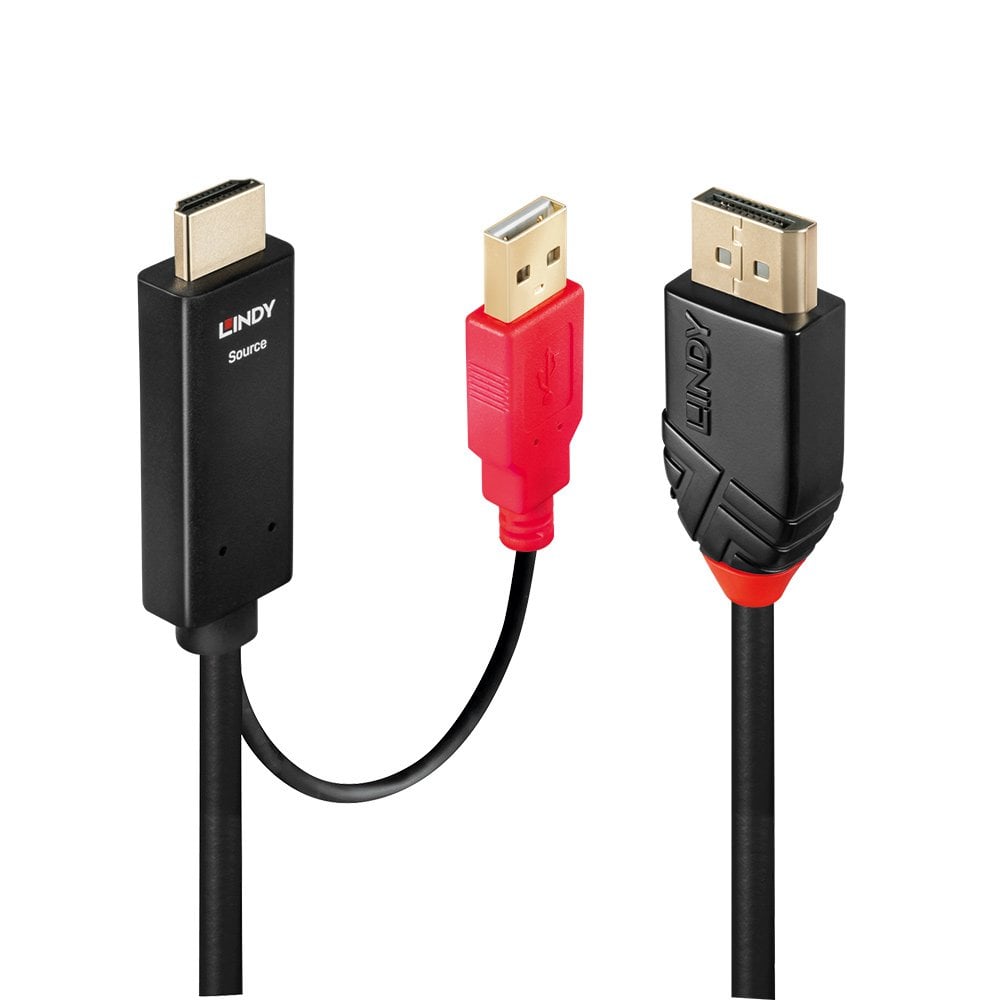

HDMI - DisplayPort kaabel 5.0m, 4K@30Hz + USB lisa toide, must (sign suund HDMI > DP)

Connectors

Connector A: HDMI Type A Male, USB Type A Male
Connector B: DisplayPort A Male
Housing Material: ABS
Connector Plating: Gold 1µm
Pin Construction: Phosphor Bronze
Pin Plating: Gold 15µm
Dimensions (approx.) WxDxH:
HDMI: 48x20.9x11.3mm (1.89x0.82x0.44in)
USB: 37.5x15.8x8mm (1.48x0.62x0.31in)
DisplayPort: 36.4x20x9.4mm (1.43x0.79x0.37in)

Cable Construction

Length: 3m (9.84ft)
Standard: DisplayPort 1.2
Colour: Black
Type: Round
Jacket Diameter: 5.5mm (0.22in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 30AWG
Shielding: Aluminium Braid, 85%

Specifications

Supported Bandwidth: 10.2Gbps/225MHz
Maximum Resolution: 4096x2160@30Hz 4:4:4 8bit
Nominal Attenuation:
300kHz-825MHz <5dB
825MHz-2.475GHz <5dB
2.475GHz-4.125GHz <12dB
4.125GHz-5.1GHz <20dB
Minimum Bend Radius: 55mm (2.17in)
Operating Temperature: 0°C - 45°C (32°F - 113°F)
Storage Temperature: -10°C - 80°C (14°F - 176°F)

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 2
Certificated: CE, FCC, RoHS, REACH, UL & California Proposition 65

58,16 € (ilma km-ta)

AV connector
- DisplayPort
- HDMI
Frame rate
- 30
Length
- 5 m
Picture resolution
- 3840x2160
Weight
- 0.1 kg

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Manufacturer Part Number: 41428
Tootekood: EE-100-180-051

Spetsifikatsioon

AV connector	DisplayPort, HDMI
Frame rate	30
Length	5 m
Picture resolution	3840x2160
Weight	0.1 kg
