Laiendab C-tüüpi või HDMI- ja USB-signaalid kuni 150 m kaugusele HDBaseT kaudu
- Saadab HDMI resolutsioonid kuni 150 m kaugusele üle Cat.6 võrgukaabli HDBaseT tehnoloogia abil koos Long Reach režiimiga.
- Toetab HDMI 18G resolutsiooni kuni 4K@60Hz 4:4:4, täiendavalt toetab HDR-i.
- Toetab USB 2.0, heli, RS-232, kahesuunalist IR ja PoC (Power over Cable).
- ELi standardne 2-poolne seinaplaat (15x8cm)

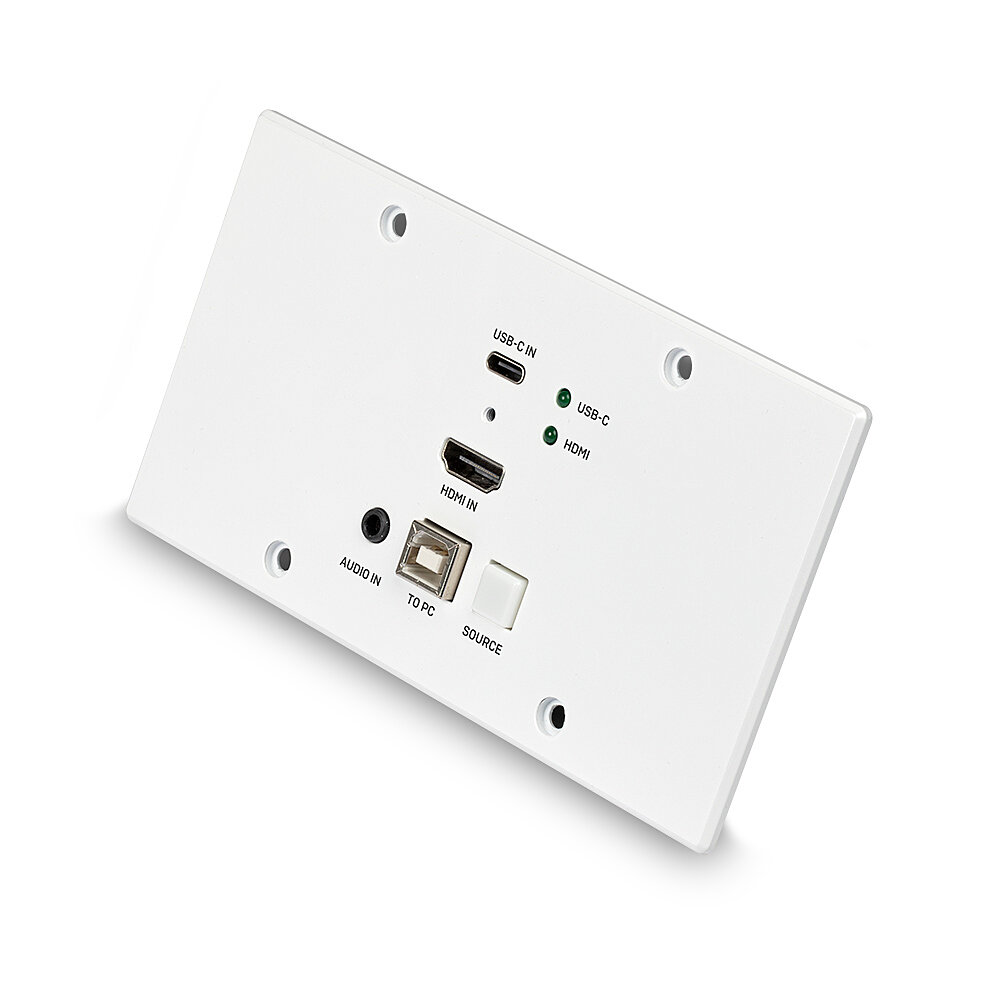

Lindy Cat.6 HDBaseT HDMI 4K60 & Type C Wall Plate Transmitter on üks osa suure jõudlusega ja usaldusväärsest lahendusest AV- ja andmesignaalide laiendamiseks pikkade vahemaade taha Cat.6 võrgukaabli kaudu.
Kombineerides selle saatja ühilduva HDBaseT-vastuvõtjaga, nagu Lindy nr 38389, tagab see lahendus usaldusväärse ülekande kuni 150 m kaugusele.
Specifications
- AV Interface: HDMI, Type C
- Interface Standard: HDMI 2.0, USB 2.0
- Supported Bandwidth: HDMI 18Gbps, USB Type C 5.4Gbps
- Maximum Distance:
- 90m (295.28ft) - 3840x2160@60Hz 4:4:4 8bit (STD)
- 150m (492.12ft) - 3840x2160@30Hz 4:4:4 8bit / 4:2:2 12bit (LRM)
- Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
- HDCP Support: 2.2
- EDID Pass Through: Dip-switch with presets and copy function
- Supported Audio: Pass Through
- Separate Audio Ports: 3.5mm
- IR Support: 20 - 60KHz
- CEC Support: -
- Serial Interface: RS-232 Pass Through
- Transmission Protocol: HDBaseT 2.0
- Transmission Medium: Cat.6
- Laser Class (only for Fibre): -
- Wavelength (only for Fibre): -
- Chipset: VS2010
- Special Features: Bi-directional IR, PoC (Power over Cable) with On/Off switch, Audio embedded, Long Reach Mode
Connectors
- Transmitter Input: HDMI Type A (Female), USB Type C (Female), USB Type B (Female), 3.5mm Audio (Female), IR 3-pin Terminal Block
- Transmitter Output: RJ-45 (Female), IR 3-pin Terminal Block
- Receiver Input: -
- Receiver Output: -
- Bi-directional Ports: RS-232 3-Pin Terminal Block
- Power: 2-Pin Terminal Block DC connector
Physical Properties
- Dimensions (approx.) WxDxH: 152x33.5x81mm (5.98x1.32x3.19in)
- Housing Material: Metal
- Net Weight: 0.39kg (0.86lb)
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 20 - 90% RH (non-condensing)
- Power Requirements: 24VDC 1A
- Colour: White plate
Miscellaneous
- Packaging Type: Carton Box
- Packaging Dimensions: 172x98x133mm (6.77x3.86x5.24in)
- Gross Weight: 0.54kg (1.19lb)
- Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Package Contents
- HDMI Transmitter
- Multi-country Power Supply (UK, EU, US & AUS)
- 2x 3-Pin Terminal Block
- 2x 2-Pin Terminal Block
- Lindy Manual
