Specifications
AV Interface: HDMI
Interface Standard: HDMI 2.0
Supported Bandwidth: 18Gbps
Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
HDCP Support: 2.2
Supported Audio: HDMI Audio Pass-through Up to 5.1CH (SPDIF)
IR Support: 38kHz
CEC Support: -
Serial Interface: RS232
LED / LCD Display: LCD
Control: IR, RS232, IP Webbrowser Control (Default IP: 192.168.1.168)
Special Features: EDID Management, individual audio out ports

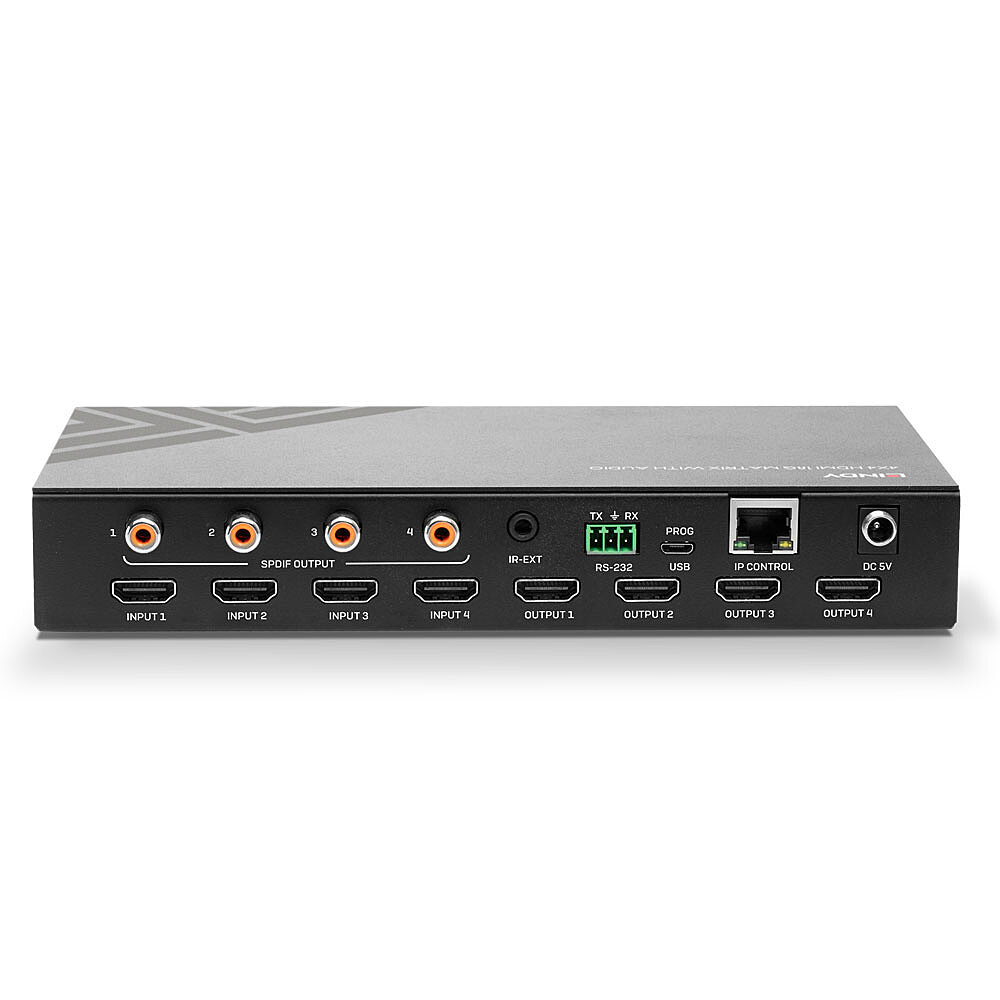

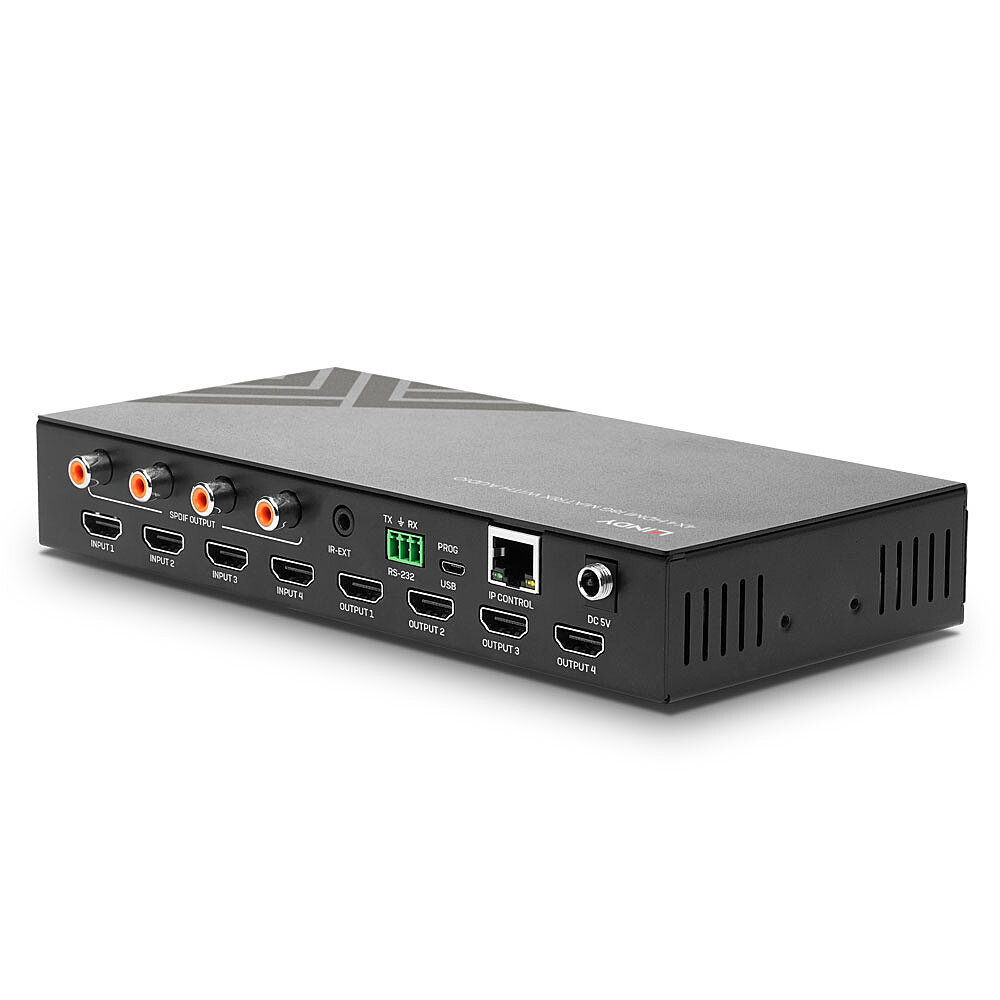

Connectors
Input: 4 x HDMI (Female)
Output: 4 x HDMI (Female), 4 x SPDIF (Female)
Control: RS232 (Female), RJ45 (Female), 3.5mm (Female)
Power: 5.5/2.1mm DC socket
Physical Properties
Dimensions (approx.) WxDxH: 216x115x34mm (8.5x4.53x1.34in)
Housing Material: Metal
Net Weight: 0.655kg (1.44lb)
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 20 - 90% (non-condensing)
Power Requirements: 5VDC 3A
Colour: Black
Miscellaneous
Packaging Type: Carton box
Packaging Dimensions: 255x202x60mm (10.04x7.95x2.36in)
Gross Weight: 1.155kg (2.55lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH
Package Contents
4x4 HDMI 18G Matrix
Multi-country Power Supply (UK, EU, US & AUS)
IR Extension Cable, 1.6m

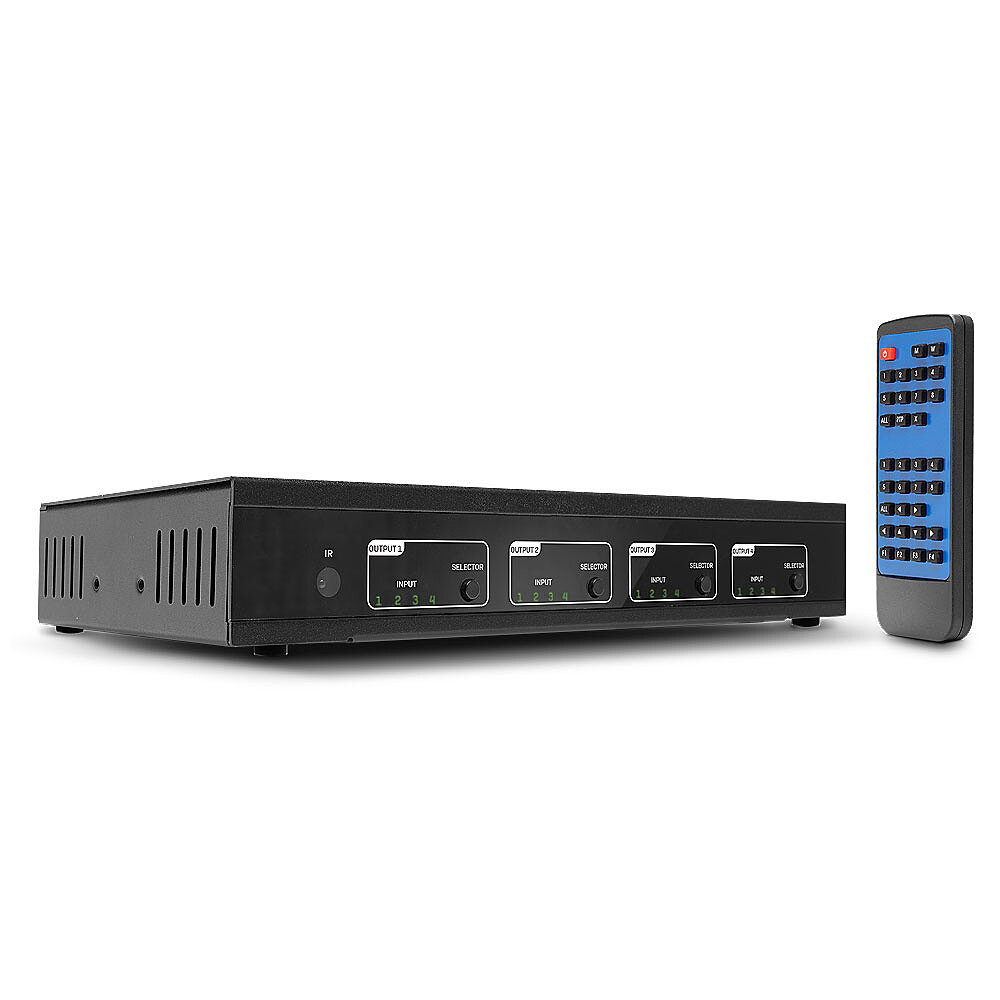

IR Remote including CR2025 3V battery
Mounting brackets, screws & rubber feet
RS-232 screw terminal
Quick Install Guide
Purchasing Information
No.: 38247
EAN: 4002888382472
