Specification
AV Interface: VGA to HDMI
Interface Standard: HDMI 1.2a
Supported Bandwidth: 6.75 Gbps
Maximum Input Resolution: 1920x1200@60Hz
Maximum Output Resolution: 1920x1200@60Hz 4:4:4 8bit
HDCP Support: 1.1
Supported Audio: Audio Pass-Through, Analog L/R
Separate Audio Ports: TOSLINK, 3.5mm Stereo, HDMI
Special Features: -
Connectors

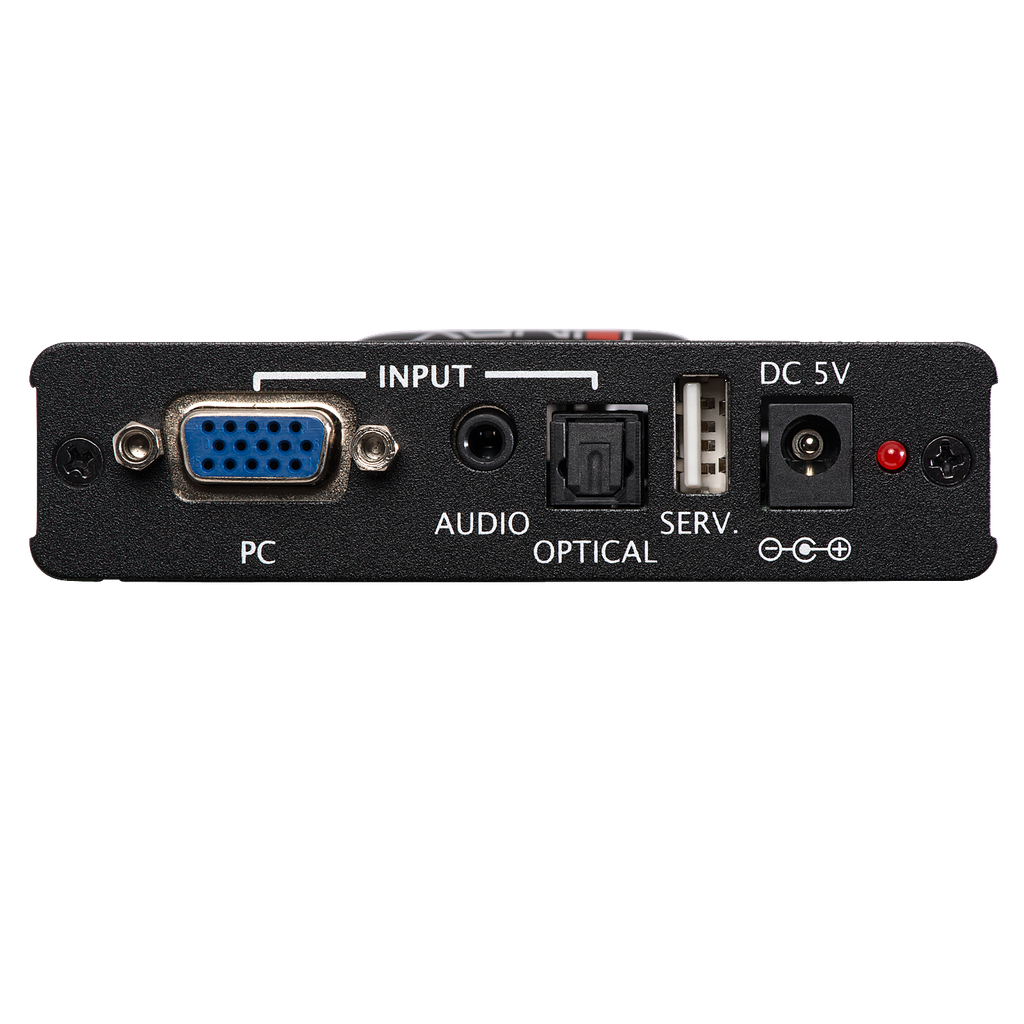

Input: 1 x 15way HD (Female), 1 x 3.5mm Stereo Audio (Female), 1 x TOSLINK (Female)

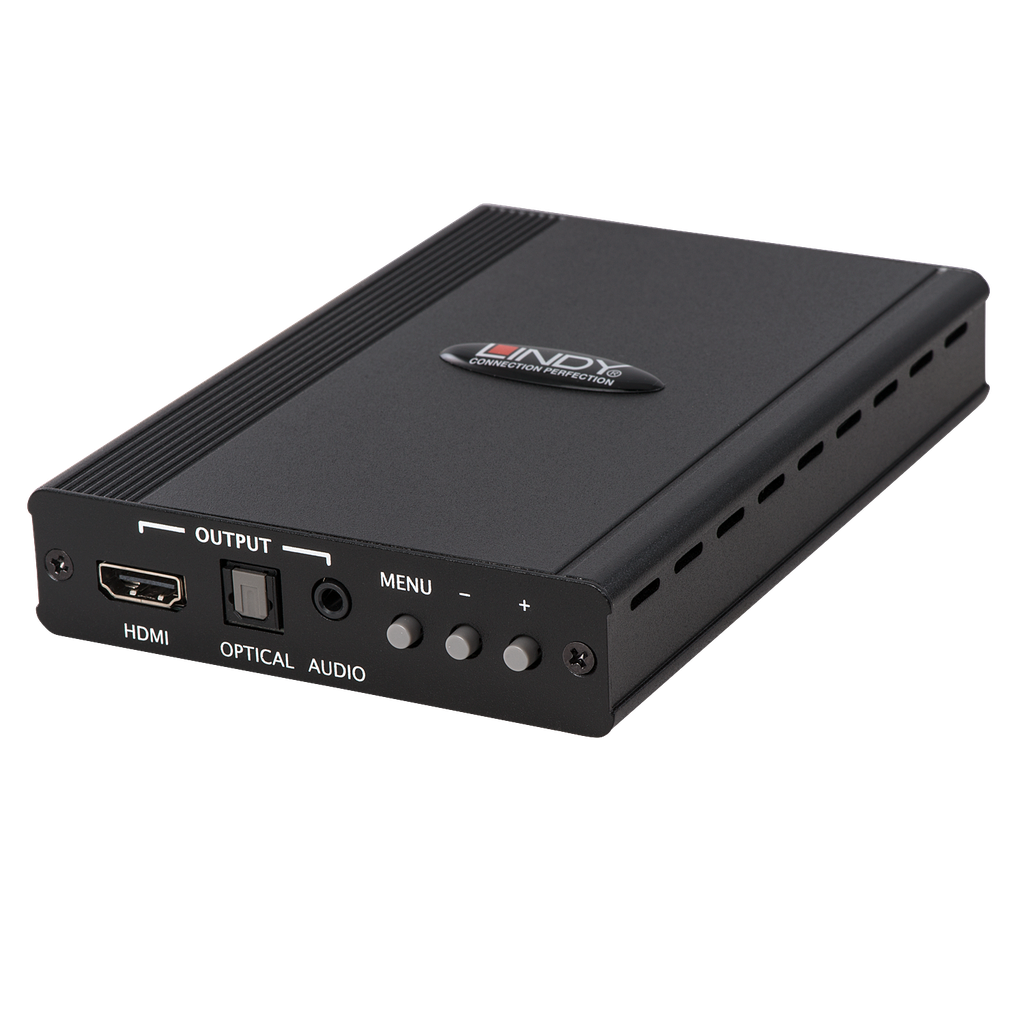

Output: 1 x HDMI (Female), 1 x 3.5mm Stereo Audio (Female), 1 x TOSLINK (Female)
Power: 5.5/2.1mm DC socket
Physical Properties
Dimensions WxDxH: 100x154x25mm (3.94x6.06x0.98in)
Housing Material: Metal
Net Weight: 0.51kg (1.12lb)
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 20 - 90% RH (non-condensing)
Power Requirements: 5VDC 2.6A
Colour: Black
Miscellaneous
Packaging Type: Carton Box
Packaging Dimensions: 280x180x70mm (11.02x7.09x2.76in)
Gross Weight: 0.9kg (1.98lb)
Warranty (Years): 2
Certificated: CE, FCC, REACH & RoHS
Package Contents
VGA to HDMI 1080p Scaler
Male to Male VGA Cable 1.2m (3.94ft)
3.5mm Stereo Jack Male to 2 x Phono Male 1.8m (5.91ft)
Multi-country Power Supply (EU, UK, US & AUS) Lindy Manual
