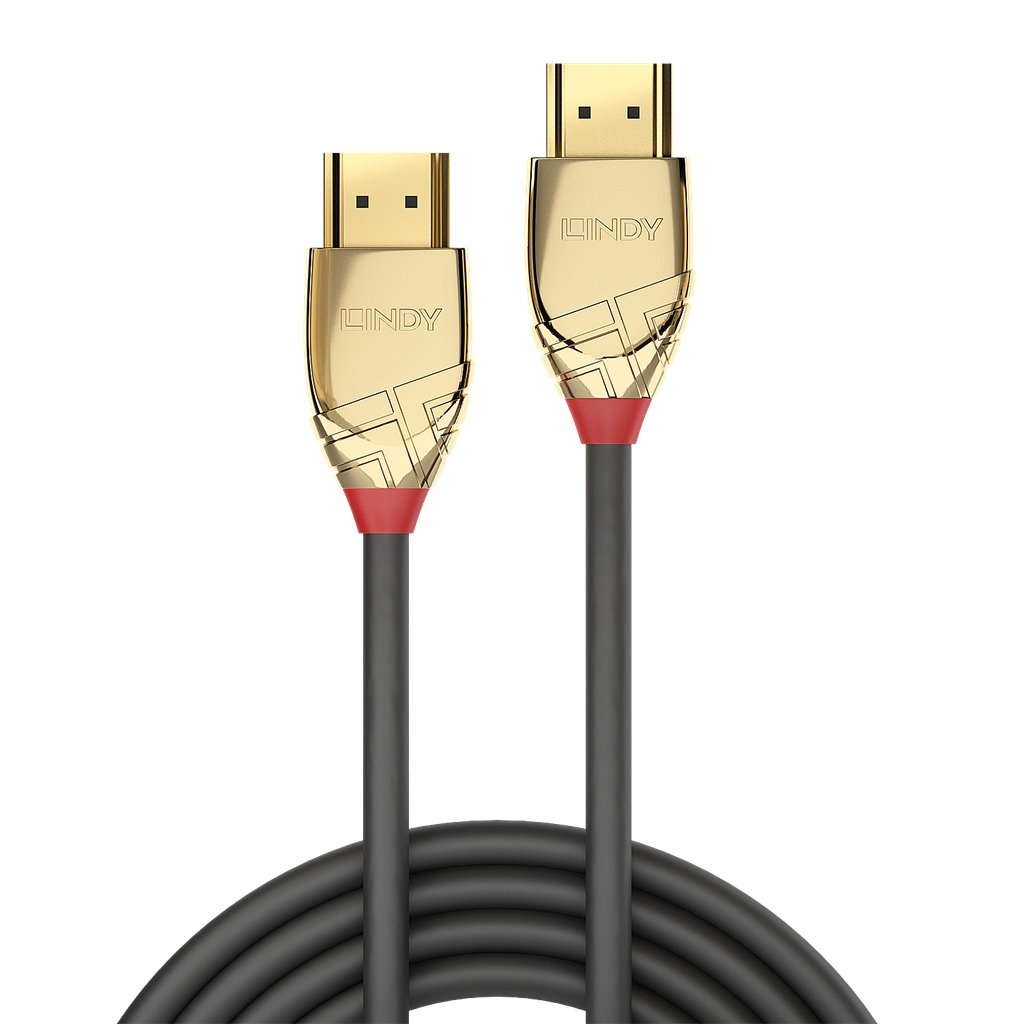

Täiustatud, suure jõudlusega HDMI-kaabel, millel on õhukesed metallühendused
-
Toetab UHD eraldusvõimet kuni 4096x2160@60Hz 4:4:4 8bit
-
Toetab kuni 32 audiokanalit Dolby True HD, DTS-HD Master Audio
-
Täielik toetus HEC, ARC ja CEC nõuetele vastavatele seadmetele
-
Tootjapoolne 25-aastane garantii
The latest HDMI specifications are supported for 18G bandwidth capacity in cable lengths up to 7.5m. Gold Line HDMI cables are classified as High Speed up to 7.5m and Standard at lengths above 7.5m
Connectors
-
Connector A: HDMI Type A Male
-
Connector B: HDMI Type A Male
-
Housing Material: 24K Gold Plated Zinc Alloy
-
Connector Plating: 24K Gold 3µm
-
Pin Construction: Phosphor Bronze
-
Pin Plating: 24K Gold 15μm
-
Dimensions (approx.) WxDxH: 20x11.6x34.1mm (0.79x0.46x1.34in)
Cable Construction
-
Length: 5m (16.4ft)
-
Standard: High Speed HDMI with Ethernet
-
Colour: Grey
-
Type: Round
-
Jack Diameter: 8.5mm (0.33in)
-
Jacket Material: PVC
-
Conductor Material: OFC Copper
-
Conductor Gauge: 24AWG
-
Shielding: Copper Braid 85%
Specifications
-
Supported Bandwidth: 18 Gbps
-
Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
-
Nominal Attenuation: 300kHz-825MHz <5dB, 825MHz-2.475GHz <5dB, 2.475GHz-4.125GHz <12dB, 4.125GHz-5.1GHz <20dB
-
Minimum Bend Radius: 85mm (3.35in)
-
Operating Temperature: -10°C - 80°C (14°F - 176°F)
-
Storage Temperature: -10°C - 80°C (14°F - 176°F)
-
ATC Approved: Yes
Miscellaneous
-
Packaging Type: Polybag
-
Warranty (Years): 25
-
Certificated: RoHS, REACH, UL, ATC
