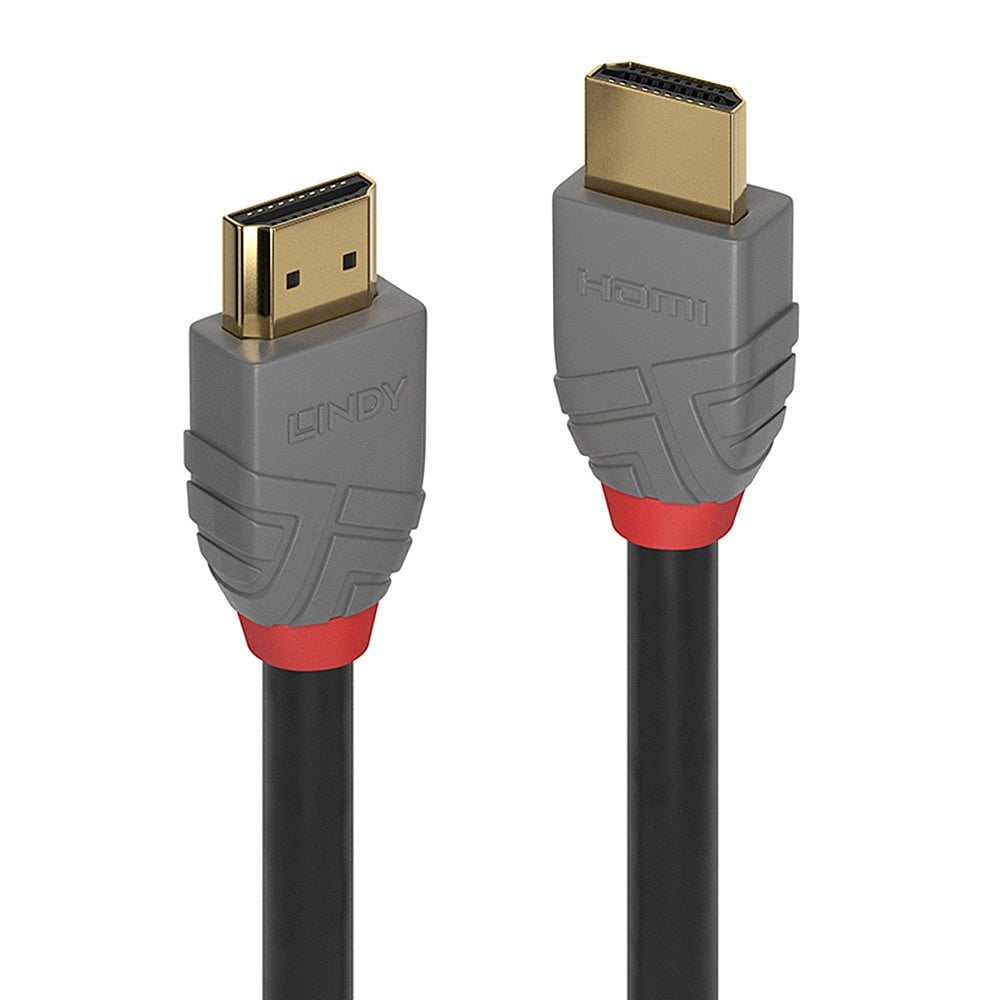

HDMI kaabel 7.5m 4096x2160@60Hz, ANTHRA

HDMI kaabel 7.5m 4096x2160@60Hz, ANTHRA

Connectors

Connector A: HDMI Type A Male
Connector B: HDMI Type A Male
Housing Material: PVC
Connector Plating: Gold
Pin Construction: Phosphor Bronze
Pin Plating: Gold
Dimensions (approx.) WxDxH: 21.4x41.44x12.7mm (0.84x1.63x0.5in)

Cable Construction

Length: 7.5m (24.61ft)
Standard: HDMI Standard
Colour: Black
Type: Round
Jacket Diameter: 9.8mm (0.39in)
Jacket Material: PVC
Conductor Material: Bare Copper
Conductor Gauge: 24AWG
Shielding: Aluminium Magnesium Alloy 55%

Specifications

Supported Bandwidth: 10.2Gbps
Maximum Resolution: 4096x2160@60Hz 4:2:0 8bit
Nominal Attenuation:
300kHz-825MHz --- 15dB
825MHz-2.475GHz --- 15 - 29dB
2.475GHz-4.125GHz --- 29 - 44dB
4.125GHz-5.1GHz --- 44 - 48dB
Minimum Band Radius: 98mm (3.86in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL

45,14 € (ilma km-ta)

AV connector
- HDMI (AV connector)
Frame rate
- 60
Length
- 7.5 m
Picture resolution
- 4096x2160
Weight
- 0.25 kg

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Manufacturer Part Number: 36966
Tootekood: EE-100-179-689

Spetsifikatsioon

AV connector	HDMI (AV connector)
Frame rate	60
Length	7.5 m
Picture resolution	4096x2160
Weight	0.25 kg
