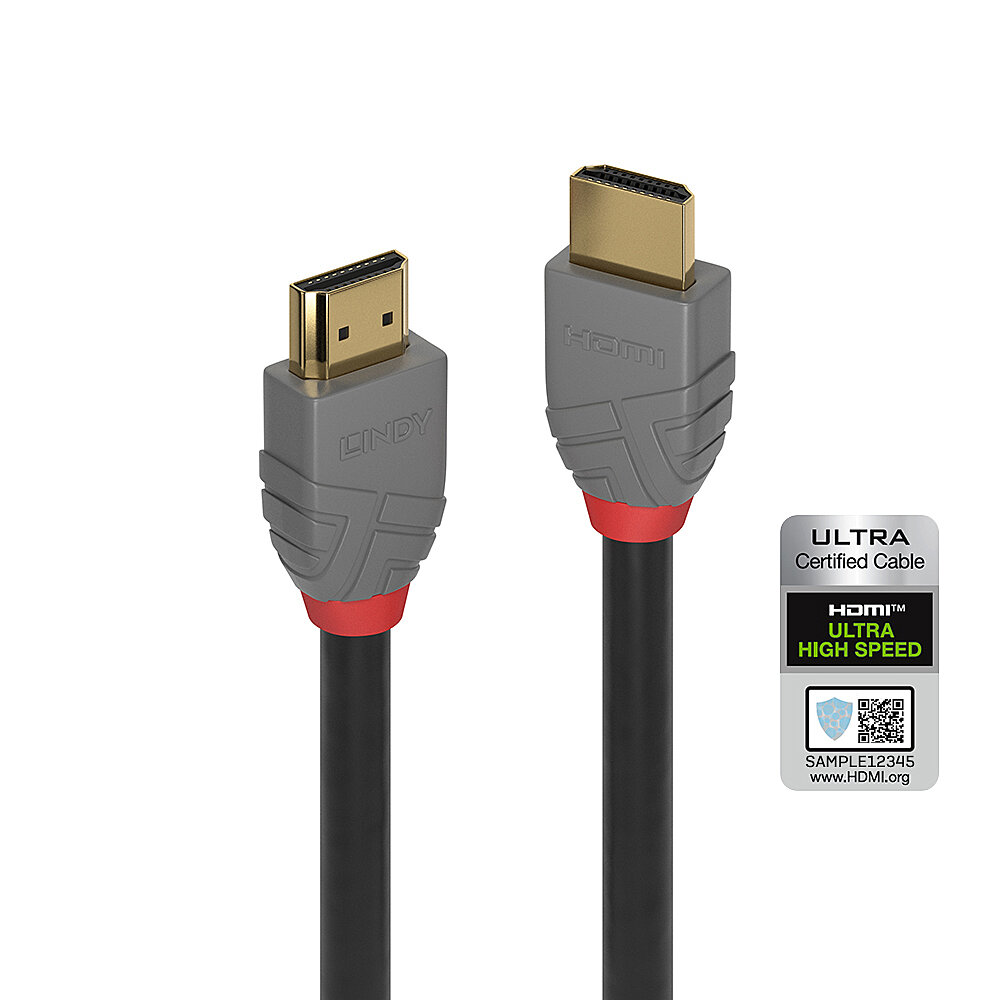

Connectors
Connector A: HDMI Type A Male
Connector B: HDMI Type A Male
Housing Material: PVC
Connector Plating: 24K Gold 15µm
Pin Construction: Phosphor Copper
Pin Plating: 24K Gold 3µm
Dimensions (approx.) WxDxH: 20x34.2x10.9mm (0.79x1.35x0.43in)
Cable Construction
Length: 2m (6.56ft)
Standard: Certified Ultra High Speed HDMI
Colour: Black
Type: Round
Jacket Diameter: 7.3mm (0.29in)
Jacket Material: PVC
Conductor Material: Copper
Conductor Gauge: 30AWG
Shielding: Aluminium Magnesium Alloy Braid, 85%
Specifications
Supported Bandwidth: 48Gbps
Maximum Resolution: 10240x4320@120Hz 4:2:0 12bit
Nominal Attenuation:
≤ −5 dB from 0 GHz to 1 GHz
−6.5 dB @ 2 GHz
−9.2dB @ 3 GHz
−16.5 dB @ 6 GHz
−29 dB @ 12 GHz
Minimum Bend Radius: 80mm (3.15in)
Operating Temperature: 0°C - 50°C (32°F - 122°F)
Storage Temperature: 0°C - 50°C (32°F - 122°F)
ATC Approved: Yes
Miscellaneous
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL, ATC
Purchasing Information
No.: 36953
EAN: 4002888369534
This product is also available in other lengths:
36951 - 0.5m (1.64ft)
36952 - 1m (3.28ft)
36953 - 2m (6.56ft)
36954 - 3m (9.84ft)
