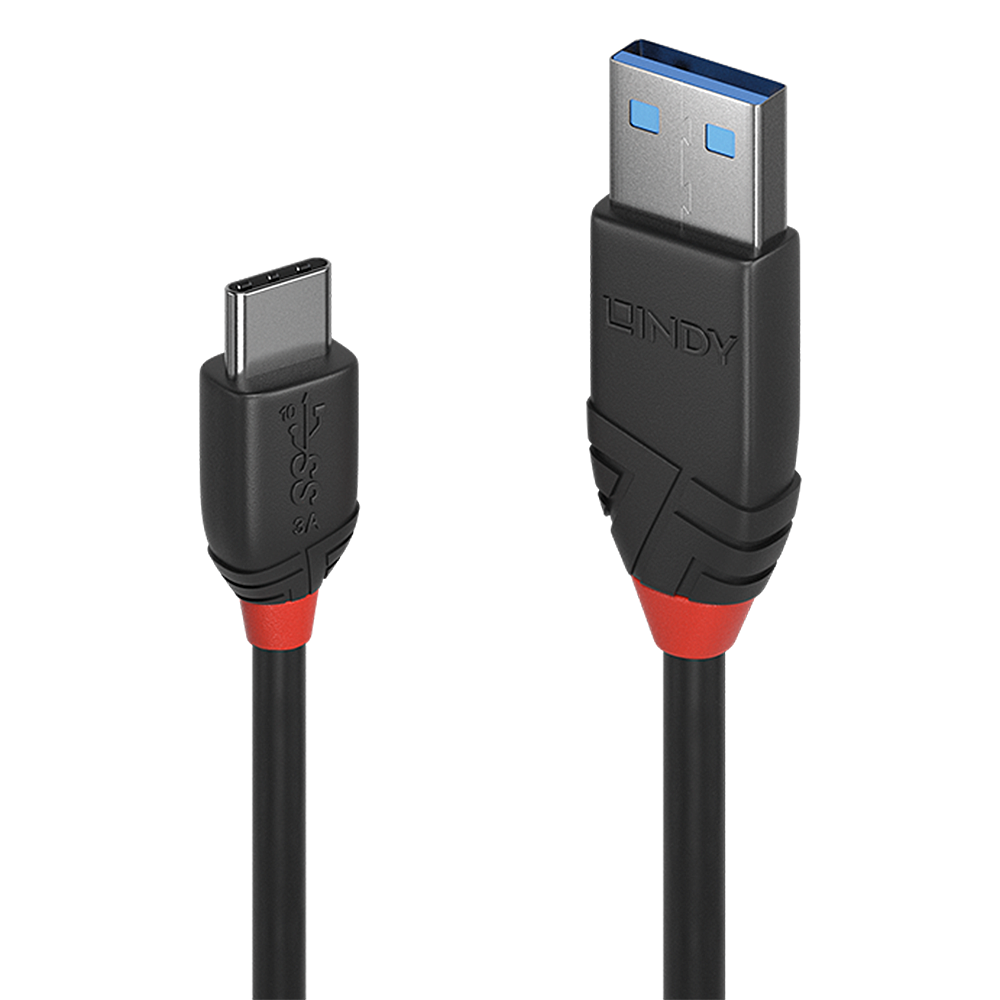

USB 3.1 Tüüp C-A kaabel on mõeldud ühendamaks seadmeid nii kodus kui ka väikestes kontorites
-
Toetab SuperSpeed??+ andmeedastuskiirust kuni 10 Gbps
-
Tugev PVC korpus, nikliühendused, kullatud kontaktid
-
Kolmekordne varjestatud kaabel, korrosioonikindlad vaskjuhtmed
Black Line USB 3.1 Tüüp C kaablid on saadaval pikkusega 0,5m, 1m ja 1,5m
Connectors
-
Connector A: USB 3.1 Type C Male
-
Connector B: USB 3.1 Type A Male
-
Housing Material: PVC
-
Connector Plating: Nickel
-
Pin Construction: Phosphor Bronze
-
Pin Plating: 24K Gold plated
-
Dimensions (approx.) WxDxH:
-
A: 15.5x35x7.8mm (0.61x1.38x0.31in)
-
C: 11.0x25.0x7.3mm (0.43x0.98x0.29in)
Cable Construction
-
Length: 1.5m (4.92ft)
-
Standard: USB 3.1
-
Colour: Black
-
Type: Round
-
Jack Diameter: 4.5mm (0.18in)
-
Jacket Material: PVC
-
Conductor Material: Tinned Copper
-
Conductor Gauge: 26/30/30AWG
-
Shielding: Aluminium Magnesium Braid 85%
Specifications
-
Supported Bandwidth: 10Gbps
-
Maximum Resolution: -
-
Nominal Attenuation: 0.5Mhz – 15Ghz < 40db
-
Minumum Band Radius: 45mm (1.77in)
-
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
-
Storage Temperature: -25°C - 85°C (-13°F - 185°F)
-
ATC Approved: -
