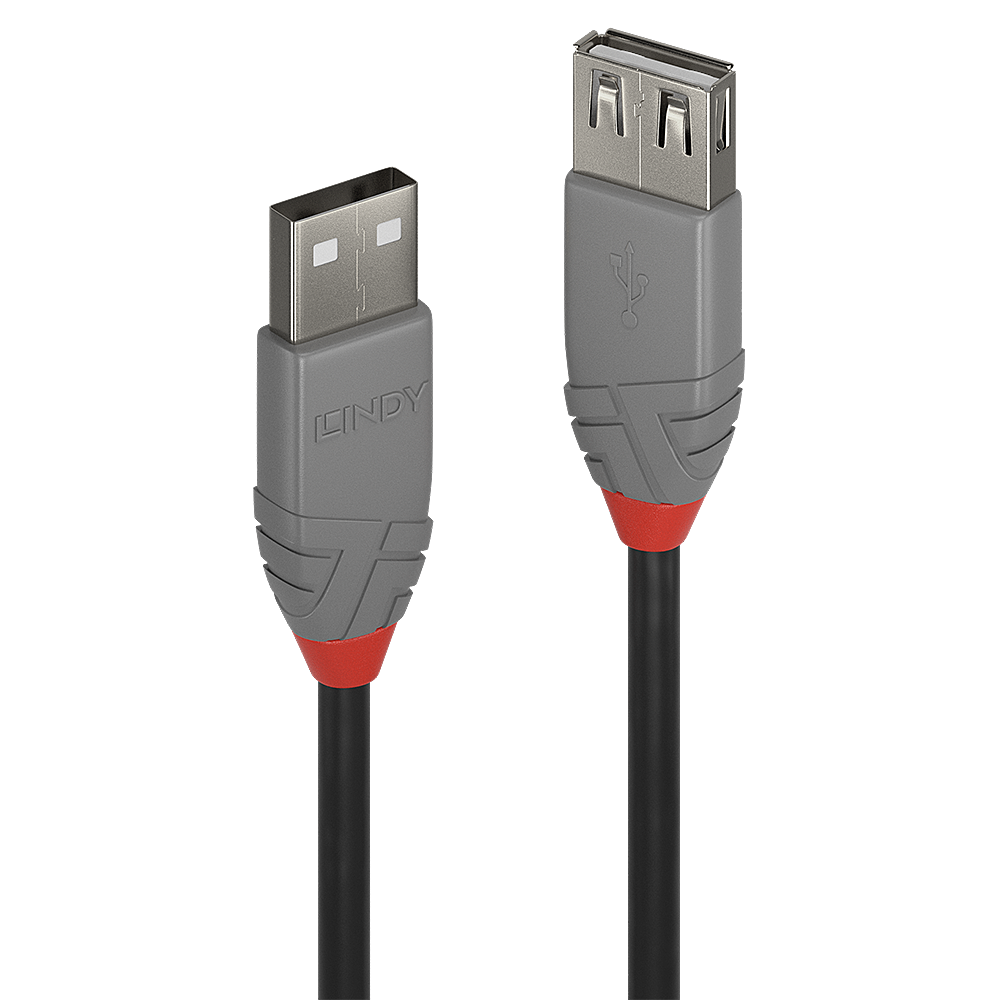

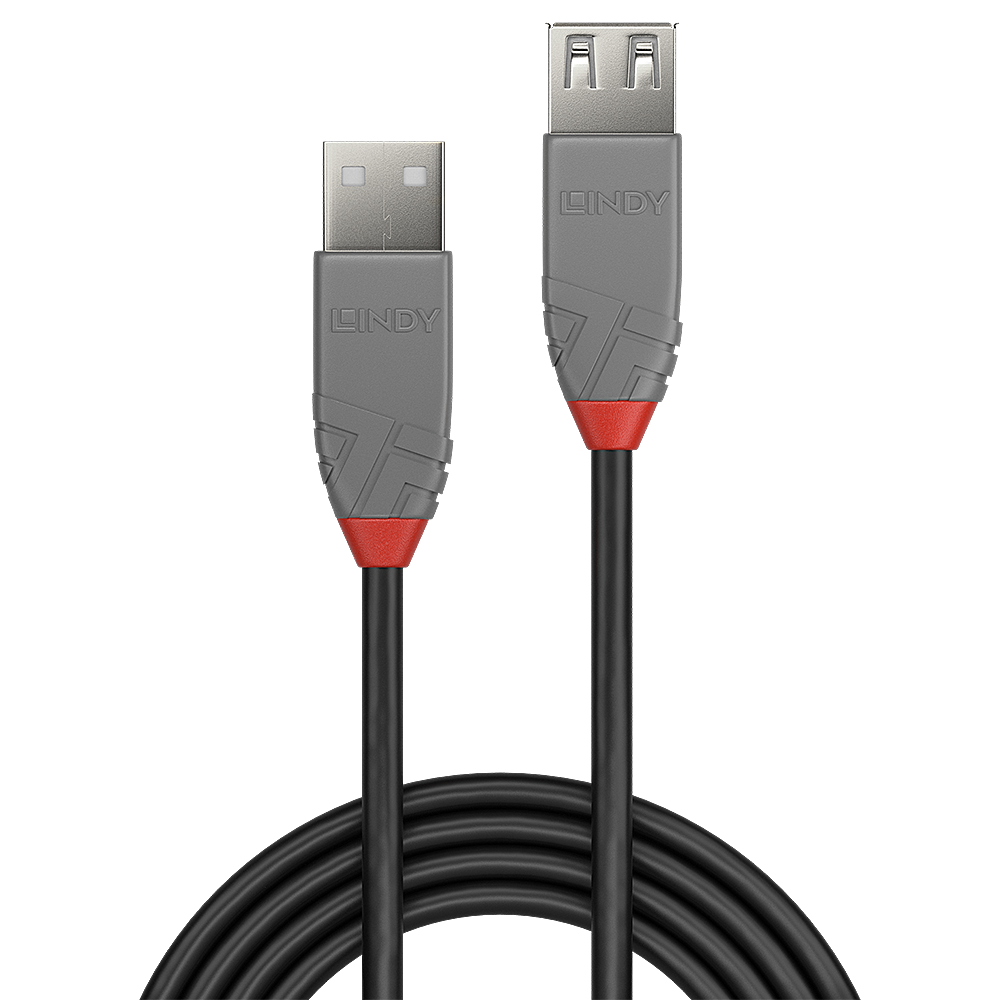

Professionaalne valik USB 2.0 tüüp A pikenduskaabel äri- ja kõrgtehnoloogilistele AV- ja IT-seadmetele
-
Toetab andmeedastuskiirusi kuni 480Mbps
-
Tugev PVC-korpus, nikliühendused ja kullatud kontaktid
-
Kahekordne varjestatud kaabel
Anthra Line USB 2.0 tüüp A pikenduskaablid on saadaval pikkusega 0,2 m, 0,5 m, 1m, 2m, 3m ja 5m
Connectors
-
Connector A: USB 2.0 Type A Male
-
Connector B: USB 2.0 Type A Female
-
Housing Material: PVC
-
Connector Plating: Nickel
-
Pin Construction: Copper
-
Pin Plating: Gold
-
Dimensions (approx.) WxDxH:
-
A (M): 12.0x36x4.5mm (0.47x1.42x0.18in)
-
A (F): 14.5x17.4x5.1mm (0.57x0.69x0.20in)
Cable Construction
-
Length: 5m (16.44ft)
-
Standard: USB 2.0
-
Colour: Black
-
Type: Round
-
Jacket Diameter: 4.4mm (0.17in)
-
Jacket Material: PVC
-
Conductor Material: Tinned Copper
-
Conductor Gauge: 26/28AWG
-
Shielding: Aluminium Magnesium Braid
Specifications
-
Supported Bandwidth: 480Mbps
-
Maximum Resolution: -
-
Nominal Attenuation: 5.8db/km
-
Minumum Band Radius: 16mm (0.63in)
-
Operating Temperature: 0°C - 60°C (32°F - 140°F)
-
Storage Temperature: 0°C - 60°C (32°F - 140°F)
-
ATC Approved: -
