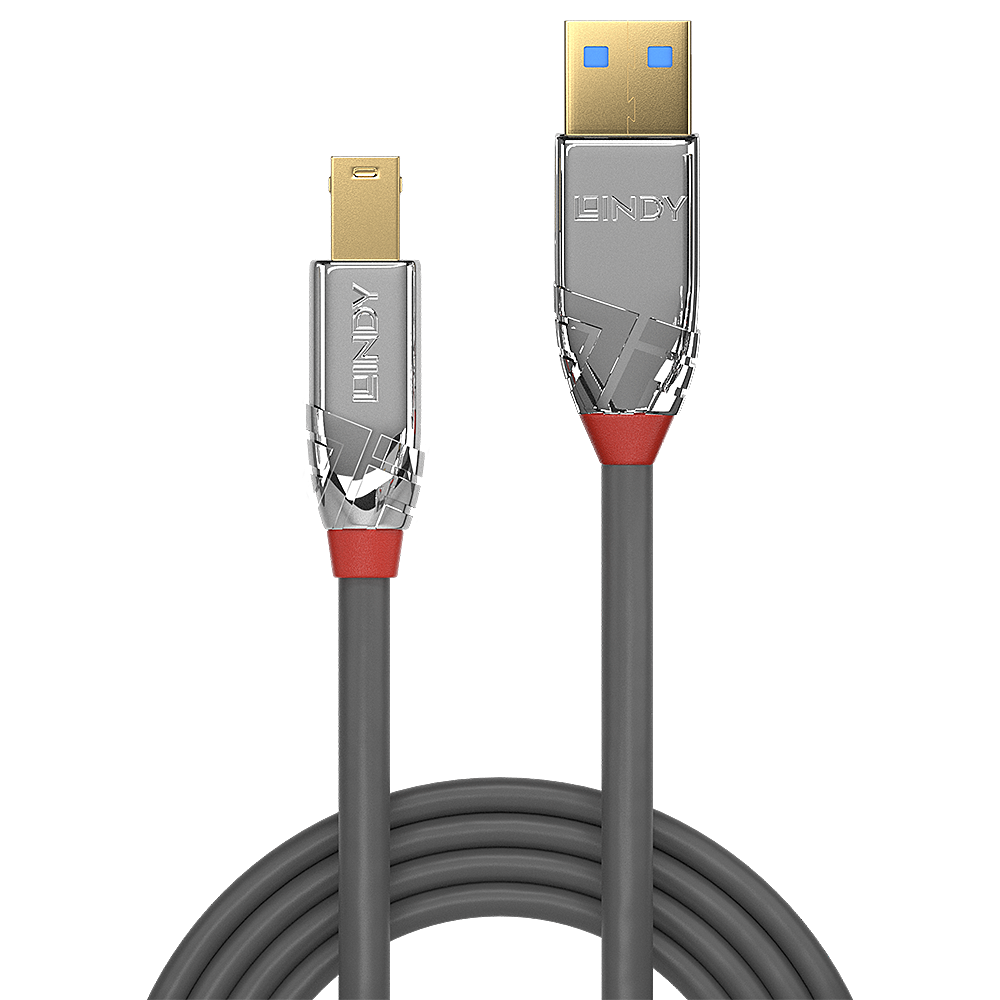

Suurepärase jõudluse ja disainiga USB 3.0 A - B kaabel
-
Toetab SuperSpeedi andmeedastuskiirust kuni 5 Gps/s
-
Chrome disainiga ABS korpus, 24K kullatud pistikud ja kontaktid
-
Kolmekordne varjestatud kaabel, korrosioonikindel, suure jõudlusega vaskjuhtmed
Cromo Line USB 2.0 A-B tüüpi kaablid on saadaval pikkusega 0,5m, 1m, 2m ja 3m.
Connectors
-
Connector A: USB 3.0 Type A Male
-
Connector B: USB 3.0 Type B Male
-
Housing Material: Chrome Plated, ABS
-
Connector Plating: Gold 1µm
-
Pin Construction: Phosphor Bronze
-
Pin Plating: Gold 3µm
-
Dimensions (approx.) WxDxH:
-
A: 16x35x8.3mm (0.63x1.38x0.34in)
-
B: 13x37x14.3mm (0.51x1.45x0.56in)
Cable Construction
-
Length: 0.5m (1.64ft)
-
Standard: USB 3.0
-
Colour: Grey
-
Type: Round
-
Jacket Diameter: 5.5mm (0.22in)
-
Jacket Material: PVC
-
Conductor Material: Tinned Copper
-
Conductor Gauge: 24/28/28AWG
-
Shielding: Copper Braid 65%
Specifications
-
Supported Bandwidth: 5Gbps
-
Maximum Resolution: -
-
Nominal Attenuation:
-
0.5 - 3m: 0.5MHz - 7.5GHz<25DB
-
5m: 0.5MHz - 7.5GHz<32DB
-
Minumum Band Radius: 55mm (2.2in)
-
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
-
Storage Temperature: -25°C - 85°C (-13°F - 185°F)
-
ATC Approved: -
