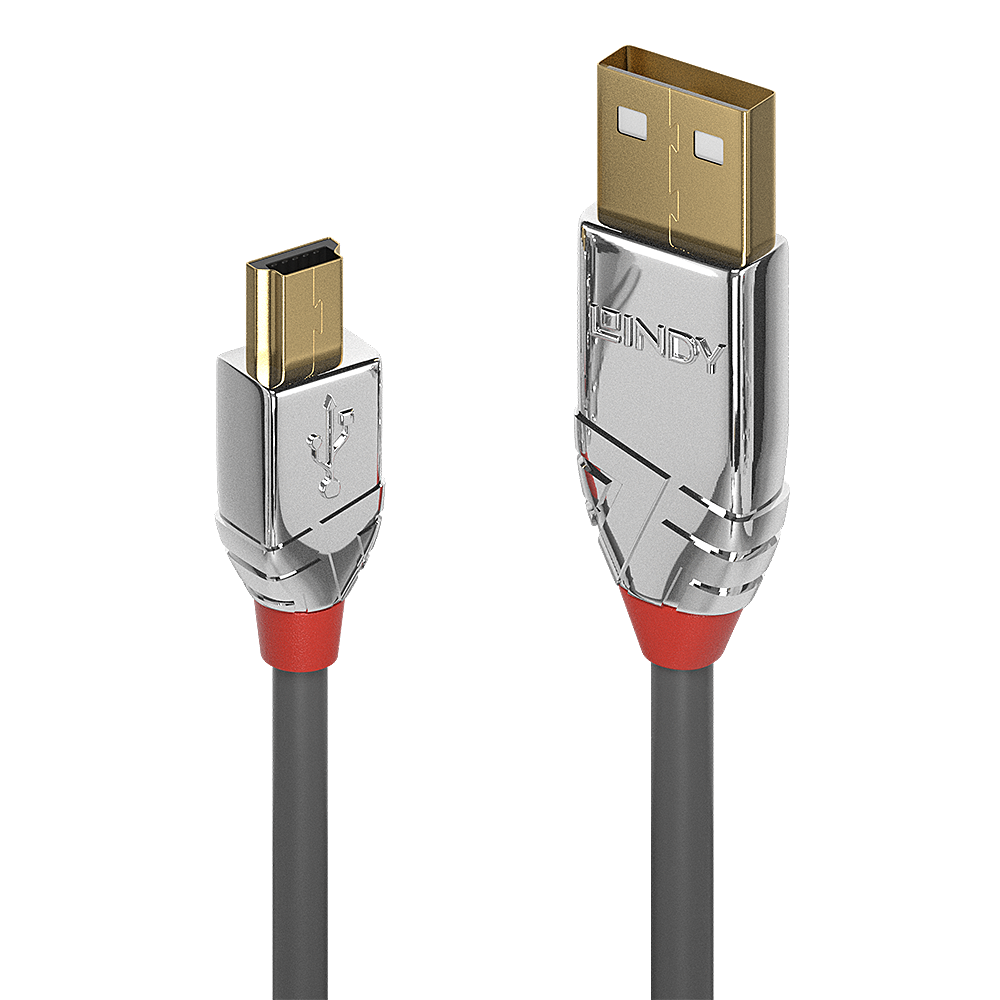

Suurepärane jõudlus ja disainiga USB 2.0 tüüp A mini-B kaabel
-
Toetab andmeedastuskiirust kuni 480Mbps
-
Kroomitud disainiga ABS korpus, 24K kullatud pistikud ja kontaktid
-
Kahekordne varjestatud kaabel, korrosioonikindel
Cromo Line USB 2.0 tüüpi A-Mini-B kaablid on saadaval pikkusega 0,5m, 1m, 2m, 3m, 5m ja 7,5m.
Connectors
-
Connector A: USB 2.0 Type A Male
-
Connector B: USB 2.0 Type Mini-B Male
-
Housing Material: Chrome Plated, ABS
-
Connector Plating: Gold 1µm
-
Pin Construction: Phosphor Bronze
-
Pin Plating: Gold 3µm
-
Dimensions (approx.) WxDxH:
-
A: 16x35x8.3mm (0.63x1.38x0.34in)
-
Mini-B:10x29x7.5mm (0.39x1.14x0.30in)
Cable Construction
-
Length: 2m (6.56ft)
-
Standard: USB 2.0
-
Colour: Grey
-
Type: Round
-
Jack Diameter: 4.0mm (0.16in)
-
Jacket Material: PVC
-
Conductor Material: Tinned Copper
-
Conductor Gauge: 24/28AWG
-
Shielding: Copper Braid 70%
Specifications
-
Supported Bandwidth: 480Mbps
-
Maximum Resolution: -
-
Nominal Attenuation: -
-
Minumum Band Radius:
-
0.5-5m: 0.5-400MHz < 5.8db
-
7.5m: 0.5-400MHz < 7.0db
-
Operating Temperature: 55mm (2.2in)
-
Storage Temperature: -20°C - 80°C (-4°F - 176°F)
-
ATC Approved: -25°C - 85°C (-13°F - 185°F)
