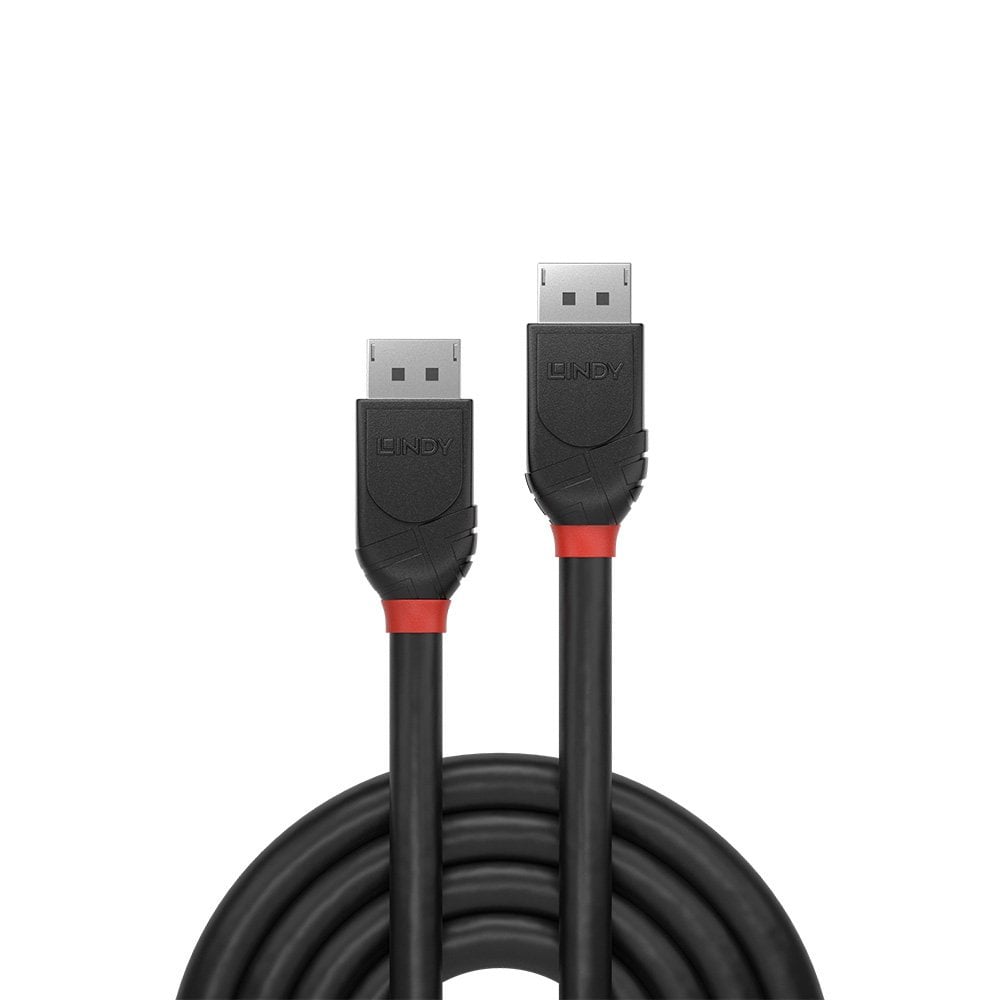

DisplayPort kaabel 1.0m, 4096x2160@60Hz, 1.2, 4K, 3D, Black Line

Connectors:

Connector A: DisplayPort Male
Connector B: DisplayPort Male
Housing Material: ABS
Connector Plating: Nickel
Pin Construction: Phosphor Bronze
Pin Plating: 24K Gold 3µm
Dimensions (approx.) WxDxH: 19.7x12x38.9mm (0.78x0.47x1.53in)

Cable Construction:

Length: 1m (3.28ft)
Standard: DisplayPort 1.2
Colour: Black
Type: Round
Jacket Diameter: 6mm (0.24in)
Jacket Material: PVC
Conductor Material: Copper
Conductor Gauge: 30AWG
Shielding: Copper Braid 80%

Specifications:

Supported Bandwidth: 21.6 Gbps
Maximum Resolution: 4096x2160@60Hz 4:4:4 10bit
Nominal Attenuation: 300kHz-825MHz - <5dB, 825MHz-2.475GHz - <5dB, 2.475GHz-4.125GHz - <12dB, 4.125GHz-5.1GHz - <20dB
Minimum Bend Radius: 48mm (1.89in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -25°C - 85°C (-13°F - 185°F)

7,95 € (ilma km-ta)

AV connector
- DisplayPort
Frame rate
- 60
Length
- 1 m
Picture resolution
- 4096x2160
Weight
- 0.15 kg

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Manufacturer Part Number: 36491
Tootekood: EE-100-179-558

Spetsifikatsioon

AV connector	DisplayPort
Frame rate	60
Length	1 m
Picture resolution	4096x2160
Weight	0.15 kg
