Connectors

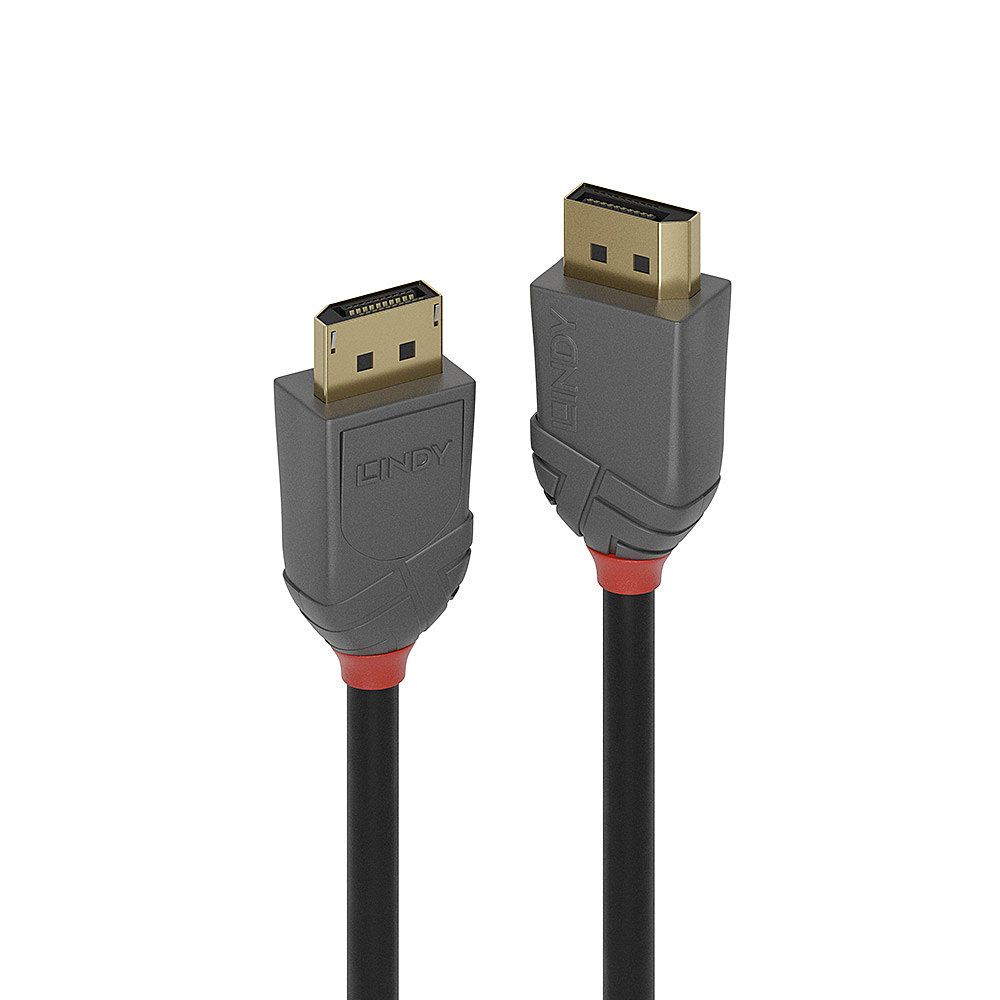

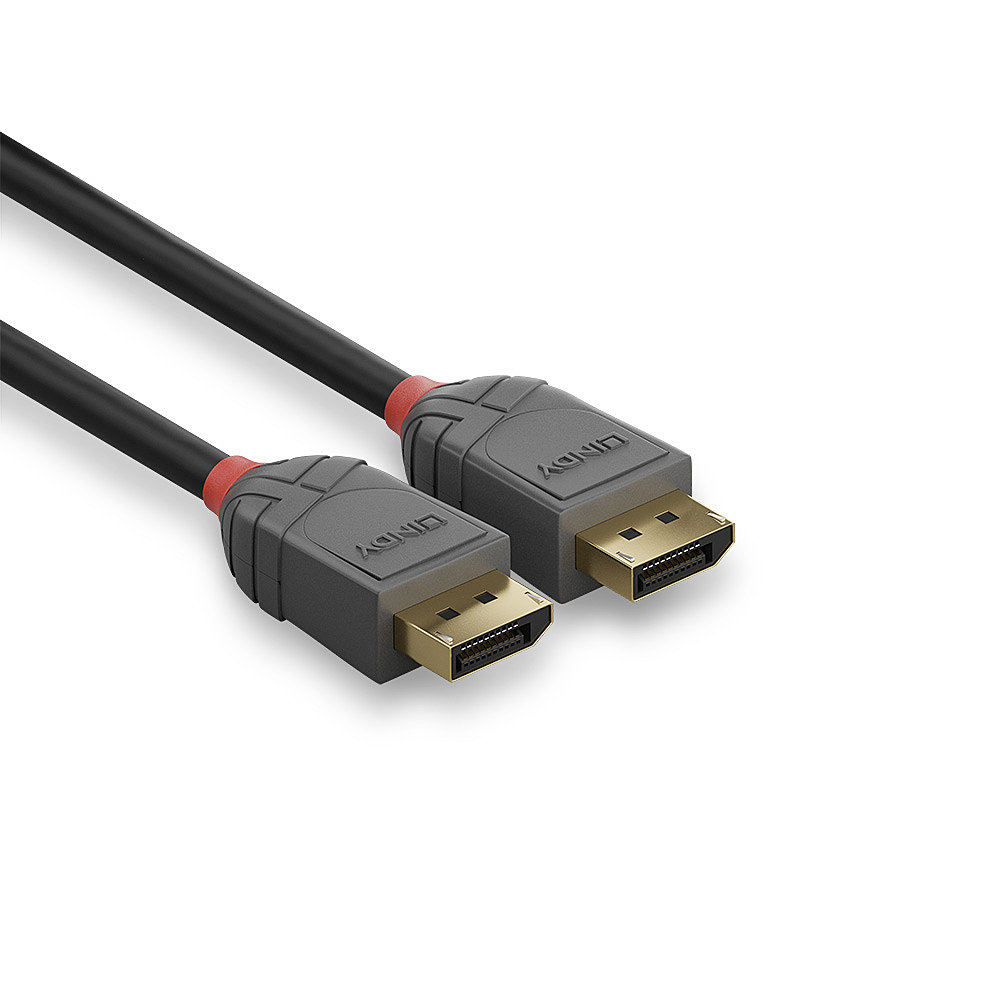

Connector A: DP Male
Connector B: DP Male
Housing Material: ABS
Connector Plating: Gold
Pin Construction: Copper Alloy
Pin Plating: Gold
Dimensions (approx.) WxDxH: 20.4x36.0x12.7mm (0.8x1.42x0.5in)
Cable Construction
Length: 7.5m (24.61ft)
Standard: DP 1.2
Colour: Black
Type: Round
Jacket Diameter: 8.5mm (0.34in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 26AWG
Shielding: Aluminium Magnesium Braid 50%
Specifications
Supported Bandwidth: 21.6Gbps
Maximum Resolution: 4096x2160@60Hz 4:4:4 10bit
Nominal Attenuation:
100MHz - 450MHz > -2.44dB
450MHz - 8100MHZ > -5.094dB
Minimum Band Radius: 85mm (3.35in)
Operating Temperature: -10°C - 80°C (14°F - 176°F)
Storage Temperature: -25°C - 85°C (-13°F - 185°F)
Miscellaneous
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL
Purchasing Information
No.: 36485
EAN: 4002888364850
This product is also available in other lengths
36485 - 7.5m (24.61ft)
36486 - 10m (32.81ft)
