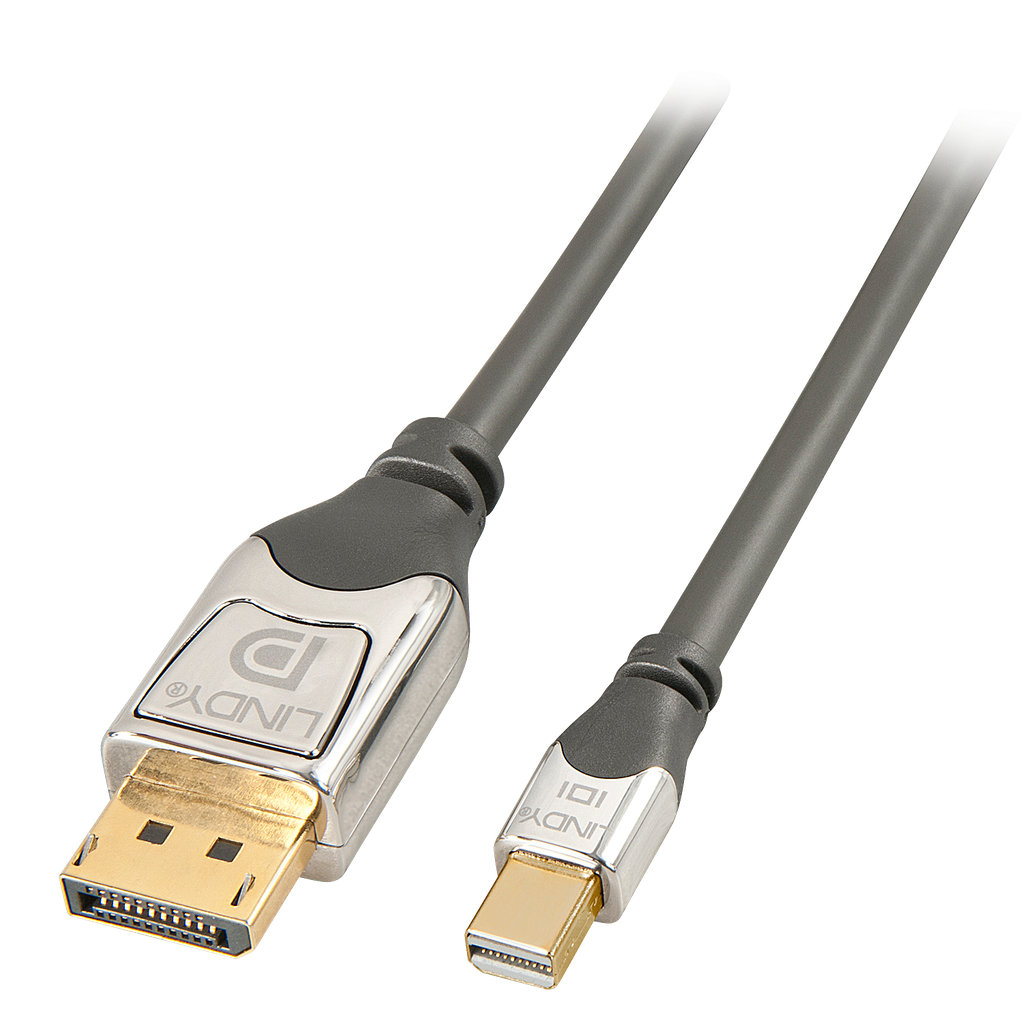

Suurepärane jõudlus ja disain Mini DisplayPort DisplayPort kaabel
-
Toetab UHD eraldusvõime kuni 4K 4096x2160 @ 60Hz 4: 4: 4 10bit
-
Kroomitud disainiga ABS korpus, 24K kullatud pistikud ja kontaktid
-
Kolmekordne varjestatud kaabel, suure jõudlusega,vask 32AWG juhtmed
-
DisplayPort 1.2, 4K, 3D, 21,6Gbps;
CROMO Mini DisplayPort DisplayPort kaablid on saadaval pikkusega 0,5m, 1m, 2m, 3m ja 5m.
Connectors
-
Connector A: Mini DisplayPort Male
-
Connector B: DisplayPort Male
-
Housing Material: Chromed plated ABS
-
Connector Plating: 24K Gold 3µm
-
Pin Construction: Phosphor Bronze
-
Pin Plating: 24K Gold 15µm
-
Dimensions (approx.) WxDxH:
-
Mini DisplayPort: 10x32x7mm (0.39x1.26x0.28in)
-
DisplayPort: 19.7x38.9x12mm (0.77x1.53x0.47in)
Cable Construction
-
Length: 5m (16.40ft)
-
Standard: DisplayPort 1.2
-
Colour: Grey
-
Type: Round
-
Jack Diameter: 6.5mm (0.256)
-
Jack Material: PVC
-
Conductor Material: Tinned Copper
-
Conductor Gauge: 32AWG
-
Shielding: Copper Braid 85%
Specifications
-
Supported Bandwidth: 21.6Gbps
-
Maximum Resolution: 4096x2160@60Hz 4:4:4 10bit
-
Nominal Attenuation:
-
300kHz-825MHz <5dB
-
825MHz-2.475GHz <5dB
-
2.475GHz-4.125GHz <12dB
-
4.125GHz-5.1GHz <20dB
-
Minumum Band Radius: 55mm (2.17in)
-
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
-
Storage Temperature: -25°C - 85°C (-13°F - 185°F)
