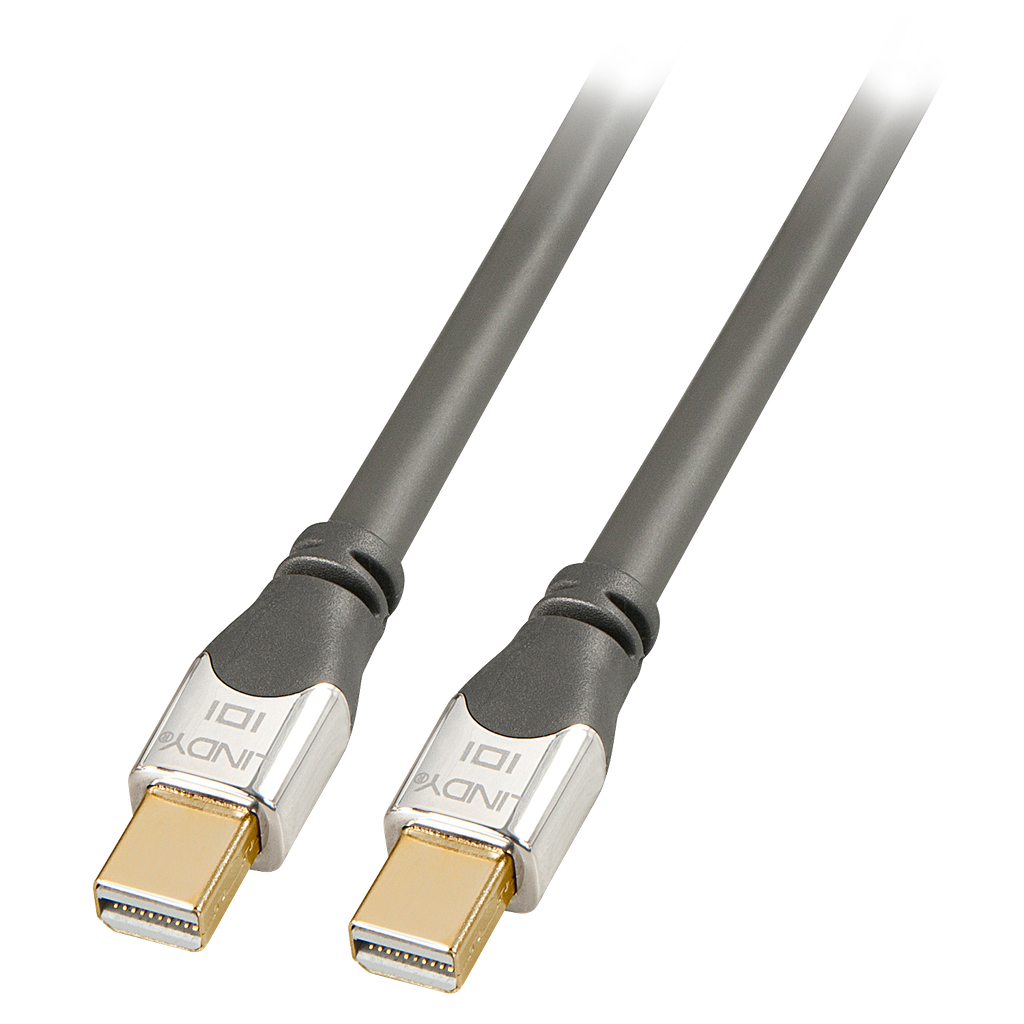

Mini DisplayPort kaabel 2.0m, 4K 4096x2160@60Hz, CROMO

Mini DisplayPort kaabel 2.0m, 4K 4096x2160@60Hz, CROMO

Connectors

Connector A: Mini DisplayPort Male
Connector B: Mini DisplayPort Male
Housing Material: Chromed plated ABS
Connector Plating: 24K Gold 3µm
Pin Construction: Phosphor Bronze
Pin Plating: 24K Gold 15µm
Dimensions (approx.) WxDxH: 10x32x7mm (0.39x1.26x0.28in)

Cable Construction

Length: 2m (6.56ft)
Standard: DisplayPort 1.2
Colour: Grey
Type: Round
Jack Diameter: 5.5mm (0.22in)
Jack Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 32AWG
Shielding: Copper Braid 85%

Specifications

Supported Bandwidth: 21.6Gbps
Maximum Resolution: 4096x2160@60Hz 4:4:4 10bit
Nominal Attenuation:
300kHz-825MHz <5dB
825MHz-2.475GHz <5dB
2.475GHz-4.125GHz <12dB
4.125GHz-5.1GHz <20dB
Minumum Band Radius: 55mm (2.17in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -25°C - 85°C (-13°F - 185°F)
ATC Approved: -

23,35 € (ilma km-ta)

Frame rate
- 60
Length
- 2 m
Picture resolution
- 4096x2160
Weight
- 0.14 kg

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Manufacturer Part Number: 36307
Tootekood: EE-100-179-508

Spetsifikatsioon

Frame rate	60
Length	2 m
Picture resolution	4096x2160
Weight	0.14 kg
