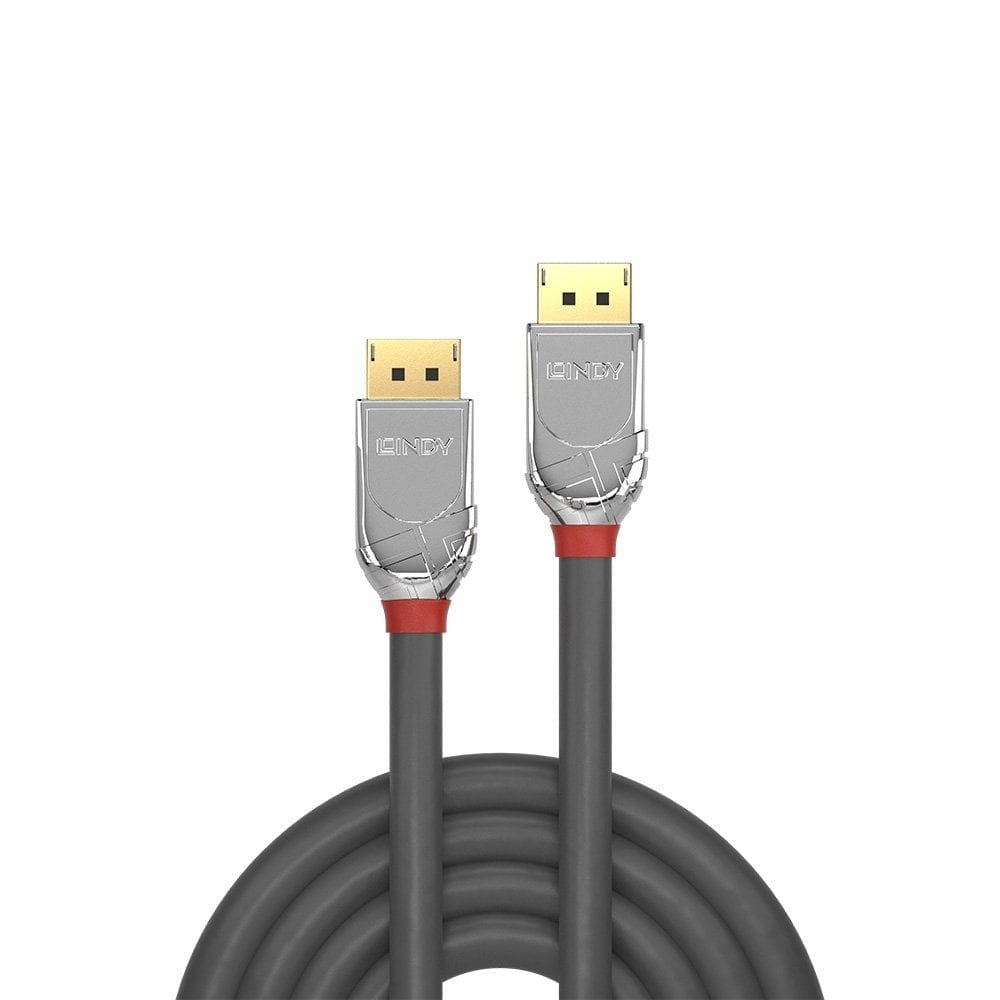

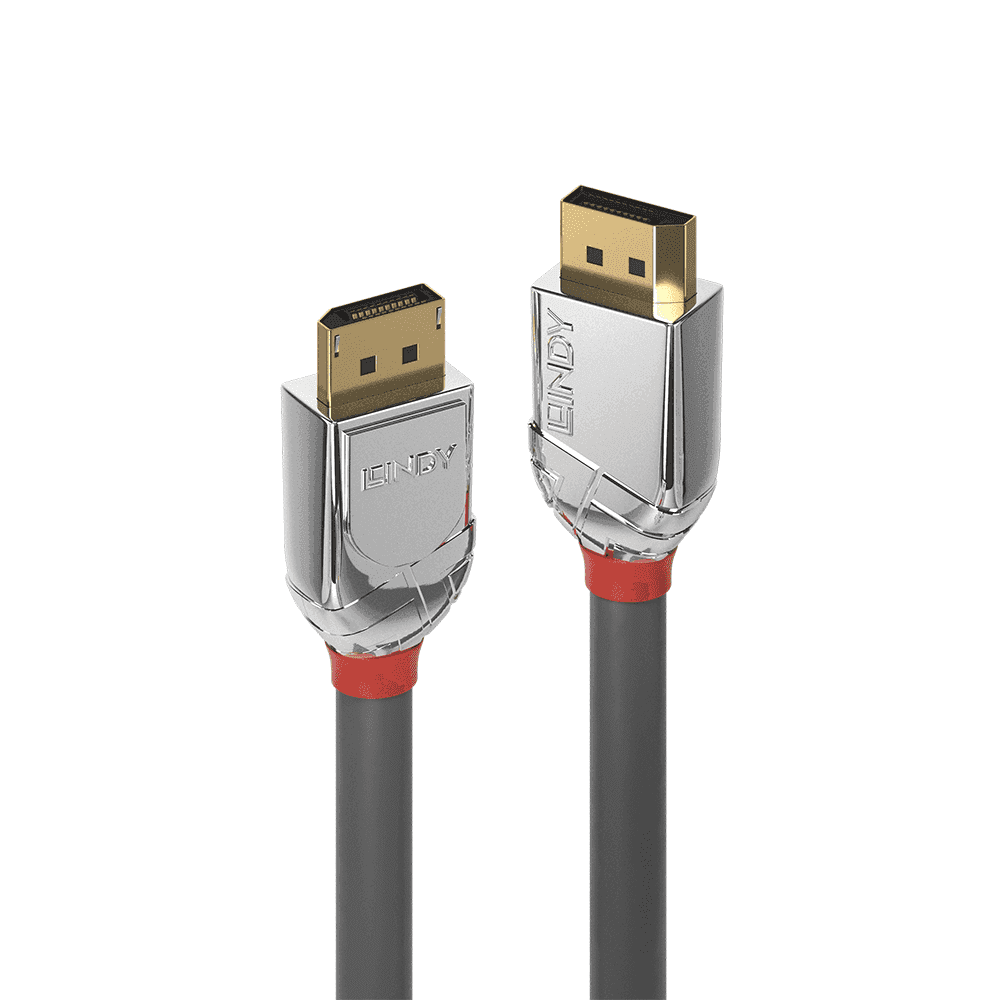

DisplayPort kaabel 1.0m, 1.4, 8K 7680x4320@60Hz, CROMO

Connectors:
  • Connector A: DisplayPort Male
  • Connector B: DisplayPort Male
  • Housing Material: Chrome Plated ABS Plastic
  • Connector Plating: 24K Gold 3µm
  • Pin Construction: Phosphor Copper
  • Pin Plating: 24K Gold 15µm
  • Dimensions, (approx.) WxDxH: 19.7x12x38.9mm (0.77x0.47x1.53in)
Cable Construction:
  • Length: 1m (3.28ft)
  • Standard: DisplayPort 1.4
  • Colour: Grey
  • Type: Round
  • Jacket Diameter: 7.3mm (0.29in)
  • Jacket Material: PVC
  • Conductor Material: Tinned copper
  • Conductor Gauge: 28AWG
  • Shielding: Copper Braid, 85%
Specifications:
  • Supported Bandwidth: 32.4Gbps
  • Maximum Resolution: 7680x4320@60Hz 4:2:2 8bit
  • Nominal Attenuation: 300kHz-825MHz <5dB, 825MHz-2.475GHz <5dB, 2.475GHz-4.125GHz <12dB, 4.125GHz-5.1GHz <20dB
  • Minimum Bend Radius: 73mm (2.87in)
  • Operating Temperature: -20°C - 80°C (-4°F - 176°F)
  • Storage Temperature: -25°C - 85°C (-13°F - 185°F)
Miscellaneous:
  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH, UL
21,61 € 21,61 € (ilma km-ta)

  • AV connector
  • Frame rate
  • Length
  • Picture resolution
  • Weight
 Lisa ostukorvi
Lisa soovinimekirja
Müügitingimused
Hinnad ei sisalda käibemaksu.

Manufacturer Part Number: 36301
Tootekood: EE-100-179-502

Spetsifikatsioon

AV connector DisplayPort
Frame rate 60
Length 1 m
Picture resolution 7680x4320
Weight 0.07 kg
