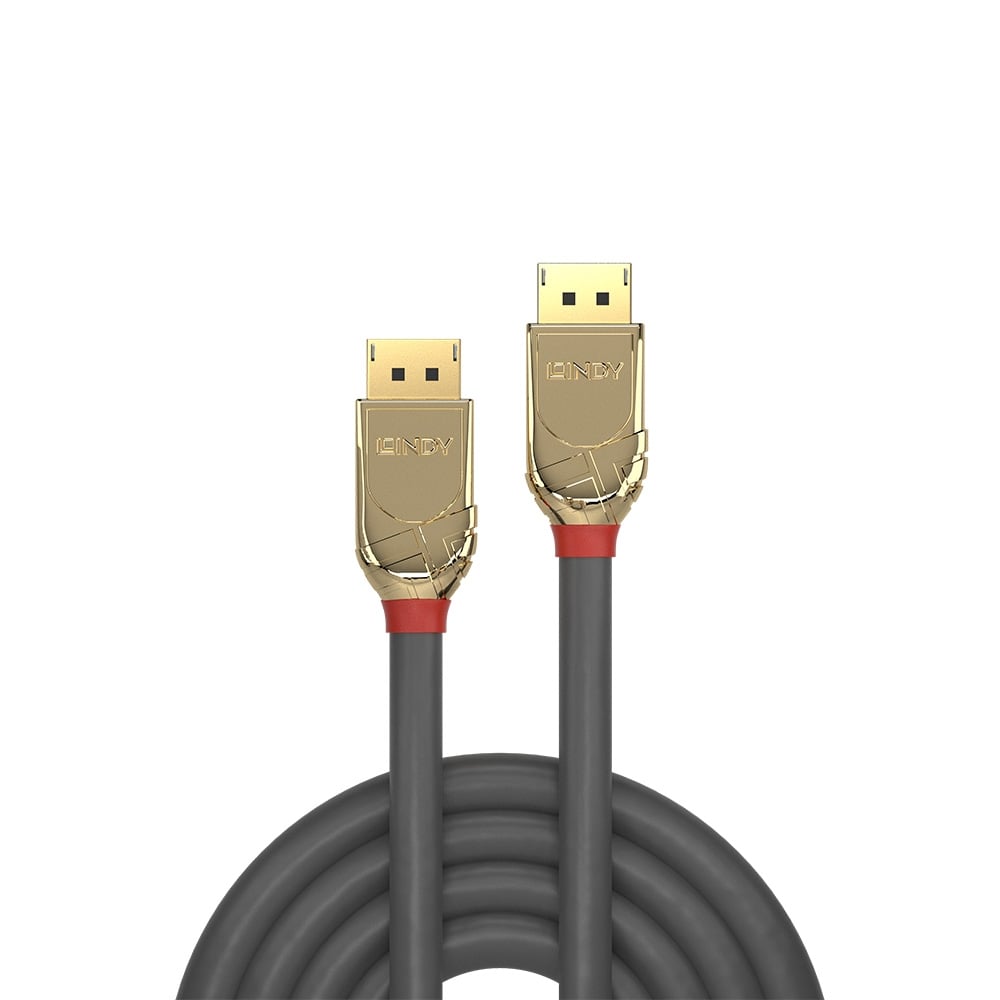

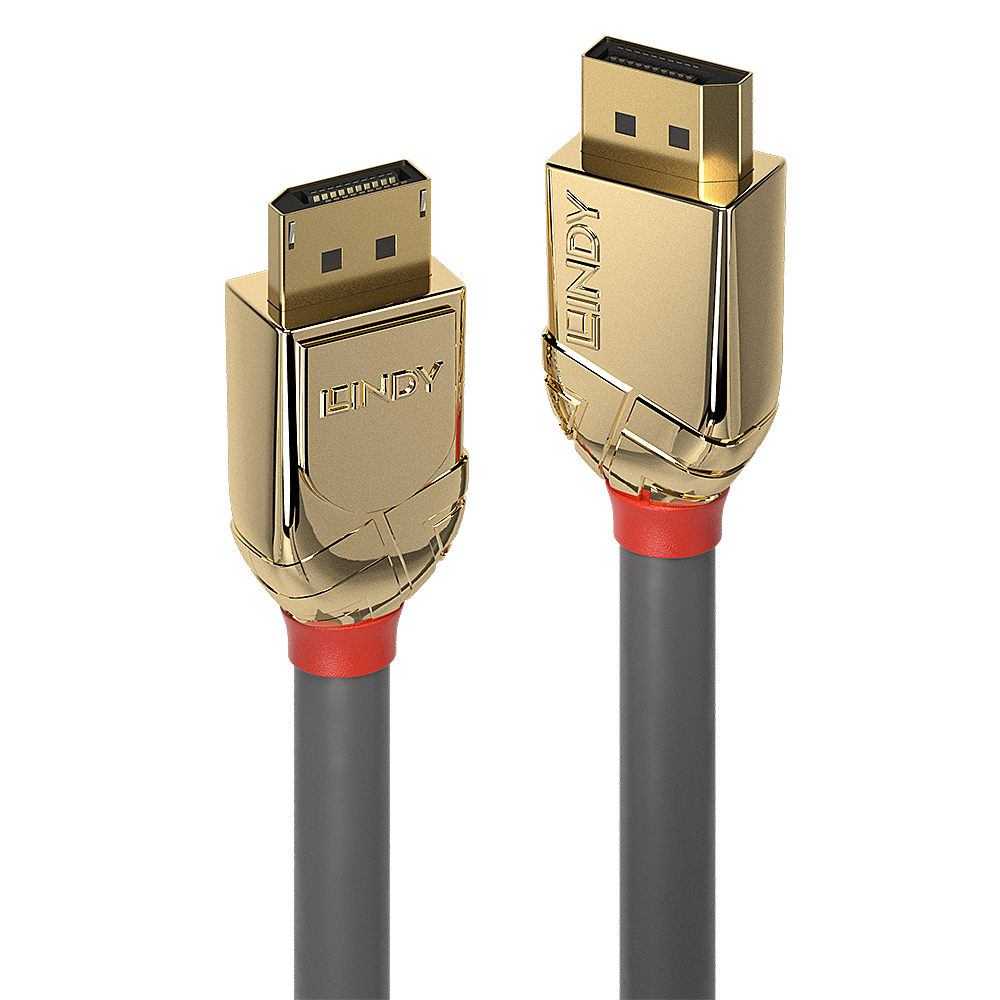

DisplayPort kaabel 7.5m, 1.2, 4K UHD 4096x2160@60Hz, GOLD

DisplayPort kaabel 7.5m, 1.2, 4K UHD 4096x2160@60Hz, GOLD

Connectors

Connector A: DisplayPort Male
Connector B: DisplayPort Male
Housing Material: 24 Gold Plated Zinc Alloy
Connector Plating: 24K Gold 3µm
Pin Construction: Phosphor Bronze
Pin Plating: 24K Gold 15µm
Dimensions (approx.) WxDxH: 19.7x12x38.9mm (0.77x0.47x1.53in)

Cable Construction

Length: 7.5m (24.61ft)
Standard: DisplayPort 1.2
Colour: Grey
Type: Round
Jacket Diameter: 9mm (0.35in)
Jacket Material: PVC
Conductor Material: OFC Copper
Conductor Gauge: 24AWG
Shielding: Copper Braid 85%

Specifications

Supported Bandwidth: 21.6 Gbps
Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
Nominal Attenuation: 300kHz-825MHz
Minimum Bend Radius: 90mm (3.5in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -25°C - 80°C (-13°F - 176°F)

106,34 € (ilma km-ta)

AV connector
- DisplayPort
Frame rate
- 60
Length
- 7.5 m
Picture resolution
- 4096x2160
Weight
- 0.54 kg

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Manufacturer Part Number: 36295
Tootekood: EE-100-179-497

Spetsifikatsioon

AV connector	DisplayPort
Frame rate	60
Length	7.5 m
Picture resolution	4096x2160
Weight	0.54 kg
