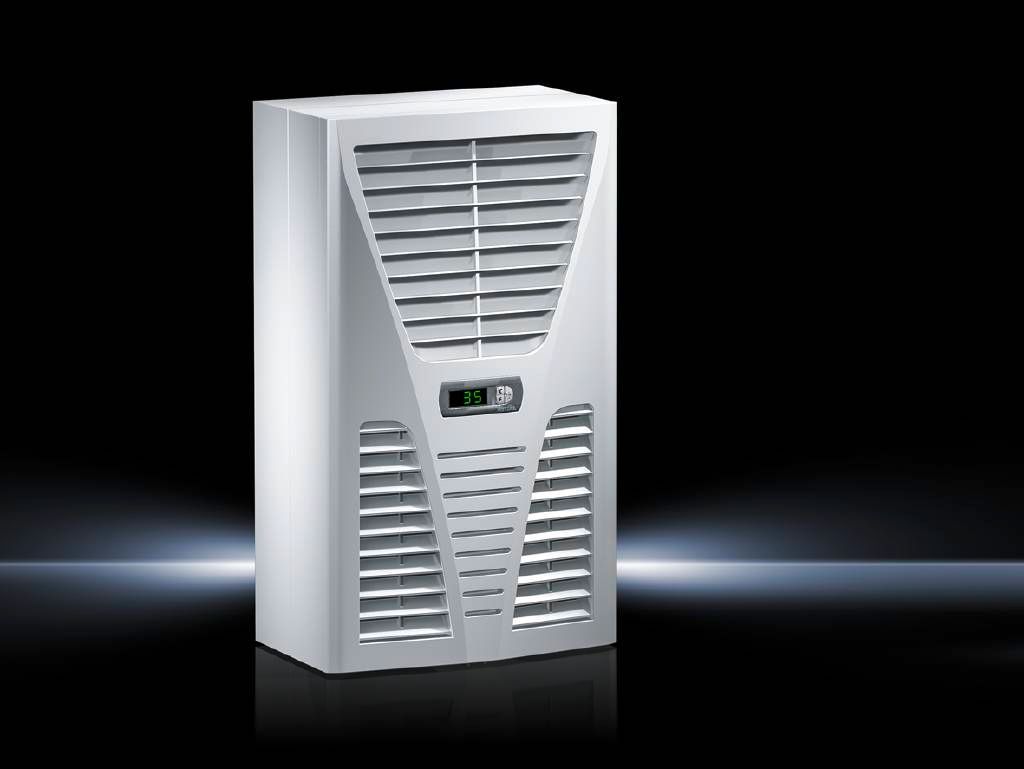

Energiasäästlikud Blue e seinale paigaldatavad jahutusseadmed võimsuskategooriates 300 W kuni 4000 W, kondensaatori RiNano kattega ja integreeritud elektrilise kondensaadi aurustiga (alates 1000 W). Saadaval erivormingutes "horisontaalne" ja "tasane".
|
Description: |
Energy-efficient Blue e wall-mounted cooling units with integral e-Comfort controller and RiNano coating on the condenser as standard. |
|---|
|
Benefits: |
May be linked to the IoT interface via the Blue e IoT adaptor |
|---|
|
Material: |
Sheet steel |
|---|
|
Colour: |
RAL 7035 |
|---|
|
Protection category IP to IEC 60 529: |
External circuit IP 34
Internal circuit IP 54 |
|---|
|
Supply includes: |
Nano-coated condenser
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts |
|---|
|
Note: |
The technical specifications for the wall-mounted cooling unit 3361.540 apply with an external transformer connected. |
|---|
|
Variant: |
wall-mounted |
|---|
|
Total cooling output to DIN EN 14511: |
L 35 L 35 at 50 Hz: 0.85 kW
L 35 L 35 at 60 Hz: 0.89 kW
L 35 L 50 at 50 Hz: 0.67 kW
L 35 L 50 at 60 Hz: 0.67 kW |
|---|
|
Air throughput (unimpeded air flow): |
External circuit: 550 m³/h
Internal circuit: 230 m³/h |
|---|
|
Rated operating voltage: |
230 V, 1~, 50 Hz/60 Hz |
|---|
|
Dimensions: |
Width: 280 mm
Height: 550 mm
Depth: 280 mm |
|---|
|
Temperature control: |
e-Comfort controller (factory setting +35 °C) |
|---|
|
Temperature range: |
Operation (environment): +10 °C...+55 °C
Operating temperature (max.) 60 Hz: +53 °C
Setting range: +20 °C...+55 °C |
|---|
|
Refrigerant/cooling medium: |
Refrigerant: R134a
Quantity: 280 g
Global Warming Potential (GWP): 1430
CO? equivalent (CO?e): 0.4 t |
|---|
|
Power consumption Pel: |
L 35 L 35 at 50 Hz: 0.4 kW
L 35 L 35 at 60 Hz: 0.43 kW
L 35 L 50 at 50 Hz: 0.47 kW
L 35 L 50 at 60 Hz: 0.5 kW |
|---|
|
Rated current max.: |
At 50 Hz: 2.7 A
At 60 Hz: 2.7 A |
|---|
|
Start-up current max.: |
At 50 Hz: 6 A
At 60 Hz: 9.6 A |
|---|
|
Miniature circuit-breaker/fuse: |
10 A |
|---|
|
Permissible operating pressure (p. max.): |
28 bar |
|---|
