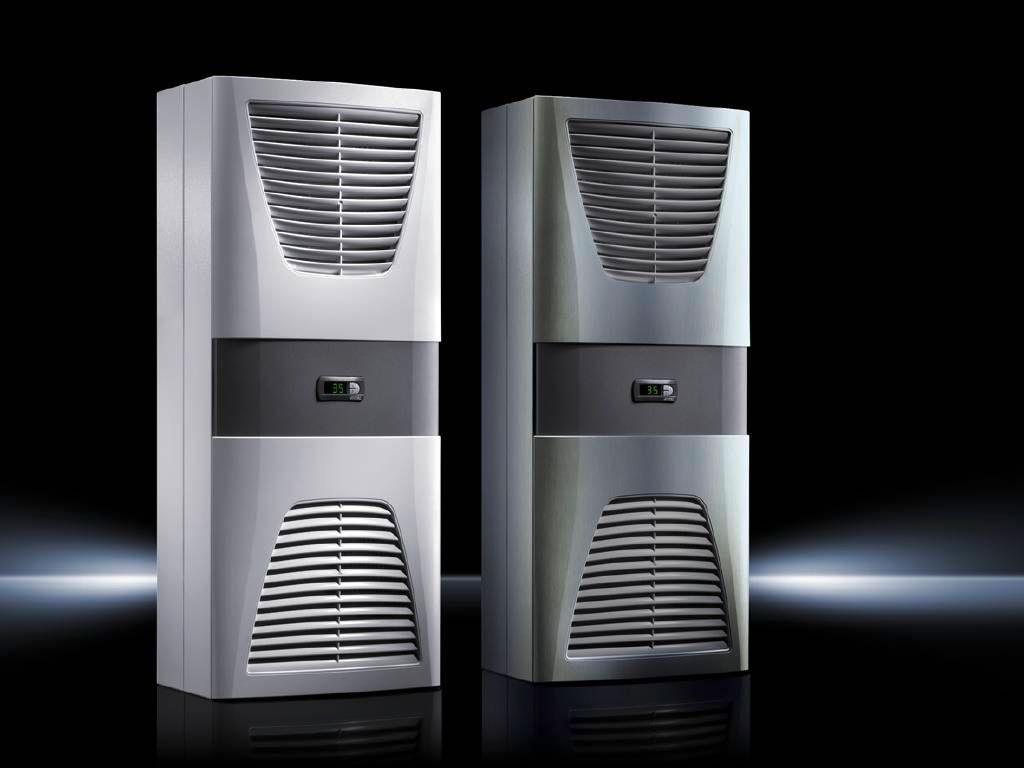

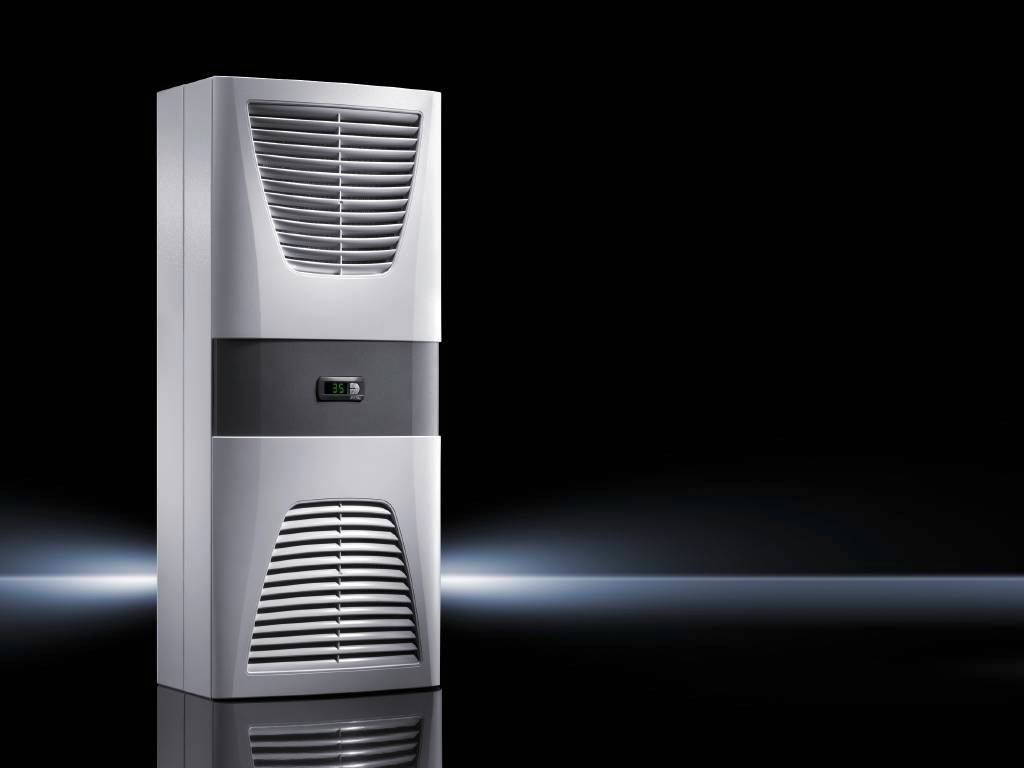

Energiasäästlikud Blue e seinale paigaldatavad jahutusseadmed võimsuskategooriates 300 W kuni 4000 W, kondensaatori RiNano kattega ja integreeritud elektrilise kondensaadi aurustiga (alates 1000 W). Saadaval erivormingutes "horisontaalne" ja "tasane"
|
Material: |
Sheet steel |
|---|
|
Colour: |
RAL 7035 |
|---|
|
Protection category IP to IEC 60 529: |
External circuit IP 34
Internal circuit IP 54 |
|---|
|
Supply includes: |
Nano-coated condenser
Integral electric condensate evaporation
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts |
|---|
|
Total cooling output to DIN EN 14511: |
L 35 L 35 at 50 Hz: 1.6 kW
L 35 L 35 at 60 Hz: 1.76 kW
L 35 L 50 at 50 Hz: 1.25 kW
L 35 L 50 at 60 Hz: 1.37 kW |
|---|
|
Air throughput (unimpeded air flow): |
External circuit: 805 m³/h
Internal circuit: 585 m³/h |
|---|
|
Rated operating voltage: |
230 V, 1~, 50 Hz/60 Hz |
|---|
|
Dimensions: |
Width: 400 mm
Height: 950 mm
Depth: 260 mm |
|---|
|
Temperature control: |
e-Comfort controller (factory setting +35 °C) |
|---|
|
Temperature range: |
Operation (environment): +10°C...+55°C
Setting range: +20°C...+55°C |
|---|
|
Refrigerant/cooling medium: |
Refrigerant: R134a
Quantity: 500 g
Global Warming Potential (GWP): 1430
CO? equivalent (CO?e): 0.72 t |
|---|
|
Power consumption Pel: |
L 35 L 35 at 50 Hz: 0.87 kW
L 35 L 35 at 60 Hz: 0.98 kW
L 35 L 50 at 50 Hz: 1.03 kW
L 35 L 50 at 60 Hz: 1.15 kW |
|---|
|
Rated current (max.): |
At 50 Hz: 5.5 A
At 60 Hz: 5.8 A |
|---|
|
Start-up current max.: |
At 50 Hz: 12 A
At 60 Hz: 14 A |
|---|
|
Miniature circuit-breaker/fuse: |
16 A |
|---|
|
Permissible operating pressure (p. max.): |
28 bar |
|---|
|
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: |
1.83 |
|---|
