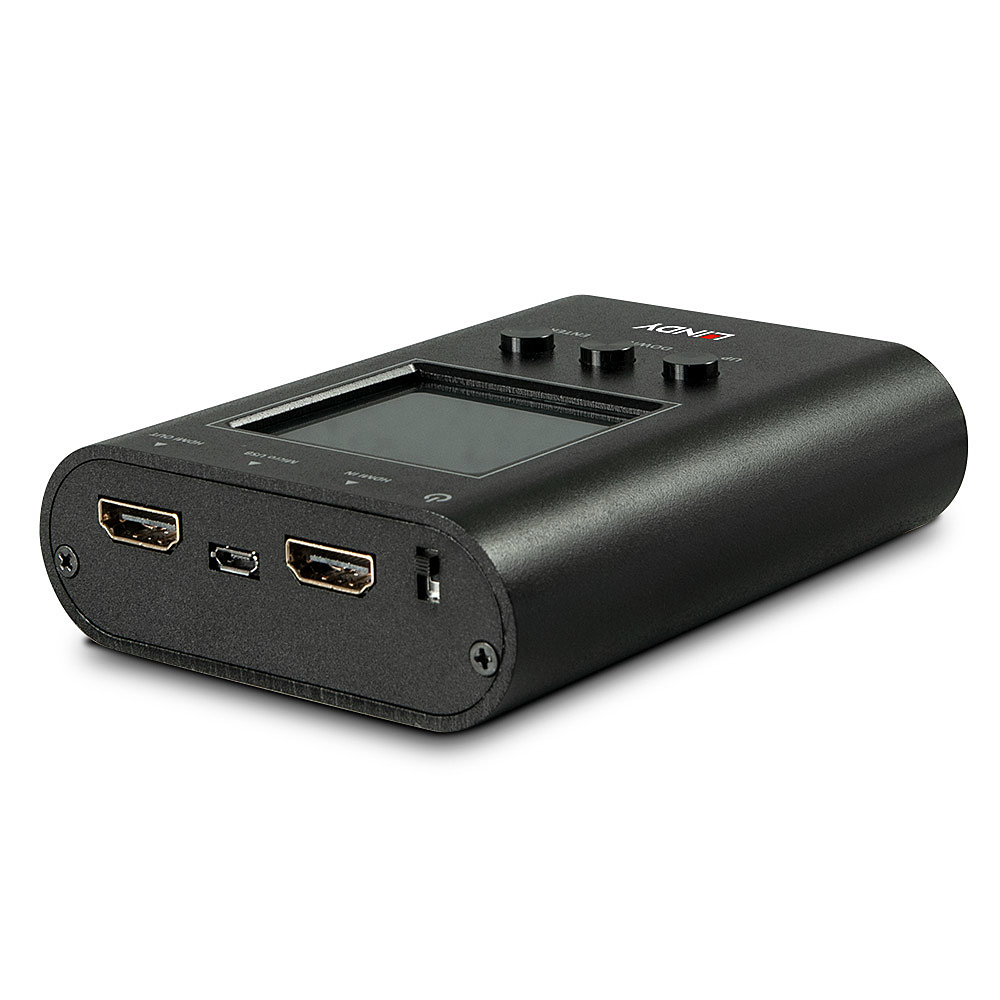

HDMI tester 2.0, 18G

HDMI tester 2.0, 18G

Testib HDMI-signaali tee kõiki etappe, sealhulgas kaabli kvaliteeti
Loo HDMI 2.0 4K @ 60Hz signaalid, et testida kuvarite ühilduvust
Tuvastage HDMI signaali teave, näiteks resolutsioonid ja HDCP versioonid
Kompaktne, kaasaskantav, mis sobib suurepäraselt põllul asuvatele paigaldajatele

Specifications

AV Interface: HDMI
Interface Standard: HDMI 2.0
Supported Bandwidth: 18Gbps
Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
Adjustable Colour Depths: 8bit, 10bit, 12bit, 16bit
HDCP Support: 2.2 and 1.4
Video Patterns: 3840x2160@60Hz, 1920x1080@60hz, 1280x720@60Hz
Control: Push Button
Special Features: HDR Support, Updatable via Firmware

Connectors

Input: HDMI Type A (Female)
Output: HDMI Type A (Female)
Other Connections: USB Micro-B (Female)
Power: Rechargeable battery
Physical Properties
Dimensions (approx.) WxDxH: 130x89x14mm (5.12x3.5x0.55in)
Housing Material: Metal
Net Weight: 0.22kg (0.49lb)
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 20~90% RH (non condensing)
Power Requirements: 5W
Colour: Black

Miscellaneous

Packaging Type: Carton Box
Packaging Dimensions: 420x400x300mm (16.54x15.75x11.81in)
Gross Weight: 0.430kg (0.95lb)

Package Contents

HDMI 2.0 18G Signal Analyser and Generator
Lindy Manual

405,40 € (ilma km-ta)

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

LINDY_32675_Man_0918[1].pdf

Manufacturer Part Number: 32675
Tootekood: EE-100-179-383

Spetsifikatsioon

Weight

1.1 kg
