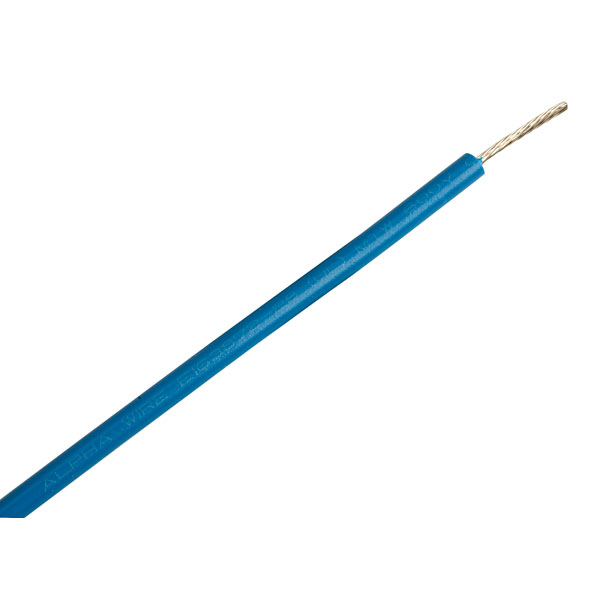

Montaažijuhe 0,82mm², sinine AWG18 UL1007/1569 305m

Name: [3055 BL001] Montaažijuhe 0,82mm², sinine AWG18 UL1007/1569 305m
SKU: EE-100-155-288
Price: 102.29 EUR
Availability: InStock

Alpha Wire 300 V PVC montaazijuhe

Tinatatud vaskjuhe sobib kasutamiseks paljudes erinevates rakendustes

Juhe on kergesti käsitletav ja kooritav.

Saadaolevad pikkused on 100ft (30,5m) ja 1000ft (305m).

Vastab standarditeleUL AWM 1007, 1581, 1569 VW-1, CSA AWM I A/B FT1, CSA TR-64 FT1

Attribute	Value
Cross Sectional Area	0.81 mm²
Sheath Colour
American Wire Gauge	18 AWG
Core Strands	16/0.25 mm
Insulation Material	PVC
Outer Diameter	2.01mm
Length
Voltage Rating	300 V
Conductor Material	Tinned Copper
Wire Style	UL1007
Maximum Operating Temperature	+105°C
Minimum Operating Temperature	-40°C
Fire Behaviour	Flame Retardant
Shield Type	Unshielded
Series	Premium
Standards Met	UL Listed
Insulation Wall Thickness	0.4mm

102,29 € (ilma km-ta)

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

UPL_3055.pdf

Manufacturer Part Number: 3055 BL001
Tootekood: EE-100-155-288

Weight

3.3 kg
