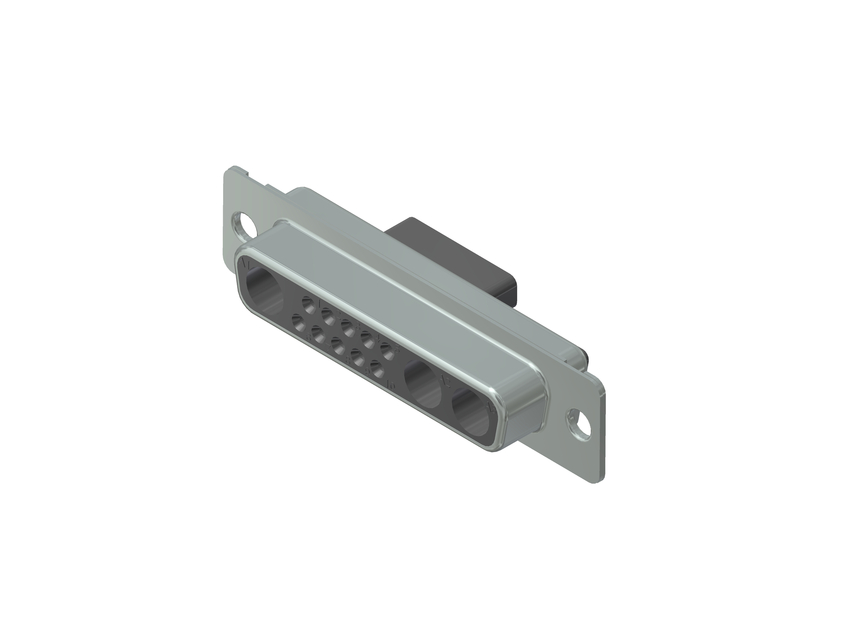

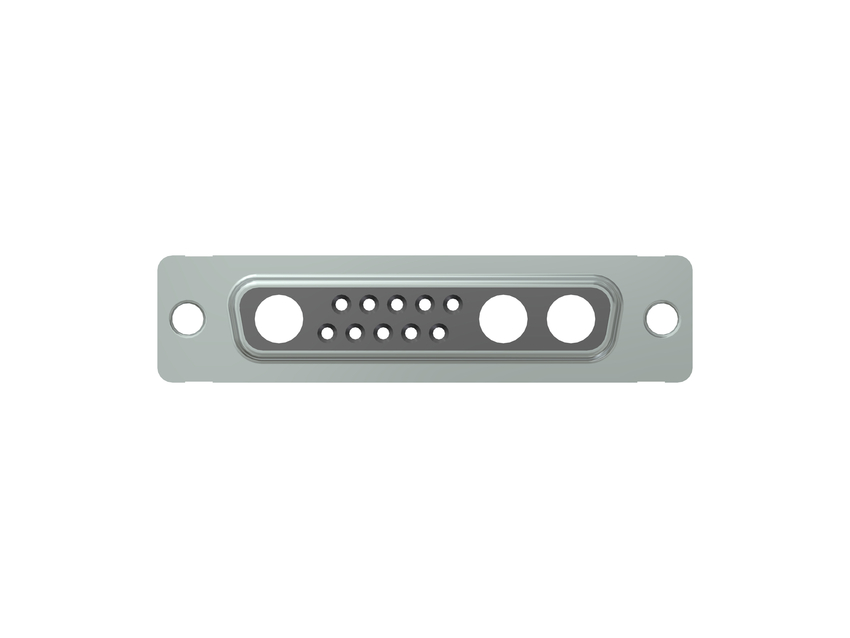

See D-SUB pistik on universaalne 13-positsiooniline pesa, mis on loodud usaldusväärsete ja vastupidavate ühenduste jaoks. Krimpimine tagab turvalise ja tõhusa juhtmestiku. Tugev konstruktsioon võimaldab lihtsat paigaldamist trükkplaatidele. Lai töötemperatuurivahemik -55 °C kuni +125 °C muudab selle pistiku sobivaks nõudlikes keskkondades.
General Data
Product typeD-SUB Combination Standard
Contact typeSocket
Size/Number of positions13W3 [○•••••••••○○]
Termination signal [e.g. clamp, crimp, solder, SMT]Crimp
Hardware options termination sideThrough hole
Technical Data
Dielectric with standing voltage signal1000 V
Dielectric with standing voltage power1000 V
min. working temperature-55° C
max. working temperature+125° C
Working voltage signal250 V
Working voltage power250 V
Insertion force55 N
Extraction force23 N
Material Data
Insulator materialPBT GF UL 94 V-0
Insulator colorGreen
Shell materialSteel
Shell platingTin
Signal contact materialCopper alloy
Plating signal contact (mating area)Gold over nickel
Mounting option materialCopper Alloy
Plating mounting optionNickel
Standards
Standard mating cyclesIEC 60807-2
Standard IP ratingIEC 60807-2
Standard current ratingIEC 60807-2
Standard insertion / extraction forceIEC 60807-2
Standard dielectric voltageIEC 60807-2
Standard working voltageIEC 60807-2
