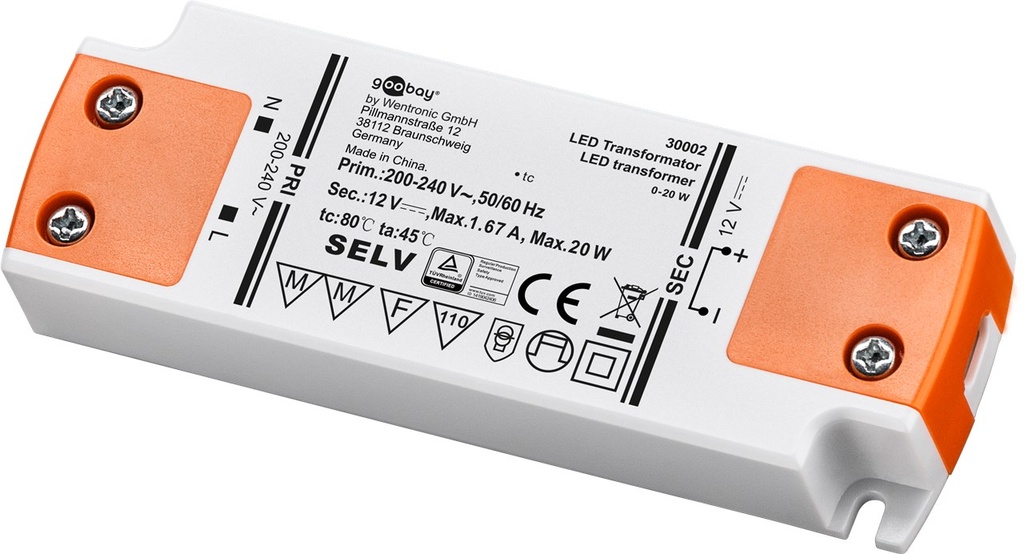

LED trafo 12 V (alalisvool), 20 W

LED trafo 12 V (alalisvool), 20 W

Performance

max. performance 20 W
No-load power consumption 0.5 W
Dimmability not dimmable
minimum load 0

Device connections

Input, Voltage Range 200 - 240 (AC) V
Input, type Screw clamp
Output, type Screw clamp
Output, max. amperage 1.67 A
Output, voltage (DC) 12 V (DC)
number of inputs 2 pcs.
Input Cross Section 0.75 mm²
Output Cross Section 0.75 mm²
Output, max. amperage 1670 mA
Number of outputs 2 ports

General

Packaging type Retail Box
Consumption Unit 1 pc. in cardboard box
Color orange, white
protection class IP20
Appliance Class II
Markings WEEE, CE, bauartgeprüft: TÜV Rheinland
Operating temperature from -20 °C
Operating temperature up to 45 °C
Length 103 mm
Width 35.5 mm
Height 16 mm
Weight 55 g

17,42 € (ilma km-ta)

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

UPL_WEN30002_Data-Sheet.pdf UPL_WEN30002_Manual.pdf

Manufacturer Part Number: 30002
Tootekood: EE-100-194-779

Spetsifikatsioon

Weight

0.174 kg
