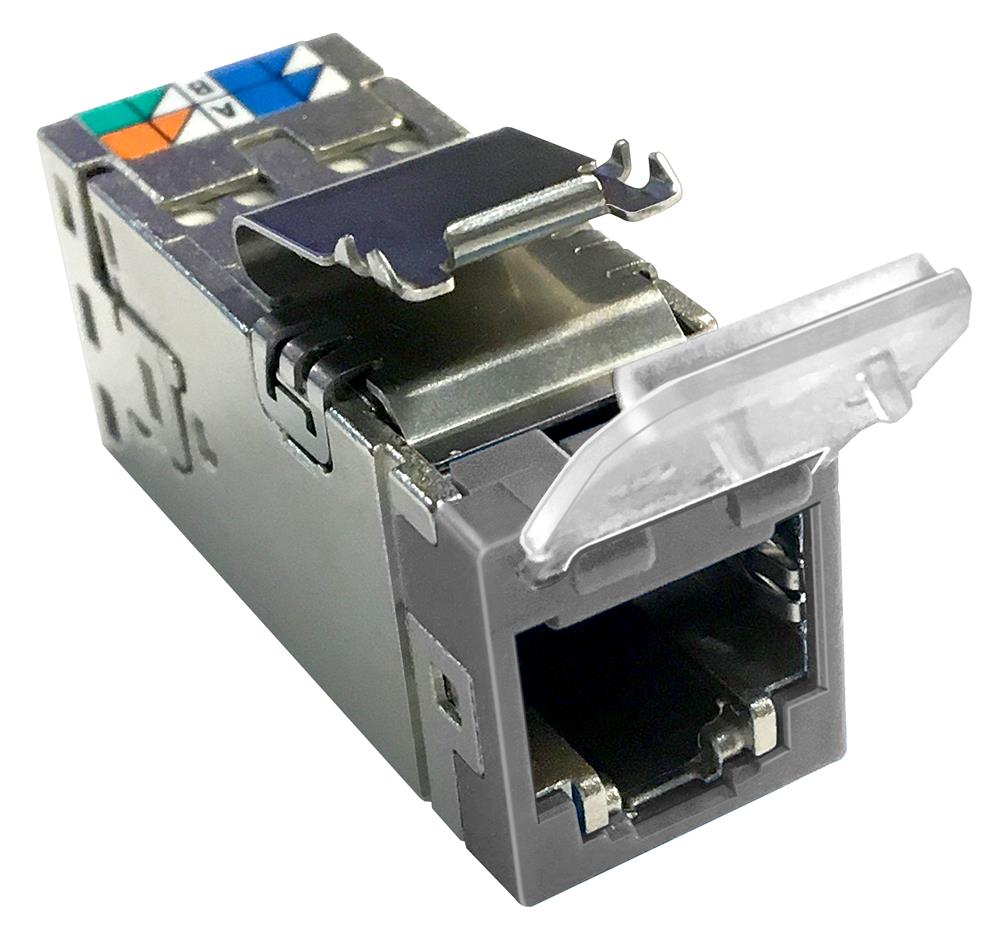

Modularpesa RJ45 Cat6a SLX varjestatud tolmuluugiga hall

Product Series	SLX Series
Product Type	Modular jack
Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America

Dimensions
Compatible Cable Diameter, maximum	9.00 mm \| 0.35 in
Compatible Insulated Conductor Diameter, maximum	1.600 mm \| 0.063 in
Depth	36.80 mm \| 1.45 in
Height	16.13 mm \| 0.64 in
Width	14.44 mm \| 0.57 in

Electrical Specifications
ANSI/TIA Category	6A
Transmission Standard	ANSI/TIA-568-C.2 \| ISO/IEC 11801 Class EA

Environmental Specifications
Flammability Rating	UL 94 V-0
Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)

General Specifications
Cable Type	F/FTP (shielded) \| S/FTP (shielded) \| S/STP (shielded)
Color	Gray
Mount Type	Keystone faceplates and panels \| SL Series faceplates and panels
Package Quantity	24
Packaging Type	Bag \| Box
Panel Cutout, recommended	14.78 x 20.07 mm (0.58 x 0.79 in)
Panel Thickness, recommended	1.60 mm

Mechanical Specifications
Conductor Gauge, solid	26–22 AWG
Conductor Gauge, stranded	26–24 AWG
Conductor Type	Solid \| Stranded
Contact Base Material	Beryllium copper
Contact Plating Material	Gold
Contact Plating Thickness	1.27 µm
Material Type	Polycarbonate \| ZMAC 5
Outlet Type	Standard
Termination Tool	SL Termination tool
Termination Type	IDC
Wiring	T568A \| T568B

7,00 € (ilma km-ta)

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

Manufacturer Part Number: 2153365-4
Tootekood: EE-100-169-575

Weight

0.03 kg
