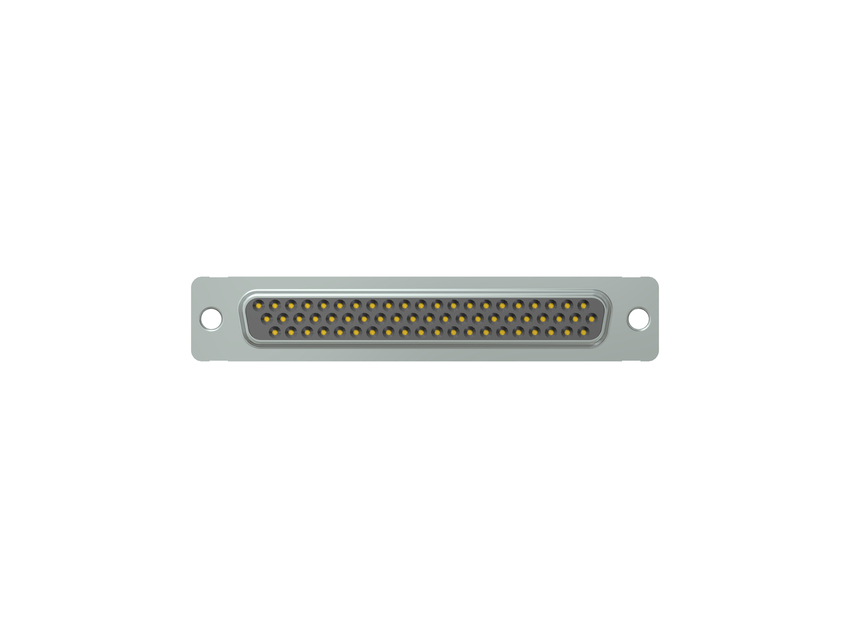

See vastupidav D-SUB suure tihedusega pistik on loodud nõudlike rakenduste jaoks. Jootmine tagab kindla ja vastupidava ühenduse. Kõrge 1000 V pingetaluvuse ja laia töötemperatuurivahemikuga -55 °C kuni +125 °C on see pistik loodud taluma karme tingimusi. IP20 kaitseaste tagab põhilise kaitse tahkete esemete eest, samas kui kvaliteediklass 3 tagab järjepideva jõudluse. See 62-positsiooniline pistik sobib erinevate tööstus- ja kaubandusrakenduste jaoks.
General Data
Product typeD-SUB High Density
Contact typeSocket
Size/Number of positions62-pos.
Termination signal [e.g. clamp, crimp, solder, SMT]Solder cup
Hardware options termination sideThrough hole
Material Data
Insulator materialPBT GF UL 94 V-0
Insulator colorBlack
Shell materialSteel
Shell platingTin
Signal contact materialCopper alloy
Plating signal contact (termination area)Gold over nickel
Plating signal contact (mating area)Gold over nickel
Mounting option materialSteel
Plating mounting optionNickel
Technical Data
Dielectric with standing voltage signal1000 V
Working voltage signal60 V
Quality classQuality class 3
Mating cycles50
IP ratingIP 20
Current rating signal3 A
Insertion force<170 N
Extraction force<170 N
Contact resistance standard10 mOhm
min. working temperature-55° C
max. working temperature+125° C
Specifications
Standard mating cyclesIEC 60807-2
Standard insertion / extraction forceIEC 60807-2
Standard dielectric voltageIEC 60807-2
Standard working voltageIEC 664-1
Certificates
Product CSA approvedCSA File: LR 115000-1
Product UL approved [UL File]E202784
