Product description

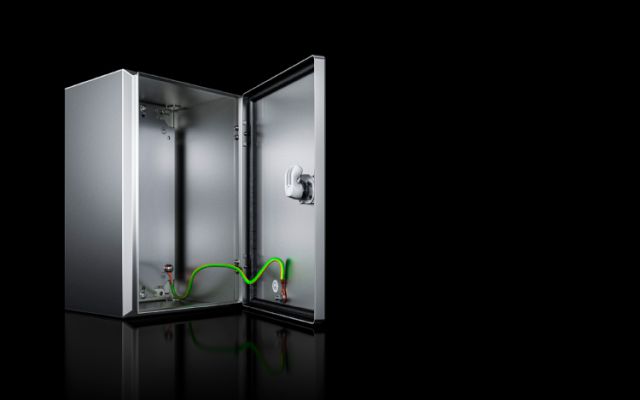

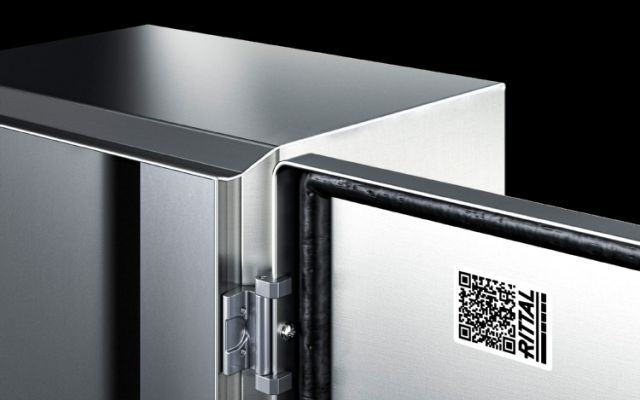

The stainless steel E-Box KX provides user-friendly assembly as well as flexibility when choosing your lock system. The 180° hinges supplied as standard provide excellent accessibility to the enclosure interior.
Material
Enclosure: Stainless steel
Door: Stainless steel, all-round foamed-in PU seal
Mounting plate: Sheet steel
Stainless steel 1.4301 (AISI 304)
Surface finish
Enclosure and cover: Brushed, grain 180
Mounting plate: Zinc-plated
Supply includes
Mounting plate

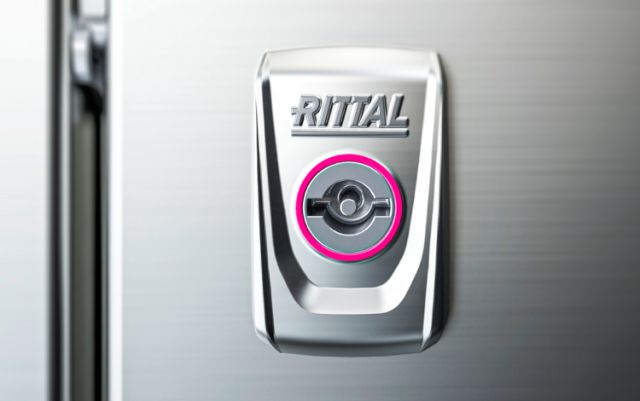

Cam lock with 3 mm double-bit insert
Protection category to IEC 60 529
IP 65
Type rating to UL 50E
Type 1
Type 3R
Type 3RX
Type 4
Type 4X
Type 12
Dimensions
Width: 380 mm
Height: 300 mm
Depth: 155 mm
Dimensions mounting plate (W x H)
365 mm x 275 mm
Material thickness - enclosure
1.25 mm
Material thickness - door
1.25 mm
Lock
Number of locks: 1
Basic material
Stainless steel 1.4301 (AISI 304)
Packs of
1 pc(s).
Net weight
6.4 kg
Gross weight
6.5 kg
Customs tariff number
94032080
EAN
4028177919143
ETIM 9
EC000261
ETIM 8
EC000261
ECLASS 8.0
27180101
Product description
KX E-Box, WHD: 380x300x155 mm, stainless steel 1.4301, with mounting plate, single-door, with cam lock
