See vastupidav IP67 D-SUB pistik on loodud nõudlike rakenduste jaoks, eriti karmides tingimustes. Peamised omadused hõlmavad kompaktset SlimCon disaini, jootmist kindla ja vastupidava ühenduse jaoks, kõrget 1000 V pingetaluvust ja laia töötemperatuurivahemikku -40 °C kuni +105 °C. See pistik on loodud taluma 500 paaritumistsüklit ning pakub IP67 kaitset tolmu ja vee sissetungi eest, tagades usaldusväärse töö keerulistes tingimustes. Võimsusega 20 A ja signaaliga 7,5 A on see pistik sobiv mitmesuguste tööstus- ja automatiseerimisrakenduste jaoks.
General Data

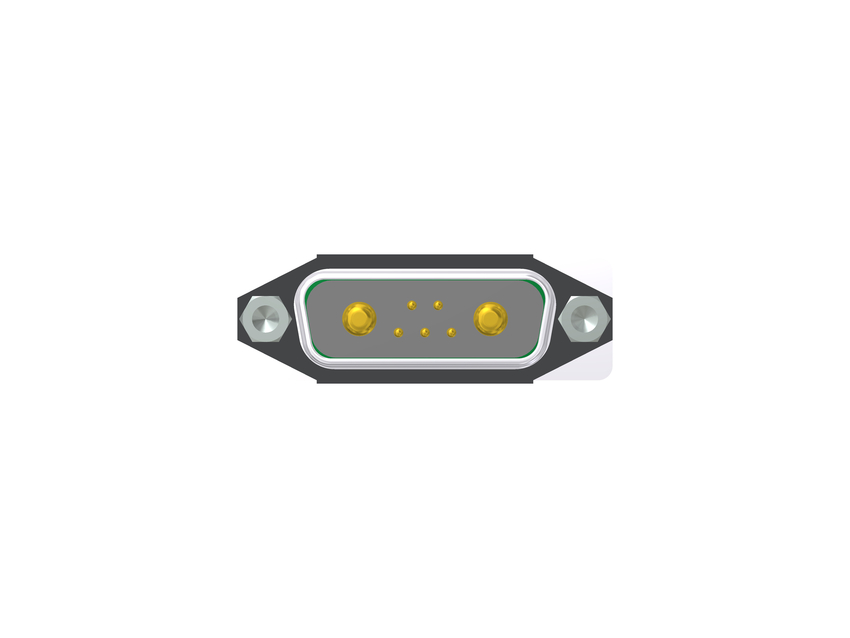

Product typeIP67 D-SUB Combination CONEC SlimCon
Contact typePlug
Size/Number of positions7W2 [○•••••○]
Termination signal [e.g. clamp, crimp, solder, SMT]Solder pin straight
Termination power contactSolder pin straight
Hardware options termination sideThreaded Insert
PCB fasteningThreaded rear spacer with clip
Hardware options mating sideThreaded insert
Thread typeUNC 4-40
Mounting styleStraight
Technical Data
Dielectric with standing voltage signal1000 V
Dielectric with standing voltage power1000 V
min. working temperature-40° C
max. working temperature+105° C
Working voltage signal250 V
Working voltage power250 V
Quality classQuality class 3
Mating cycles50
IP ratingIP67 in connected condition
Current rating signal5 A
Current rating power20 A
Power resistance standard1 mOhm
Material Data
Insulator materialPBT GF UL 94 V-0
Insulator colorGreen
Shell materialZinc die cast
Shell platingNickel
Signal contact materialCopper alloy
Plating signal contact (termination area)Gold over nickel
Plating signal contact (mating area)Gold over nickel
Material power contactCopper alloy
Plating power contact (mating area)Gold over nickel
Plating power contact (termination area)Tin plated
Mounting option materialStainless Steel
Specifications
Standard mating cyclesDIN41652
Standard dielectric voltageIEC664-1
Standard working voltageDIN41652
