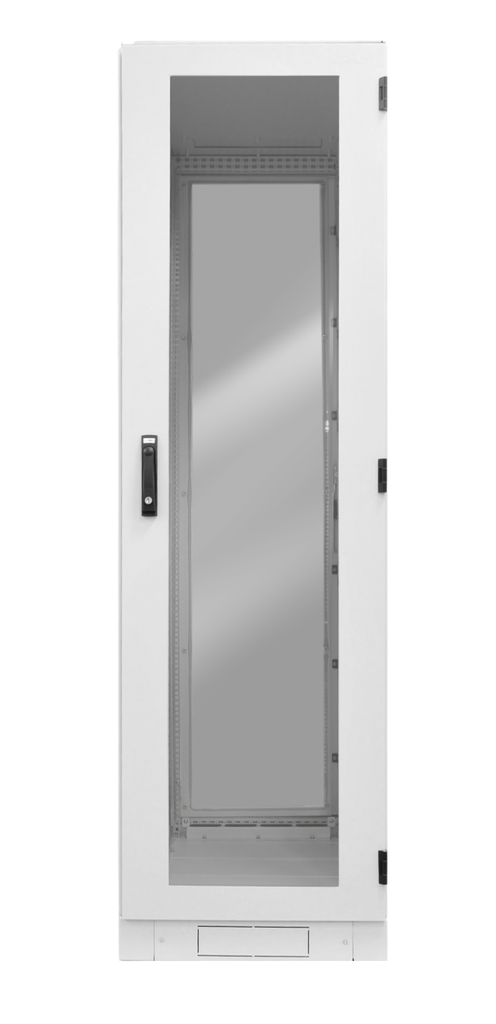

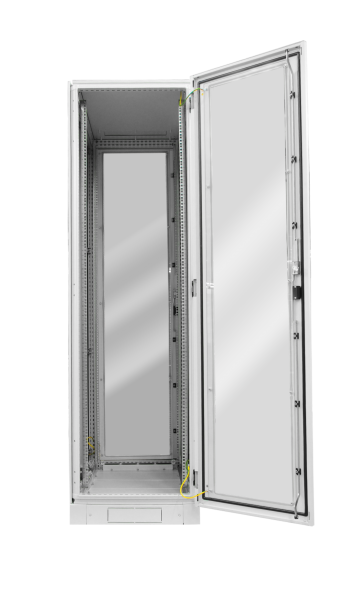

Tööstuslik seadmekapp IP54 42U 2086x800x800 k,l,s, klaasuks, sokkel, üks külgsein, hall

Application

For indoor installation
Protection of mounted active and passive devices against unauthorized access
Protection of mounted devices against adverse ambient factors (dust, oil, etc.)

Standards

RoHS – Restriction of dangerous substances penetrating to the environment from electrical and electronic equipment waste
EN ISO 9001:2008 – Quality management
EN ISO 14001:2004 - Environmental management
PN-EN 60529 – Degrees of protection provided by enclosures (IP code)

Features

Two sets of 19” 42U mounting profiles
Removable sectional floor with a foam-sealed cable penetration
Three point closing system
Handles with inserts, code 1333
One side wall included (second wall: optional accessory)
100mm tall pedestal with knock-out cable penetration blanks
Max. static load : 1500kg
The door can be mounted right and left
The ability to connect cabinets in series after the use of dedicated mounting elements
Roof with blanc for a foam-sealed cable penetration and lifting lug installation
Door opening angle: ca. 270°
All parts electrically bonded

Construction

Galvanised steel sheet
Steel section frame
Metal sheet/glass front/back door
Two component polyurethane gasket (hot melt foamed-in-place)
RAL7035 colour
IP54 protection degree

1 587,00 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

PI_110A26xx_01.17.pdf

Manufacturer Part Number: 110A2614
Tootekood: EE-100-172-858

Spetsifikatsioon

Weight

120 kg
