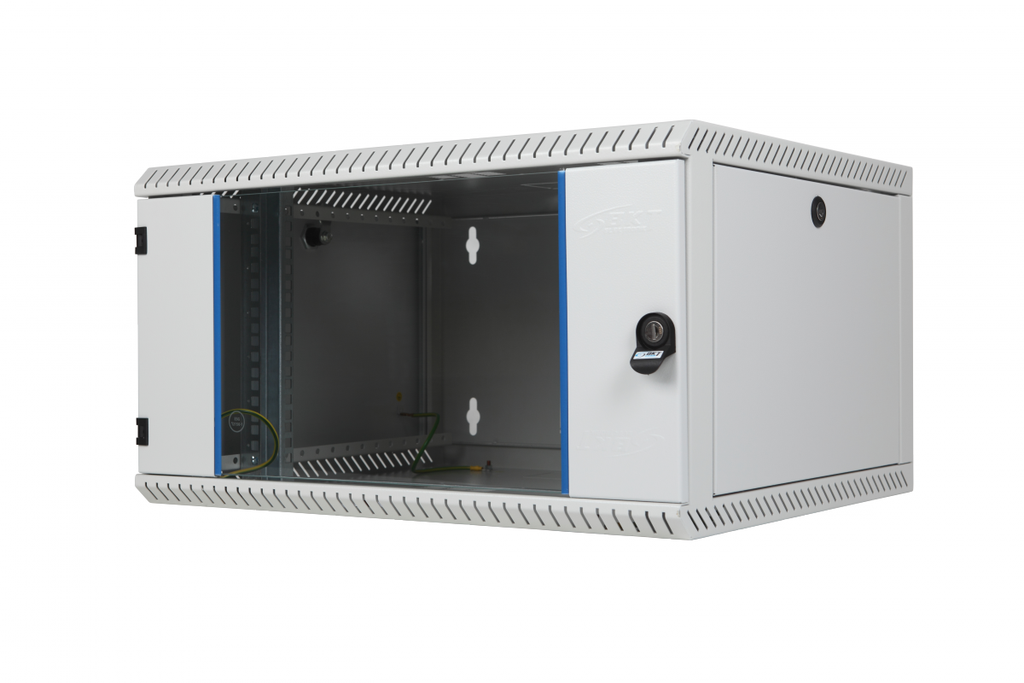

Mõõdud: 6U, kõrgus: 330mm, laius: 600mm, sügavus: 500mm
Materjal: Lehtteras
Uks: Klaasuks ees
Kandevõime: kuni 50kg
Värv: hall, RAL 7035
Standard: IP20
Komplektis: läbiviigu harjased, M6 kruvid ja mutrid (16tk), 19" rööpapaar ees, uksevõti 2tk
-
Sheet steel housing with welded frame, completely pre-assembled, self ventilated,
-
Surface finish: powder painted in RAL 7035 - light grey (Application of other colors on request),
-
Protection IP20 in accordance with PN 92/E-08106 / EN 60 529 / IEC 529. (doesn't apply to brush cable entries), For indoor use,
-
Pre-assembled for mounting of fans in base plate and top (Ventilation Module 1 x Fan for wall mounting cabinets -24011100),
-
Cables let in entry optionally either from roof or base, or through top or bottom of the rear side of cabinet, pre-punched opening (Dimensions: 250 x 70 mm),
-
Front door: with window made of safety glass (optionally: full steel), opening angle 180 degrees, lockable with latch.
-
Door stop possible on the right and left side, Removable and lockable side walls,
-
Front door and side walls earthed on the inside.
-
Profile rails positioned on the inside front , width 482,6 mm (19”), depth adjustable.
-
Horizontal profile rails with 25 mm. hole spacing for fixing and depth adjustment of the 19” profile rails.
-
Minimum distance from the front door and front profile rails - 31,5 mm.
-
Cabinet can be equipped with additional rear adjustable 19” mounting profiles,
-
Maximum spacing between front and rear profile rails:
- Cabinet depth 400 mm - max 335 mm
- Cabinet depth 500 mm - max 435 mm
- Cabinet depth 600 mm - max 535 mm
-
Wide range of supplementary accessories: shelves, fan units, light units, power distribution units, blanking covers, cable management accessories etc,
-
Delivery in secure transport carton.
