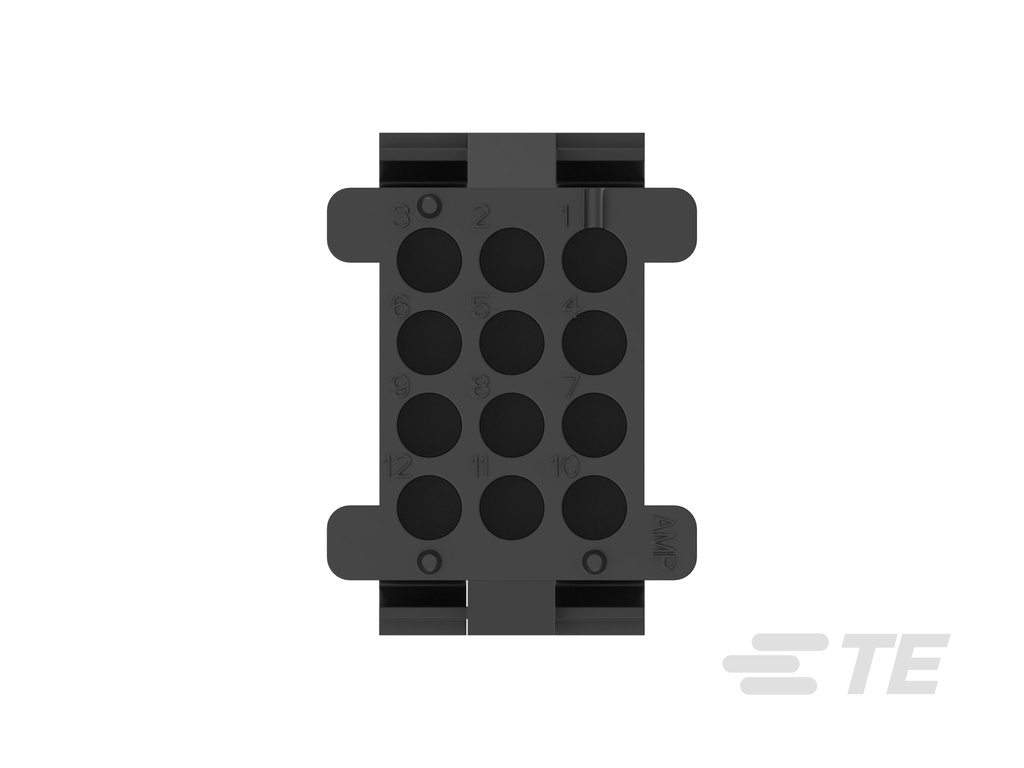

See must, 12-positsiooniline ja 4-realine pistikupesa korpus on mõeldud mitmekülgseteks toite- ja signaalirakendusteks (juhtmelt-plaadile, juhtmelt-paneelile ja juhtmelt-juhtmele), aktsepteerides 26-18 AWG juhtmeid. Sellel on 4,2 mm samm, polariseerimisega positiivne lukustus ja maksimaalne voolutugevus 9A. Korpus on valmistatud UL 94V-0 reitinguga PA 66-st, töötab vahemikus -55°C kuni 85°C ning on UL/CSA poolt tunnustatud.
Product Type Features
Connector Product Type : Housing
Connector & Housing Type : Plug
Connector System : Wire-to-Board | Wire-to-Panel | Wire-to-Wire
Sealable : No
Connector & Contact Terminates To: Wire & Cable
Configuration Features
Number of Positions : 12
Number of Rows : 4
Number of Power Positions : 0
Number of Signal Positions : 12
Electrical Characteristics
Operating Voltage (VAC): 250
Body Features
Primary Product Color : Black
Contact Features
Contact Layout : Matrix
Contact Retention Within Housing : With
Contact Type : Socket
Contact Current Rating (Max) (A): 9
Termination Features
Termination Method to Wire & Cable : Crimp
Mechanical Attachment
Panel Mount Feature : Without
Mating Alignment : With
Mating Alignment Type : Polarization
Mating Retention Type : Positive Lock
Mating Retention : With
Connector Mounting Type : Panel Mount
Housing Features
Centerline (Pitch) : 4.2 mm [ .165 in ]
Housing Material : PA 66
Dimensions
Connector Length : 21.34 mm [ .84 in ]
Connector Height : 12.95 mm [ .51 in ]
Connector Width : 25.53 mm [ 1.17 in ]
Compatible Insulation Diameter Range : 2.92 mm [ .115 in ]
Panel Thickness (Recommended) : 1.73 mm [ .068 in ]
Row-to-Row Spacing : 4.19 mm [ .165 in ]
Wire Size (AWG): 26 – 18
Wire Size (mm²): .12 – .8
Usage Conditions
Operating Temperature Range :-55 – 85 °C [ -67 – 185 °F ]
Operation/Application
Circuit Application :Power & Signal
Industry Standards
CSA Rating : LR 7189
Compatible With Approved Standards Products : UL E28476
UL Rating : Recognized
Compatible With Agency/Standards Products : CSA | UL
UL Flammability Rating : UL 94V-0
Glow Wire Rating :Standard Part - Not Glow Wire
Packaging Features
Packaging Quantity : 800
Packaging Method : Box
