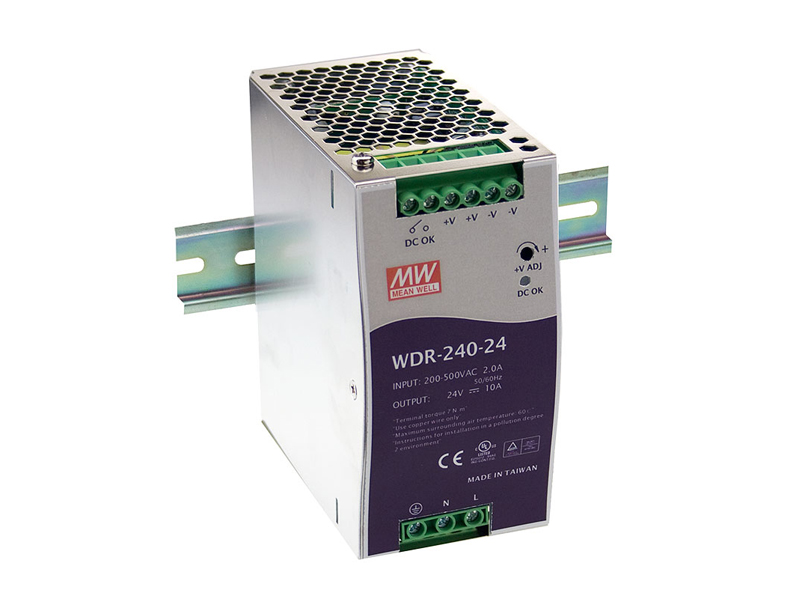

DIN rail power supply 240W 24V 10A

Technical data		Information
Brand	Mean Well	Commodity	8504409090
Item number	WDR-240-24	Warranty pack	36 Months Bring-In
Series	WDR-240	RoHS	Compliant
Description	AC-DC Industrial DIN rail power supply; Output 24Vdc at 10A; metal case; Ultra wide input 180-550Vac for single and 3-phase mains network	Packing quantity	12
Application	Installation UL 508 ITE EN/UL/IEC 60950	Net weight (gram)	1080
Technology	AC/DC
Power Format	DIN rail
Output Power (W)	240
Output Voltage (V)	24
Output Current (A)	10
Input Voltage (V)	180 - 550
IP Rating	No IP assigned
Width (mm)	63
Height (mm)	125.2
Depth (mm)	113.5
Control Signals	DC OK
Dimming Technology	No Dimming

102.60 € (Tax excluded)

Terms and Conditions
Prices exclude VAT.

Documents

WDR series-E.pdf WDR-240-spec.pdf

Manufacturer Part Number: WDR-240-24
Internal Reference: EE-100-184-934
