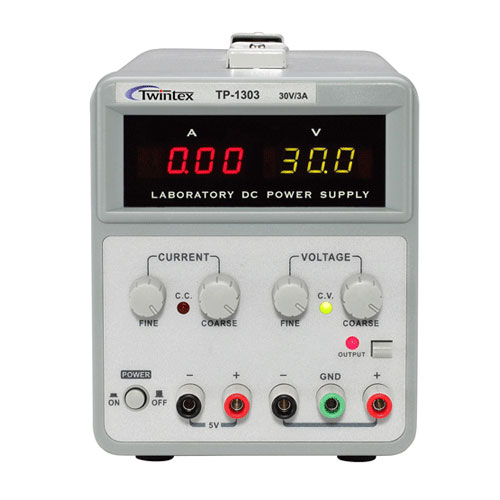

2-CH. LABORATORY POWER SUPPLY 0-60V/0-3A, 5V/1A

Model		TP-1303	TP-1305	TP-1603
Output		0~30V/0~3A, fixed 5V/1A	0~30V/0~5A, fixed 5V/1A	0~60V/0~3A, fixed 5V/1A
Constant voltage operation
Line regulation		≤0.01%+3mV
Load regulation		≤0.01%+3mV	≤0.02%+5mV	≤0.01%+3mV
Ripple & Noise		≤2mVrms
Constant current operation
Line regulation		≤0.2%+3mA
Load regulation		≤0.2%+3mA
Fixed output
Output voltage		5V±1%
Output current		1A
Ripple & noise		≤2mVrms
Protection		Over load and reverse polarity protections
Display
Voltmeter		3 digits LED display
Ammeter		3 digits LED display
Resolution		100mV/10mA
Accuracy	Voltage	±(0.5% reading+2digits)
	Current	±(1% reading+2digits)
Protection		Over load and reverse polarity protections
Power source		AC110V, AC220V or AC110V/220V±10%, 50/60Hz
Operating environment		0?~40?, ≤80%RH
Storage environment		-10?~70?, ≤70%RH
Accessories		Power cord x1, Operation manual x1, Test lead x1

171.00 € (Tax excluded)

Terms and Conditions
Prices exclude VAT.

Manufacturer Part Number: TP-1603
Internal Reference: EE-100-189-692
