ncluded in delivery:
-
brush strip
-
set of M6 assembly bolts (16 pcs)
-
set of floor-leveller feet
-
1,5 m edge sealing
-
2 pairs of 19’’ mounting sections
Basic version ensures optimum installation and configuration. Welded structure ensures safety of use even at maximum load. Used primarily as a network cabinet/distribution point.
-
Protection IP20 in accordance with PN 92/E-08106/EN 60529/IEC 529. (does not apply to brush cable entries),
-
Indoor use, .
-
Cabinets can be arranged in line using line-up bolts after removing side walls (Part No.11190130)
-

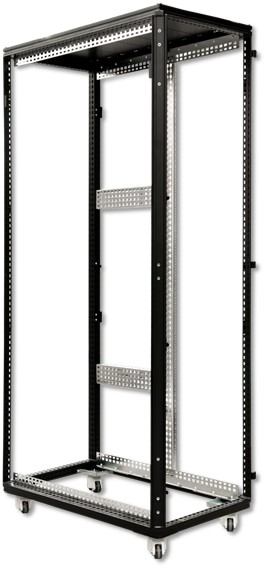

Cabinet frame fully welded - 1,5 mm thick sheet steel on 4 x leveling feet M10.
-
Two pairs of the profile rails (AL-Zn coated) each arranged at the front and rear on the inside. Each profile with unit labeling,
Maximum spacing between front and rear profile rails:
- cabinet depth 600 mm - max 472 mm
- cabinet depth 800 mm - max 672 mm
- cabinet depth 900 mm - max 772 mm
- cabinet depth 1000 mm - max 872 mm
-
Possibility to increase maximum weight of equipment mounted in the cabinet SRS by using cabinet max load strengthen kit,
-
Cables let in entry optionally either from roof or base, either, through top or bottom of the rear side of cabinet, pre-punched opening (Dimensions: 450 x 90 mm),
-
In the roof and base of cabinet 2 x 4U blind plates (pre - punched opening) for fan units (possible configurations 1 or 2 x 2 fan units, 1 x 4 fan units, 1 x 6 fan units)
