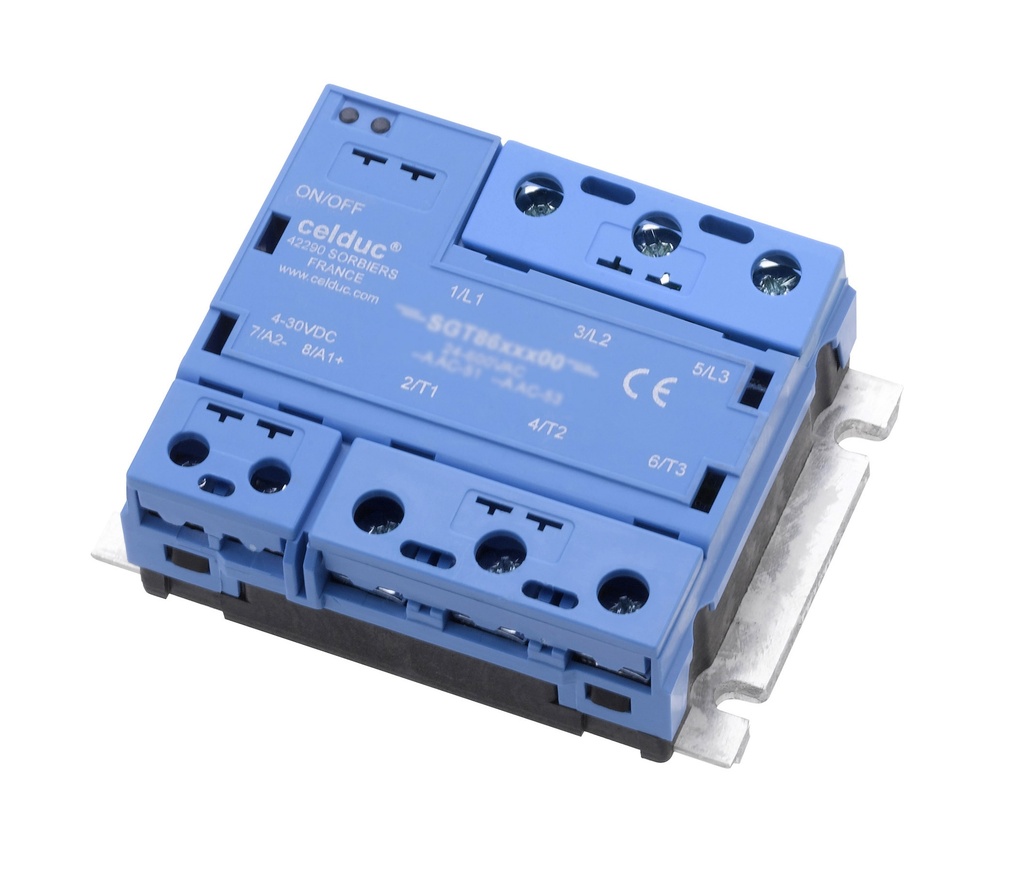

NZC THREE PHASE SSR 2X50A/24-520VAC/CTRL 4-30VDC

NZC THREE PHASE SSR 2X50A/24-520VAC/CTRL 4-30VDC

Kogege täpset juhtimist ja usaldusväärset toimimist meie SGT7650500 kolmefaasilise SSR SYNCH-iga. See tõhususele suunatud tahkisrelee sisaldab tugevat 3x50A türistori hinnangut, tagades sujuva vahelduvvoolu juhusliku sisse/välja lülitamise pingevahemikus 24-520VAC. Ideaalne erinevatele rakendustele, sealhulgas mootorid, hõõglambid, infrapunakiirgurid, LEDid ja trafod. Vastab CE, EAC, UKCA ja UL standarditele, tagades usaldusväärse toimimise tööstuskeskkondades.
Specifications:
Type: Three-phase SSR - Random - with output protection
Thyristor Rating: 3x50A
Max. Switching Current (A):
3x12A AC-3 @40°C
3x42A AC-1 @40°C
Type of Mounting: To screw
Number of Poles: 3 - Three-phase
Function: AC on/off Random
Switching Voltage Rate: 24-520VAC
Control Voltage Rate: 4-30VDC

Standards:
CE
EAC
UKCA
UL (cURus)

Features:
Series: SGT 2G
Type of Relay (AC or DC): AC
Output Protection Type:
RC
VDR
Heatsink Included: NO
Terminals (Power): Screws
Housing Type: Standard

Applications:
AC-3 / LC B: Motors
AC-5a / LC D: Incandescent light bulbs and infrared lamps
AC-5b / DC-6: LEDs
AC-6a / LC E: Transformers
286.81 € 286.81 € (Tax excluded)

  • Min thyristor rating per phase (A)
  • Relay application
  • Relay control voltage nominal
  • Relay enclosure
  • Relay function
  • Relay heatsink
  • Relay max switching current per phase 40c a
  • Relay number of poles
  • Relay output protection type
  • Relay standards
  • Relay switching voltage
  • Relay terminals
  • Relay type AC DC
  • Relay type of mounting
  • Weight
Add to cart
Add to wishlist
Terms and Conditions
Prices exclude VAT.
Documents
FT_SGT7650500.pdf IS_SG.pdf UE SG-SV-SM.pdf

Manufacturer Part Number: SGT7650500
Internal Reference: EE-100-188-018

Specifications

Relay application Ac 3 lc b motors, Ac 5a lc d incandescent light bulbs and infrared lamps, Ac 5b dc 6 leds, Ac 6a lc e transformers
Relay control voltage nominal 24 VDC, 5/12/24 VDC
Relay output protection type Rc, VDR
Relay standards CE, EAC, UKCA, UL cURus
Relay switching voltage 110/120 VAC, 230 VAC, 400 VAC, 480 VAC
Min thyristor rating per phase (A) 50 59 (Min thyristor rating per phase (A))
Relay enclosure Standard (Relay enclosure)
Relay function Ac on off random
Relay heatsink No (Relay heatsink)
Relay max switching current per phase 40c a 40 49 (Relay max switching current per phase 40c a)
Relay number of poles Three phase
Relay terminals Screws
Relay type AC DC AC
Relay type of mounting Screw (Relay type of mounting)
Weight 0.32 kg
